20028 - Toro Recycler Walk-Behind Mower (SN: 210000001 - 210999999) (2001) ENGINE BRIGGS & STRATTON MODEL 12J802-2369-B1 Parts Diagram

Recycler Walk-Behind Mower

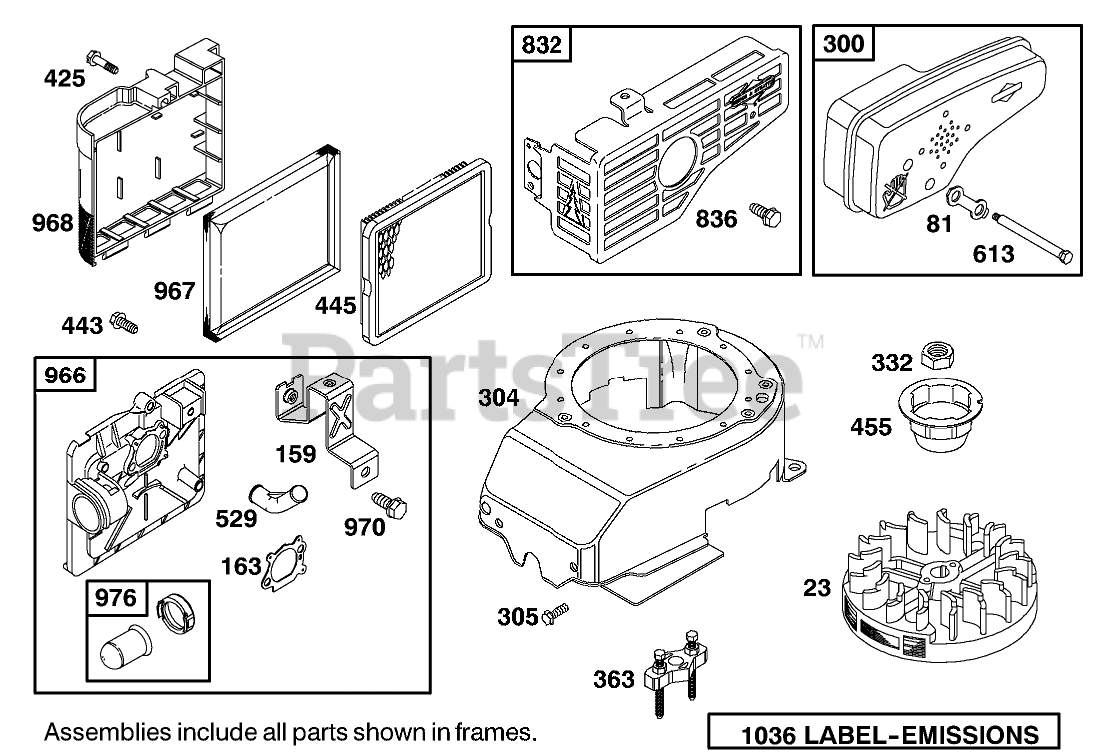

ENGINE BRIGGS & STRATTON MODEL 12J802-2369-B1 Parts Diagram

  • Title

23

Briggs & Stratton 692315

Flywheel
(Superseded to 691987)

$112.99

$

In Stock, only 1 left!

0

81

Briggs & Stratton 691740

Lock-Screw, Muffler

$5.49

$

In Stock, only 1 left!

0

163

Briggs & Stratton 272653

Gasket-Cleaner, Air
(Superseded to 795629)

Note: Included in Engine Gasket Set-Ref. 358.

$3.49

$

In Stock, Qty 20+

0

163

Briggs & Stratton 272653

Gasket-Cleaner, Air
(Superseded to 795629)

Note: Included in Carburetor Gasket Set-Ref. 977

$3.49

$

In Stock, Qty 20+

0

163

Briggs & Stratton 272653

Gasket-Cleaner, Air
(Superseded to 795629)

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$3.49

$

In Stock, Qty 20+

0

159

Briggs & Stratton 691753

Primer Bracket-Air Cleaner
(Superseded to 795259)

$32.99

$

In Stock, Qty 12

0

300

Briggs & Stratton 694048

Muffler

$24.99

$

Usually ships in 2-12 days

0

304

Briggs & Stratton 694092

Blower Housing

$68.99

$

Usually ships in 2-12 days

0

305

Briggs & Stratton 691108

Screw

$3.49

$

In Stock, Qty 20+

0

332

Briggs & Stratton 690662

Nut

$5.99

$

In Stock, Qty 8

0

363

Briggs & Stratton 19069

Puller-Flywheel

$23.99

$

In Stock, only 2 left!

0

425

Briggs & Stratton 690670

Screw

$5.99

$

In Stock, Qty 5

0

443

Briggs & Stratton 692523

Screw

$7.49

$

In Stock, Qty 11

0

445

Briggs & Stratton 491588

Filter-Air Cleaner, Cartridge
(Superseded to 491588S)

$6.49

$

In Stock, Qty 20+

0

455

Briggs & Stratton 691219

Cup-Flywheel
(Superseded to 695161)

$37.99

$

Usually ships in 2-12 days

0

529

Briggs & Stratton 691923

Grommet

$9.49

$

In Stock, only 4 left!

0

613

Briggs & Stratton 691114

Screw (Muffler)

$5.99

$

Usually ships in 2-12 days

0

832

Briggs & Stratton 497683

Guard-Muffler

$54.99

$

Usually ships in 2-12 days

0

836

Briggs & Stratton 690664

Screw

$5.49

$

In Stock, Qty 5

0

966

Briggs & Stratton 496116

Base-Primer, Air Cleaner
(Superseded to 795259)

$32.99

$

In Stock, Qty 12

0

967

Briggs & Stratton 493537

Filter Pre-Cleaner
(Superseded to 493537S)

$6.49

$

In Stock, Qty 20+

0

968

Briggs & Stratton 692298

Cover-Cleaner, Air

$27.99

$

In Stock, only 3 left!

0

970

Briggs & Stratton 691669

Screw (Air CleanerPrimer Bracket)

$3.99

$

In Stock, only 1 left!

0

976

Briggs & Stratton 496115

CarburetorPrimer
(Superseded to 694395)

$4.49

$

In Stock, Qty 20+

0

1036

Briggs & Stratton 695111

Label-Emissions

$3.49

$

Usually ships in 2-12 days

0
