20030 (SR-21 P) - Toro 21" Super Recycler Walk-Behind Mower (SN: 099000001 - 099999999) (1999) HANDLE & CONTROLS ASSEMBLY Parts Diagram

21" Super Recycler Walk-Behind Mower

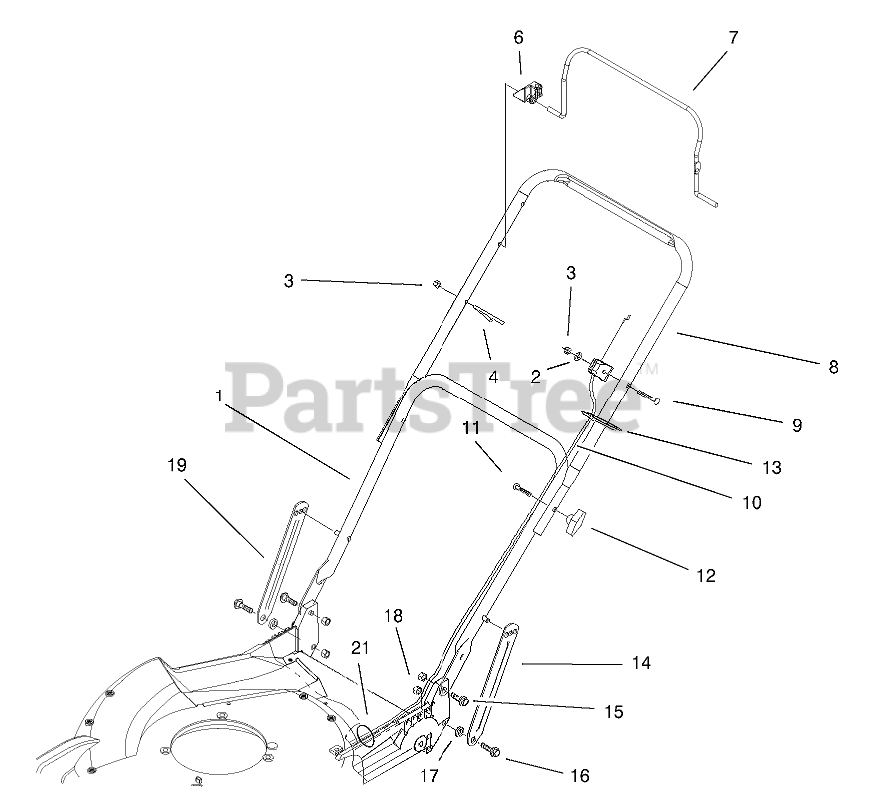

HANDLE & CONTROLS ASSEMBLY Parts Diagram

  • Title

1

Toro 82-5531-05

LOWER HANDLE ASM
(Superseded to 82-5530)

$

$

Not available

2

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

3

Toro 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, Qty 20+

0

4

Toro 86-9671

GUIDE-ROPE

$4.49

$

In Stock, Qty 18

0

6

Toro 94-6097

STOP

$9.49

$

Usually ships in 3-6 days

0

7

Toro 99-1570

Bail-Brake
(Superseded to 99-1570-03)

$

$

Not available

8

Toro 99-6017-05

HANDLE-UPPER

$73.99

$

Usually ships in 3-6 days

0

9

Toro 95-4453

SCREW

$3.49

$

In Stock, Qty 20+

0

10

Toro 99-5288

CABLE-BRAKE

$42.99

$

In Stock, only 1 left!

0

11

Toro 92-2260

SCREW-HANDLE

$3.99

$

In Stock, Qty 20+

0

12

Toro 98-7134

KNOB-HANDLE

$2.99

$

In Stock, Qty 20+

0

13

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 14

0

14

Toro 84-8361-03

Latch-Handle
(Superseded to 100-3298-03)

$9.49

$

In Stock, only 2 left!

0

15

Toro 27-7211

SCREW-SHOULDER

$5.49

$

In Stock, only 4 left!

0

16

Toro 27-7210

SCREW-SHOULDER

$7.99

$

In Stock, Qty 5

0

17

Toro 3-3287

SPACER

$5.49

$

In Stock, only 4 left!

0

18

Toro 3296-72

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

19

Toro 84-8401-03

Latch-Handle
(Superseded to 100-3297-03)

$9.49

$

In Stock, only 2 left!

0

21

Toro 3290-381

TIE-CABLE

$0.99

$

In Stock, Qty 7

0
