20033 - Toro Super Recycler Walk-Behind Mower (SN: 220000001 - 220999999) (2002) ENGINE AND BLADE ASSEMBLY Parts Diagram

Super Recycler Walk-Behind Mower

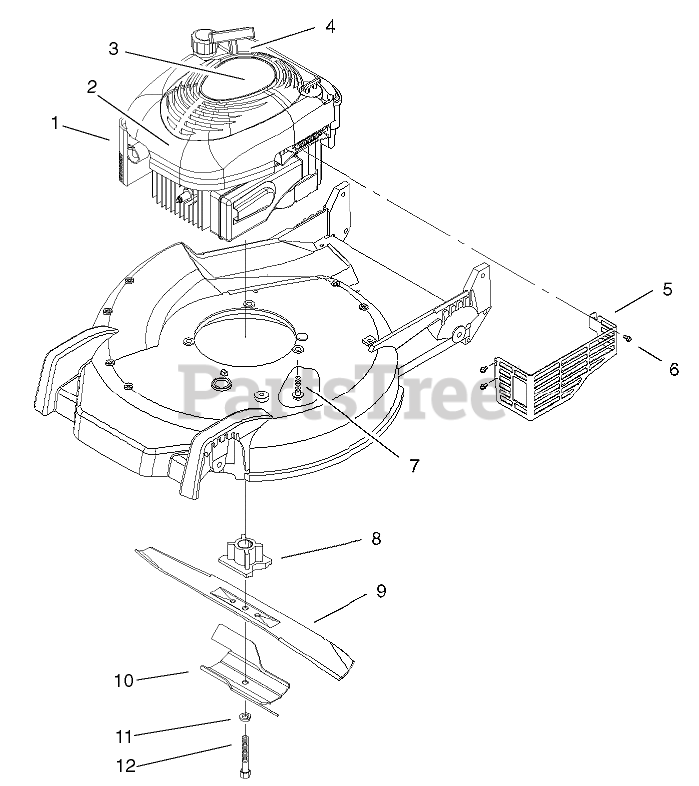

ENGINE AND BLADE ASSEMBLY Parts Diagram

  • Title

1

Engine-Quantum 6.5 Briggs and Stratton Model 124k02-0110-B1 Or

Note: Not serviced separately

$

$

Not available

1

Engine-Quantum 6.5 Briggs and Stratton Model 123k02-0114-E1

Note: Not serviced separately

$

$

Not available

2

Toro 98-3206

Decal

$2.49

$

In Stock, only 2 left!

0

3

Toro 105-8570

Decal-Recoil

$10.99

$

Usually ships in 3-6 days

0

4

Toro 2210-316

STOP-ROPE

$8.49

$

Usually ships in 3-6 days

0

5

Toro 104-7577-03

SHIELD-MUFFLER

$27.99

$

Usually ships in 3-6 days

0

6

Toro 32144-1

SCREW-TAPTITE

$3.99

$

In Stock, Qty 20+

0

7

Toro 32144-102

SCREW-HWH

$3.99

$

Usually ships in 3-6 days

0

8

Toro 104-1007

RETAINER-BLADE

$77.99

$

Usually ships in 3-6 days

0

9

Toro 93-4106-03

BLADE
(Superseded to 133-8183-03)

$23.99

$

In Stock, Qty 20+

0

10

Toro 94-1608-03

ACCELERATOR-BLADE
(Superseded to 105-6848-03)

$19.99

$

In Stock, Qty 5

0

11

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

12

Toro 95-1748

SCREW-BLADE
(Superseded to 105-8629)

$21.99

$

In Stock, only 4 left!

0
