20033 - Toro Super Recycler Walk-Behind Mower (SN: 230000001 - 230999999) (2003) Engine and Blade Assembly Parts Diagram
Super Recycler Walk-Behind Mower

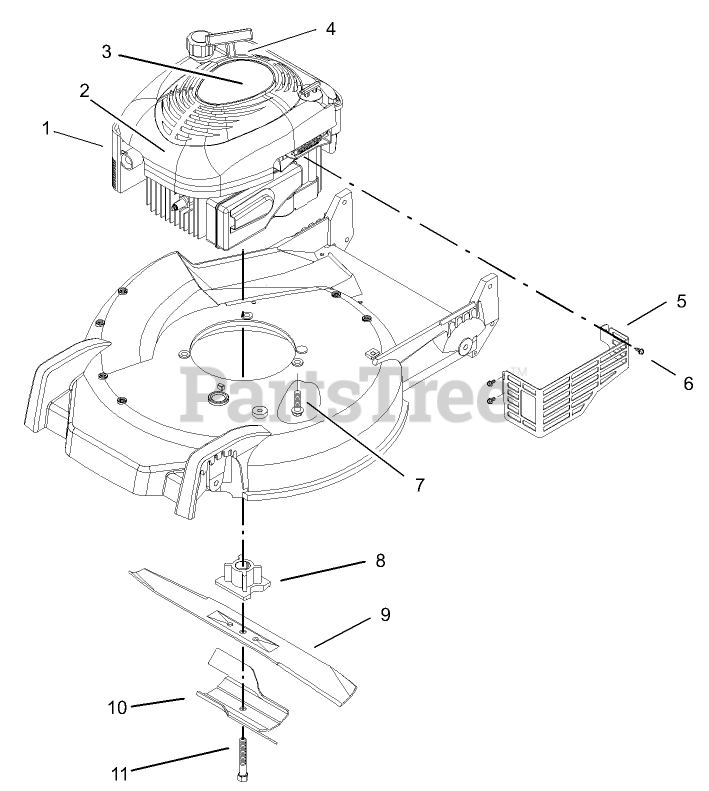

Engine and Blade Assembly Parts Diagram
1
Loose Parts Package
Note: Not serviced separately
$
$
Not available
Toro 98-3206
DECAL
$2.49
$
In Stock, only 2 left!
Toro 105-8570
DECAL-RECOIL
$10.99
$
Usually ships in 3-6 days
Toro 2210-316
STOP-ROPE
$8.49
$
Usually ships in 3-6 days
Toro 104-7577-03
SHIELD-MUFFLER
$28.99
$
In Stock, only 2 left!
Toro 32144-1
SCREW-TAPTITE
$3.99
$
In Stock, Qty 19
Toro 32144-102
SCREW-HWH
$3.99
$
In Stock, Qty 5
Toro 104-1007
RETAINER-BLADE
$79.99
$
Usually ships in 3-6 days
$23.99
$
In Stock, Qty 20+
$19.99
$
In Stock, only 1 left!
$3.99
$
In Stock, Qty 20+
