20035 (R-21 SE) - Toro 21" Recycler Walk-Behind Mower (SN: 210000001 - 210999999) (2001) ENGINE ASSEMBLY Parts Diagram

21" Recycler Walk-Behind Mower

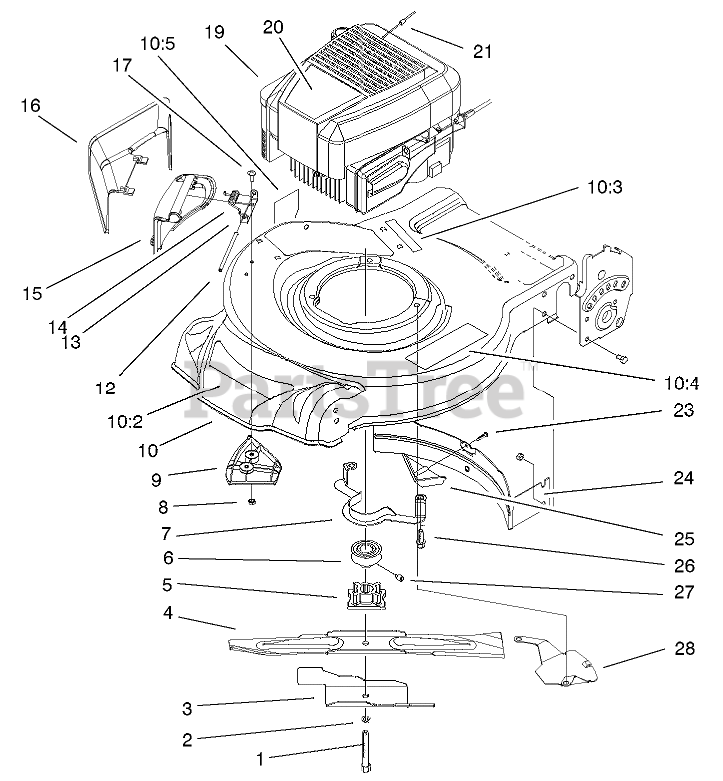

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 95-1748

SCREW-BLADE
(Superseded to 105-8629)

$21.99

$

In Stock, only 4 left!

0

2

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

3

Toro 93-0219-03

ACCELERATOR

$43.99

$

In Stock, only 4 left!

0

4

Toro 93-0241-03

BLADE-STEEL DECK

$42.99

$

In Stock, Qty 5

0

5

Toro 104-1008

RETAINER-BLADE

$94.99

$

Usually ships in 3-6 days

0

6

Toro 95-1878

PULLEY

$67.99

$

In Stock, only 2 left!

0

7

Toro 92-1024-03

GUIDE-BELT

$

$

Not available

8

Toro 32128-32

NUT-HHF

$3.49

$

In Stock, Qty 20+

0

9

Toro 99-6349

BAFFLE

$25.99

$

Usually ships in 3-6 days

0

10

Toro 99-5236

HOUSING SP

$506.99

$

Usually ships in 3-6 days

0

10:2

Toro 99-6011

DECAL - DECK

$20.99

$

Usually ships in 3-6 days

0

10:3

Toro 99-6018

DECAL-WARNING

$2.99

$

Usually ships in 3-6 days

0

10:4

Toro 93-0248

DECAL-WARNING
(Superseded to 104-8589)

$7.99

$

Usually ships in 3-6 days

0

10:5

Toro 43-8480

DECAL-DANGER

$7.49

$

In Stock, Qty 6

0

12

Toro 99-5291

ROD-COVER
(Superseded to 136-8672)

$3.49

$

In Stock, Qty 20+

0

13

Toro 99-5292

BRACKET-COVER
(Superseded to 119-7079)

$14.99

$

In Stock, only 2 left!

0

14

Toro 99-5293

SPRING-TORSION

$11.99

$

In Stock, Qty 20+

0

15

Toro 99-5294

COVER-SIDE

$23.99

$

Usually ships in 3-6 days

0

16

Toro 99-5295

CHUTE-SIDE

$16.99

$

In Stock, only 2 left!

0

17

Toro 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

19

Engine-Quantum Xl Briggs & Stratton Model 12j805-2370-B1

Note: Not serviced

$

$

Not available

20

Toro 99-6336

DECAL - RECOIL - QUIET I/C

$

$

Not available

21

Toro 2210-316

STOP-ROPE

$8.49

$

Usually ships in 3-6 days

0

23

Toro 93-0231

SCREW-PPH

$0.99

$

In Stock, Qty 19

0

24

Toro 93-0223-03

BAFFLE-REAR

$31.99

$

In Stock, only 1 left!

0

25

Toro 93-0217

KICKER-REAR

$

$

Not available

26

Toro 95-1726

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

27

Toro 104-0214

SCREW-SET
(Superseded to 105-8875)

$12.99

$

Usually ships in 3-6 days

0

28

Toro 93-4196-03

SHIELD-GRASS

$16.99

$

In Stock, only 3 left!

0
