20036 - Toro Super Recycler Walk-Behind Mower (SN: 240000001 - 240999999) (2004) CRANKCASE ASSEMBLY Parts Diagram

Super Recycler Walk-Behind Mower

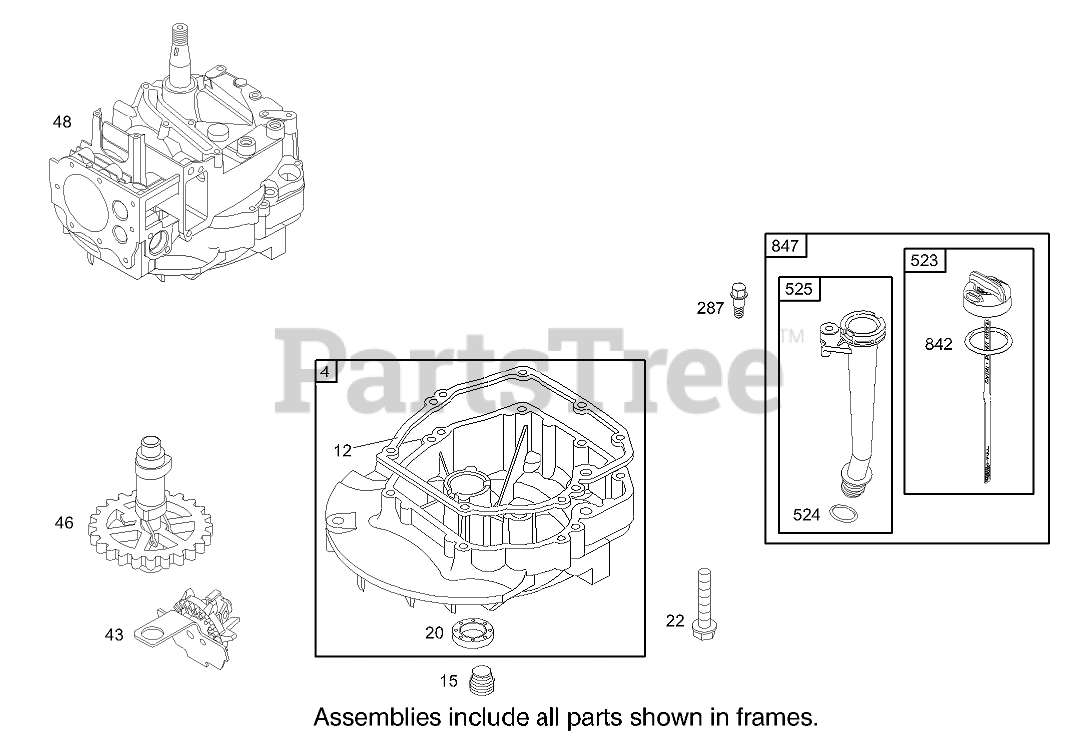

CRANKCASE ASSEMBLY Parts Diagram

  • Title
4

Briggs & Stratton Part# 493279

Sump-Engine

Note: Obtain parts from www.briggsandstratton.com

Usually ships in 1 day

$

$95.02

0

12

Briggs & Stratton Part# 692232

Gasket-Crankcase

Note: Obtain parts from www.briggsandstratton.com

Usually ships in 6 to 12 days

$

$4.91

0

12

Briggs & Stratton Part# 692232

Gasket-Crankcase

Note: Included in Engine Gasket Set-Ref. 358.

Usually ships in 6 to 12 days

$

$4.91

0

15

Briggs & Stratton Part# 691680

Plug-Drain, Oil

Note: Obtain parts from www.briggsandstratton.com

Usually ships in 1 day

$

$4.35

0

20

Briggs & Stratton Part# 399781

Seal-Oil
(Superseded to 399781S)

Note: Obtain parts from www.briggsandstratton.com

Usually ships in 1 day

$

$6.59

0

20

Briggs & Stratton Part# 399781

Seal-Oil
(Superseded to 399781S)

Note: Included in Engine Gasket Set-Ref. 358.

Usually ships in 1 day

$

$6.59

0

22

Briggs & Stratton Part# 691092

Screw

Note: Obtain parts from www.briggsandstratton.com

Usually ships in 1 day

$

$3.12

0

43

Briggs & Stratton Part# 691997

Slinger-Oil, Governor

Note: Obtain parts from www.briggsandstratton.com

Usually ships in 1 day

$

$20.34

0

46

Briggs & Stratton Part# 691449

Camshaft

Note: Obtain parts from www.briggsandstratton.com

Usually ships in 6 to 12 days

$

$61.48

0

48

Toro Part# 696276

Short Block

Note: Obtain parts from www.briggsandstratton.com

Usually ships same day

Currently unavailable

$

$

287

Briggs & Stratton Part# 690940

Screw

Note: Obtain parts from www.briggsandstratton.com

Usually ships in 1 day

$

$3.34

0

523

Briggs & Stratton Part# 499621

Dipstick

Note: Obtain parts from www.briggsandstratton.com

Usually ships in 1 day

$

$13.52

0

524

Briggs & Stratton Part# 692296

Seal-O Ring

Note: Obtain parts from www.briggsandstratton.com

Usually ships in 1 day

$

$3.79

0

524

Briggs & Stratton Part# 692296

Seal-O Ring

Note: Included in Engine Gasket Set-Ref. 358.

Usually ships in 1 day

$

$3.79

0

525

Briggs & Stratton Part# 495265

Tube-Dipstick

Note: Obtain parts from www.briggsandstratton.com

Usually ships in 1 day

$

$16.54

0

842

Briggs & Stratton Part# 691031

Seal-O Ring

Note: Obtain parts from www.briggsandstratton.com

Usually ships in 1 day

$

$4.35

0

842

Briggs & Stratton Part# 691031

Seal-O Ring

Note: Included in Engine Gasket Set-Ref. 358.

Usually ships in 1 day

$

$4.35

0

847

Briggs & Stratton Part# 692047

Dipstick Tube ASM

Note: Obtain parts from www.briggsandstratton.com

Usually ships same day

Not available

$

$
