20037 - Toro Super Recycler Walk-Behind Mower with Bag (SN: 220000001 - 220999999) (2002) Engine Assembly Parts Diagram

Super Recycler Walk-Behind Mower with Bag

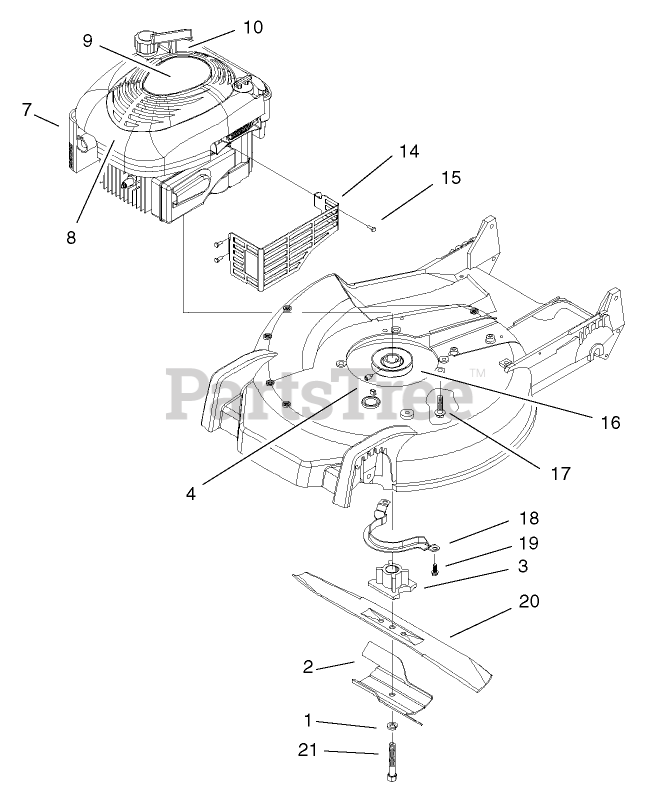

Engine Assembly Parts Diagram

  • Title

1

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 2 left!

0

2

Toro 94-1608-03

ACCELERATOR-BLADE
(Superseded to 105-6848-03)

$19.99

$

Usually ships in 3-6 days

0

3

Toro 104-1007

RETAINER-BLADE

$79.99

$

Usually ships in 3-6 days

0

4

Toro 104-0214

See Supercession: 105-8875
(Superseded to 105-8875)

$12.99

$

Usually ships in 3-6 days

0

7

Loose Parts Package

Note: Not serviced separately

$

$

Not available

7

Loose Parts Package

Note: Not serviced separately

$

$

Not available

8

Toro 98-3206

DECAL

$2.49

$

In Stock, only 2 left!

0

9

Toro 105-8570

DECAL-RECOIL

$10.99

$

Usually ships in 3-6 days

0

10

Toro 2210-316

STOP-ROPE

$8.49

$

Usually ships in 3-6 days

0

14

Toro 104-7577-03

SHIELD-MUFFLER

$28.99

$

In Stock, only 2 left!

0

15

Toro 32144-1

SCREW-TAPTITE

$3.99

$

In Stock, Qty 13

0

16

Toro 95-1878

PULLEY

$69.99

$

In Stock, only 1 left!

0

17

Toro 32144-102

SCREW-HWH

$3.99

$

In Stock, Qty 5

0

18

Toro 66-0570-03

BRACKET-GUIDE, BELT

$15.99

$

In Stock, only 1 left!

0

19

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 7

0

20

Toro 93-4106-03

See Supercession: 133-8183-03
(Superseded to 133-8183-03)

$23.99

$

In Stock, Qty 20+

0

21

Toro 95-1748

See Supercession: 105-8629
(Superseded to 105-8629)

$21.99

$

In Stock, only 4 left!

0
