20038 - Toro Super Recycler Walk-Behind Mower with Bag (SN: 220000001 - 220999999) (2002) Carburetor Assembly Engine Briggs and Stratton Model 122602-0111-E1 Parts Diagram

Super Recycler Walk-Behind Mower with Bag

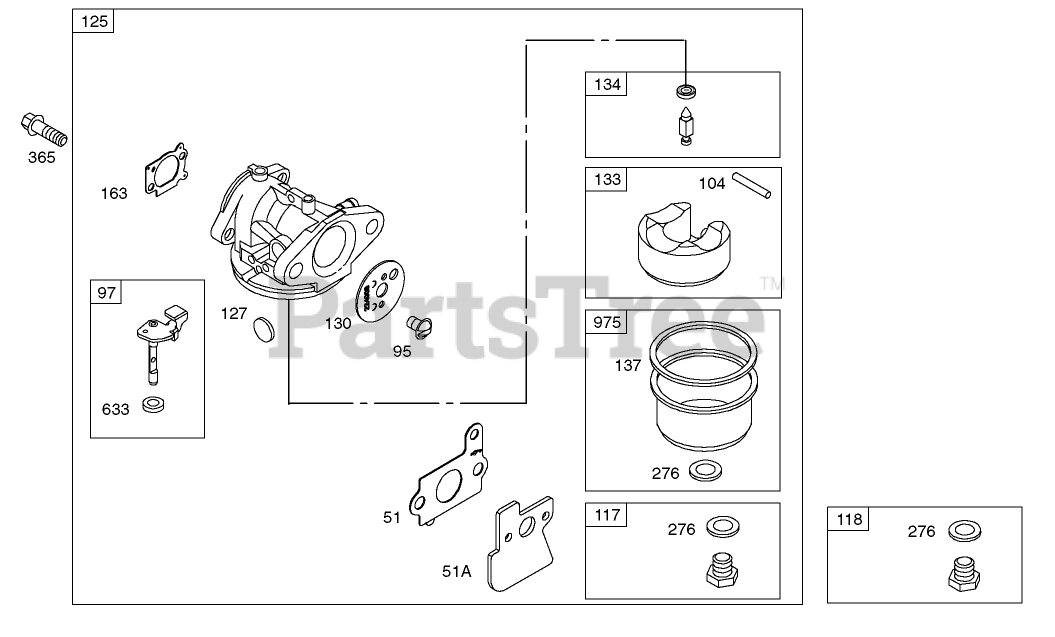

Carburetor Assembly Engine Briggs and Stratton Model 122602-0111-E1 Parts Diagram

  • Title

51

Toro 692668

Gasket-Intake

Note: Included in Carburetor Gasket Set-Ref. 977.

$

$

Currently unavailable

51

Toro 692668

Gasket-Intake

Note: Included in Engine Gasket Set-Ref. 358.

$

$

Currently unavailable

51

Toro 692668

Gasket-Intake

Note: Included in Valve Gasket Set-Ref. 1095.

$

$

Currently unavailable

51

Toro 692668

Gasket-Intake

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Currently unavailable

51A

Toro 692799

Gasket-Intake

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Currently unavailable

51A

Toro 692799

Gasket-Intake

Note: Included in Valve Gasket Set-Ref. 1095.

$

$

Currently unavailable

51A

Toro 692799

Gasket-Intake

Note: Included in Carburetor Gasket Set-Ref. 977.

$

$

Currently unavailable

51A

Toro 692799

Gasket-Intake

Note: Included in Engine Gasket Set-Ref. 358.

$

$

Currently unavailable

95

Toro 691636

Screw

$

$

Currently unavailable

97

Toro 499682

Shaft?Throttle

$

$

Currently unavailable

104

Toro 691242

Pin-Hinge, Float

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Currently unavailable

117

Toro 498978

Jet-Main

$

$

Currently unavailable

118

Toro 498975

Jet?Main

$

$

Currently unavailable

125

Toro 694202

Carburetor

$

$

Currently unavailable

127

Toro 694468

Plug-Welch

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Currently unavailable

130

Toro 691203

Valve?Throttle

$

$

Currently unavailable

133

Toro 398187

Float-Carburetor

$

$

Currently unavailable

134

Toro 398188

Valve-Inlet (Includes Seat)

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Currently unavailable

137

Toro 693981

Gasket-Bowl, Float

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Currently unavailable

137

Toro 693981

Gasket-Bowl, Float

Note: Included in Carburetor Gasket Set-Ref. 977.

$

$

Currently unavailable

163

Toro 691894

Gasket?Cleaner, Air

Note: Included in Valve Gasket Set-Ref. 1095.

$

$

Currently unavailable

163

Toro 691894

Gasket?Cleaner, Air

Note: Included in Engine Gasket Set-Ref. 358.

$

$

Currently unavailable

163

Toro 691894

Gasket?Cleaner, Air

Note: Included in Carburetor Gasket Set-Ref. 977.

$

$

Currently unavailable

163

Toro 691894

Gasket?Cleaner, Air

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Currently unavailable

276

Toro 271716

Washer-Sealing

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Currently unavailable

276

Toro 271716

Washer-Sealing

Note: Included in Carburetor Gasket Set-Ref. 977.

$

$

Currently unavailable

365

Toro 691136

Screw

$

$

Currently unavailable

633

Toro 691321

Seal-Shaft, Choke Throttle

Note: Included in Carburetor Gasket Set-Ref. 977.

$

$

Currently unavailable

633

Toro 691321

Seal-Shaft, Choke Throttle

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Currently unavailable

975

Toro 493640

Bowl-Float

$

$

Currently unavailable
