200401-0122-XX - Briggs & Stratton Horizontal Engine Carburetor Assy,Air Cleaner Parts Diagram

Horizontal Engine

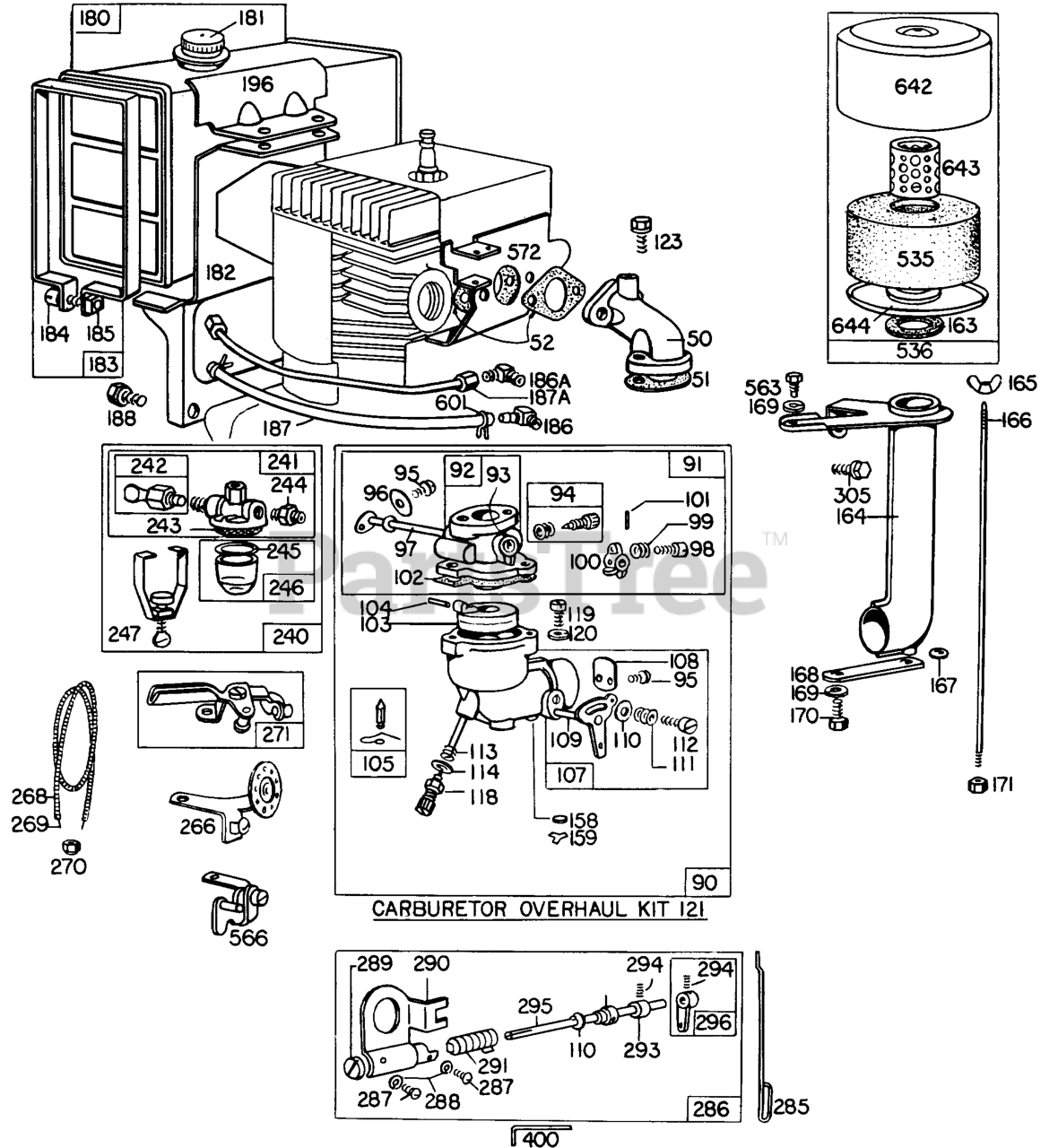

Carburetor Assy,Air Cleaner Parts Diagram

  • Title

50

Briggs & Stratton 21769

Elbow-Carburetor Intake
(Superseded to 5021769)

$14.99

$

In Stock, only 1 left!

0

51

Briggs & Stratton 65647

Gasket-Intake Elbow Mounting

Note: Included in Carburetor Overhaul Kit-Part No. 291763. Included in Gasket Set-Part No. 294736

$4.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 65647

Gasket-Intake Elbow Mounting

Note: Included in Gasket Set-Part No. 294736

$4.99

$

Usually ships in 2-12 days

0

90

Briggs & Stratton 293950

Carburetor Assembly

$262.99

$

Usually ships in 2-12 days

0

91

Briggs & Stratton 291655

Body Assy.-Upper Carburetor

$83.99

$

Usually ships in 2-12 days

0

92

Briggs & Stratton 99375

Body-Upper Carburetor

$44.99

$

Usually ships in 2-12 days

0

93

Briggs & Stratton 23108

Bushing-Throttle Shaft
(Superseded to 691769)

$9.49

$

In Stock, only 2 left!

0

94

Briggs & Stratton 292681

Valve-Idle Mixture

Note: Included in Carburetor Overhaul Kit-Part No. 291763

$11.99

$

In Stock, only 1 left!

0

95

Briggs & Stratton 93038

Screw-Throttle Valve Mounting Sem
(Superseded to 691437)

$3.99

$

In Stock, only 2 left!

0

96

Briggs & Stratton 62940

Valve-Throttle
(Superseded to 223370)

$9.49

$

Usually ships in 2-12 days

0

97

Briggs & Stratton 291300

Shaft Assy.-Throttle

$27.99

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 91920

Screw, Machine Fill (8-32 X 5/8")
(Superseded to 691615)

$3.99

$

Usually ships in 2-12 days

0

99

Briggs & Stratton 26157

Spring, Compression
(Superseded to 693942)

$8.99

$

Usually ships in 2-12 days

0

100

Briggs & Stratton 61967

Stop-Throttle Lever
(Superseded to 691708)

$8.99

$

Usually ships in 2-12 days

0

101

Briggs & Stratton 93043

Pin-Throttle Stop And Governor Shaft
(Superseded to 691616)

$4.49

$

Usually ships in 2-12 days

0

102

Briggs & Stratton 27034

Gasket-Carburetor Body

Note: Included in Carburetor Overhaul Kit-Part No. 291763

$4.99

$

Usually ships in 2-12 days

0

103

Briggs & Stratton 99333

Float-Carburetor

$13.99

$

In Stock, only 4 left!

0

104

Briggs & Stratton 230896

Pin-Hinge
(Superseded to 691775)

Note: Included in Carburetor Overhaul Kit-Part No. 291763

$3.99

$

In Stock, only 3 left!

0

105

Briggs & Stratton 299096

Valve-Fuel Inlet
(Superseded to 394681)

Note: Included in Carburetor Overhaul Kit-Part No. 291763

$7.99

$

In Stock, Qty 16

0

107

Briggs & Stratton 89915

Body Assy.-Lower Carburetor

$95.99

$

Usually ships in 2-12 days

0

108

Briggs & Stratton 62872

Valve-Choke

$9.49

$

Usually ships in 2-12 days

0

109

Briggs & Stratton 291440

Shaft, Lever & Vane Assy-Auto Choke

$

$

Not available

109

Briggs & Stratton 89531

Shaft And Lever-Choke

$21.99

$

Usually ships in 2-12 days

0

110

Briggs & Stratton 62899

Washer-Thermostat
(Superseded to 691186)

$4.99

$

Usually ships in 2-12 days

0

111

Briggs & Stratton 26155

Spring-Lever
(Superseded to 691590)

$4.99

$

In Stock, Qty 9

0

112

Briggs & Stratton 23123

Screw-Shoulder
(Superseded to 691587)

$6.49

$

In Stock, Qty 5

0

113

Briggs & Stratton 390395

Nozzle-Carburetor

Note: Included in Carburetor Overhaul Kit-Part No. 291763

$19.99

$

Usually ships in 2-12 days

0

114

Briggs & Stratton 68667

Washer, Fiber (Viton Seat)
(Superseded to 691610)

Note: Included in Carburetor Overhaul Kit-Part No. 291763

$6.49

$

In Stock, Qty 11

0

118

Briggs & Stratton 99525

Valve-Needle
(Superseded to 99525S)

Note: Included in Carburetor Overhaul Kit-Part No. 291763

$12.99

$

In Stock, only 3 left!

0

119

Briggs & Stratton 90746

Screw, Machine Fill (10-32 X 5/8")
(Superseded to 690278)

$3.99

$

In Stock, only 1 left!

0

120

Briggs & Stratton 92290

Lockwasher, Zinc Pl
(Superseded to 690286)

$3.99

$

Usually ships in 2-12 days

0

121

Briggs & Stratton 291763

Carburetor Overhaul Kit
(Superseded to 394693)

$31.99

$

In Stock, Qty 12

0

123

Briggs & Stratton 93415

Screw-Hex (1/4-20 X 3/4)
(Superseded to 691681)

$8.49

$

In Stock, only 1 left!

0

158

Briggs & Stratton 27590

Filter-Carburetor Drin

$6.49

$

In Stock, only 1 left!

0

159

Briggs & Stratton 220521

Retainer-Carb Drain

$

$

Not available

163

Briggs & Stratton 67247

Gasket-Air Cl

Note: Included in Gasket Set-Part No. 294736

$7.99

$

Usually ships in 2-12 days

0

164

Briggs & Stratton 291462

Pipe-Air Cleaner

$48.99

$

Usually ships in 2-12 days

0

165

Briggs & Stratton 92650

Nut-Wing
(Superseded to 691331)

$5.99

$

In Stock, Qty 6

0

166

Briggs & Stratton 230739

Stud-Air Cleaner
(Superseded to 297749)

$27.99

$

Usually ships in 2-12 days

0

167

Briggs & Stratton 65978

Seal, O-Ring (Needle Valve)
(Superseded to 691606)

$5.99

$

Usually ships in 2-12 days

0

168

Briggs & Stratton 22832

Strap-Air Cleaner Pipe
(Superseded to 5022832)

$73.99

$

Usually ships in 2-12 days

0

169

Briggs & Stratton 90832

Washer-Lock
(Superseded to 22097GS)

$3.49

$

Usually ships in 2-12 days

0

170

Briggs & Stratton 91468

Screw-Hex (1/4-20 X 3/8")

$4.99

$

Usually ships in 2-12 days

0

171

Briggs & Stratton 92129

Nut, Hex Mach (1/4-28)
(Superseded to 690284)

$2.99

$

Usually ships in 2-12 days

0

180

Briggs & Stratton 291488

Tank-Fuel (Metal)

$128.99

$

In Stock, only 3 left!

0

181

Briggs & Stratton 69221

Cap-Fuel Tank Metal (1-3/4" O.d. Top)
(Superseded to 791545)

$11.99

$

In Stock, only 3 left!

0

182

Briggs & Stratton 221435

Bracket/Tank

$

$

Not available

182

Briggs & Stratton 22813

Bracket, Tank (8 Quart) (Remote Mount Only)
(Superseded to 690262)

$41.99

$

Usually ships in 2-12 days

0

182

Briggs & Stratton 93535

Screw, Sem Hex Head (5/16-18 X 3/4)
(Superseded to 691058)

$5.99

$

In Stock, Qty 12

0

183

Briggs & Stratton 291490

Strap, Tank Assy (6 Quart)
(Superseded to 691937)

$33.99

$

Usually ships in 2-12 days

0

184

Briggs & Stratton 91257

Screw, Machine Fill (1/4-20 X 1-1/2")
(Superseded to 690280)

$3.99

$

Usually ships in 2-12 days

0

185

Briggs & Stratton 90970

Nut, Square (1/4-20)
(Superseded to 690279)

$3.99

$

Usually ships in 2-12 days

0

186A

Briggs & Stratton 63377

Connector-Hose (For Metal Fuel Pipe)

$12.99

$

Usually ships in 2-12 days

0

186

Briggs & Stratton 67218

Connector, Fuel
(Superseded to 691609)

$7.49

$

In Stock, Qty 8

0

187A

Briggs & Stratton 29476

Pipe-Fuel (Metal)
(Superseded to 391498)

$

$

Not available

187

Briggs & Stratton 299942

Line-Fuel (13")
(Superseded to 791745)

$10.99

$

In Stock, Qty 7

0

188

Briggs & Stratton 93535

Screw, Sem Hex Head (5/16-18 X 3/4)
(Superseded to 691058)

$5.99

$

In Stock, Qty 12

0

196

Briggs & Stratton 22907

Support, Tank (8 Quart) (Remote Mount Only)
(Superseded to 691068)

$25.99

$

In Stock, only 1 left!

0

240

Briggs & Stratton 295984

Carburetor (Used With Flexible Fuel Pipe)
(Superseded to 690612)

Note: Used with Flexible Fuel Pipe

$

$

Not available

240

Briggs & Stratton 297563

Outlet, Tank Assy
(Superseded to 592840)

$43.99

$

In Stock, only 4 left!

0

240

Briggs & Stratton 99910

Filter Assy.-Fuel
(Superseded to 690612)

Note: Used with Metal Fuel Pipe.

$

$

Not available

241

Briggs & Stratton 296005

Fuel Filter Cover
(Superseded to 690612)

Note: Used with Flexible Fuel Pipe.

$

$

Not available

241

Briggs & Stratton 99909

Fuel Filter Cover (Used With Metal Fuel Pipe)

Note: Used with Metal Fuel Pipe.

$19.99

$

Usually ships in 2-12 days

0

242

Briggs & Stratton 295913

Valve-Shut
(Superseded to 690612)

$

$

Not available

243

Briggs & Stratton 22547

Screen-Fuel Filter
(Superseded to 691962)

$4.99

$

In Stock, Qty 5

0

244

Briggs & Stratton 230318

Connector, Fuel
(Superseded to 691764)

Note: Used with Flexible Fuel Pipe.

$14.99

$

In Stock, Qty 5

0

244

Briggs & Stratton 53029

Connector-Fuel Pipe
(Superseded to 231238)

Note: Used with Metal Fuel Pipe

$8.99

$

Usually ships in 2-12 days

0

245

Briggs & Stratton 68477

Gasket-Fuel Filter Bowl
(Superseded to 692190)

Note: Included in Gasket Set-Part No. 294736

$4.99

$

In Stock, Qty 7

0

246

Briggs & Stratton 298683

Bowl-Fuel Filter

$14.99

$

In Stock, only 1 left!

0

247

Briggs & Stratton 99665

Yoke-Fuel Filter
(Superseded to 691700)

$22.99

$

Usually ships in 2-12 days

0

266

Briggs & Stratton 291460

Control-Throttle (Disc Type)

$33.99

$

Usually ships in 2-12 days

0

268

Briggs & Stratton 65616

Casing, Wire (72", Cut To Required Length)
(Superseded to 691025)

Note: If longer casing is required, specify length in inches; if shorter casing is needed, order No. 65616 and cut to required length.

$

$

Not available

269

Briggs & Stratton 26633

Wire, Control (78" Cut To Required Length)
(Superseded to 691026)

Note: If longer wire is required, specify length in inches; if shorter wire is needed, order No. 26633 and cut to required length.

$

$

Not available

270

Briggs & Stratton 63426

Nut, Hex
(Superseded to 691027)

$13.99

$

In Stock, only 2 left!

0

271

Briggs & Stratton 290568

Lever-Control
(Superseded to 691028)

$45.99

$

Usually ships in 2-12 days

0

285

Briggs & Stratton 26684

Link-Choke

$

$

Not available

286

Briggs & Stratton 291445

Thermostat Assy.

$

$

Not available

287

Briggs & Stratton 90050

Screw-Machine, Rd. Hd. (6-32 X 1/4")

$

$

Not available

288

Briggs & Stratton 90362

Washer-Lock (No. 6 X 3/64" X 1/32")
(Superseded to 691619)

$6.49

$

Usually ships in 2-12 days

0

289

Briggs & Stratton 23886

Support-Thermostat (outer)

$

$

Not available

290

Briggs & Stratton 291444

Tube Assembly-Thermostat

$

$

Not available

291

Briggs & Stratton 26594

Thermostat

$

$

Not available

293

Briggs & Stratton 23884

Stop-Thermostat Shaft

$

$

Not available

294

Briggs & Stratton 92678

Screw-Set, Socket Head 6-32 X 5/16"

$

$

Not available

295

Briggs & Stratton 23954

Shaft-Thermostat
(Superseded to 7023954YP)

$

$

Not available

296

Briggs & Stratton 291044

Lever Assy.-Thermostat

$6.99

$

Usually ships in 2-12 days

0

305

Briggs & Stratton 93158

Screw, Sem Hex Head (1/4-20 X 5/8")
(Superseded to 692198)

$5.99

$

In Stock, only 3 left!

0

400

Briggs & Stratton 230010

Wrench-Socket Screw

$

$

Not available

535

Briggs & Stratton 270093

Filter-Air

$19.99

$

In Stock, only 3 left!

0

536

Briggs & Stratton 297869

Cleaner-Air
(Superseded to 393858)

$98.99

$

Usually ships in 2-12 days

0

563

Briggs & Stratton 92863

Screw-Self Hex. Hd. 1/4-20 X 5/8"
(Superseded to 692198)

$5.99

$

In Stock, only 3 left!

0

566

Briggs & Stratton 99458

Idling Device

Note: Uses: 92747 Screw-Sem For mounting to Intake Elbow

$18.99

$

Usually ships in 2-12 days

0

572

Briggs & Stratton 291476

Guide-Front Air

$

$

Not available

601

Briggs & Stratton 93053

Clamp, Hose (Green)
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

642

Briggs & Stratton 221468

Cover-Air Cleaner

$58.99

$

Usually ships in 2-12 days

0

643

Briggs & Stratton 280001

Spacer-Air Cleaner

$

$

Not available

644

Briggs & Stratton 221466

Base-Air Cleaner

$10.99

$

Usually ships in 2-12 days

0
