20042 (SR-21 S) - Toro 21" Super Recycler Walk-Behind Mower (SN: 210000001 - 210999999) (2001) REAR BAGGING DISCHARGE CHUTE ASSEMBLY Parts Diagram

21" Super Recycler Walk-Behind Mower

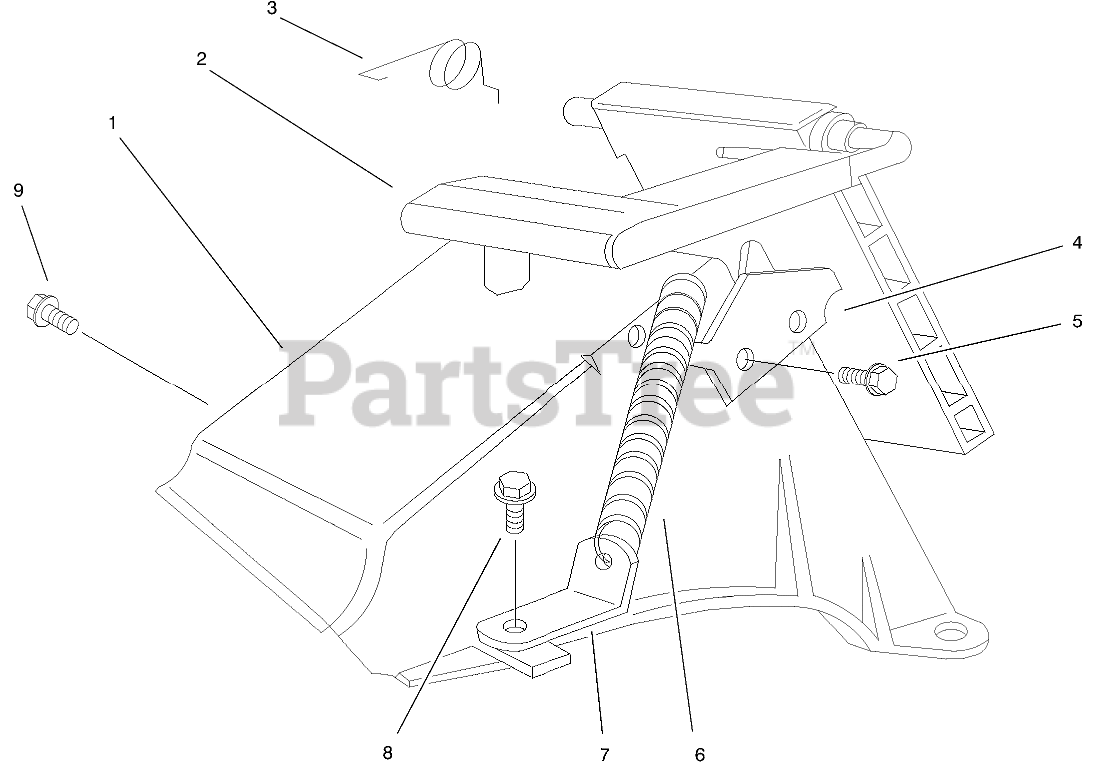

REAR BAGGING DISCHARGE CHUTE ASSEMBLY Parts Diagram

  • Title

1

Toro 82-9153

Discharge Tunnel (only on: 20043)

$

$

Not available

2

Toro 93-7351

Discharge Door ASM (only on: 20043)

$112.99

$

In Stock, only 1 left!

0

3

Toro 76-4660

Spring-Door (only on: 20043)

$10.99

$

In Stock, Qty 6

0

4

Toro 93-3154

Latch-Plate (only on: 20043)

$5.49

$

In Stock, Qty 5

0

5

Toro 46-8090

Screw-Plastite (only on: 20043)

$

$

Not available

6

Toro 80-3770

Retainer-Door (only on: 20043)

$2.99

$

In Stock, only 2 left!

0

7

Toro 71-9350

Bracket-Spring (only on: 20043)

$14.99

$

Usually ships in 3-6 days

0

8

Toro 46-6811

Screw-HWH (only on: 20043)

$3.49

$

In Stock, Qty 7

0

9

Toro 46-6810

Screw & Washer ASM (only on: 20043)

$5.49

$

In Stock, only 3 left!

0

Toro 77-0500

Discharge Plug ASM (only on: 20043)

Note: Not illustrated

$68.99

$

In Stock, only 1 left!

0

Toro 3295-35

Rivet-Head, Flat (only on: 20043)

Note: Not illustrated

$2.99

$

Usually ships in 3-6 days

0

Toro 76-2110

Plug-Discharge (only on: 20043)
(Superseded to 77-0500)

Note: Not illustrated

$68.99

$

In Stock, only 1 left!

0

Toro 76-4640

Latch-Plug, Discharge (only on: 20043)

Note: Not illustrated

$7.99

$

Usually ships in 3-6 days

0

Toro 76-4650

Grip-Latch (only on: 20043)

Note: Not illustrated

$5.49

$

Usually ships in 3-6 days

0
