20044 (SR-21 OS) - Toro 21" Super Recycler Walk-Behind Mower (SN: 099000001 - 099999999) (1999) ENGINE & BLADE ASSEMBLY Parts Diagram

21" Super Recycler Walk-Behind Mower

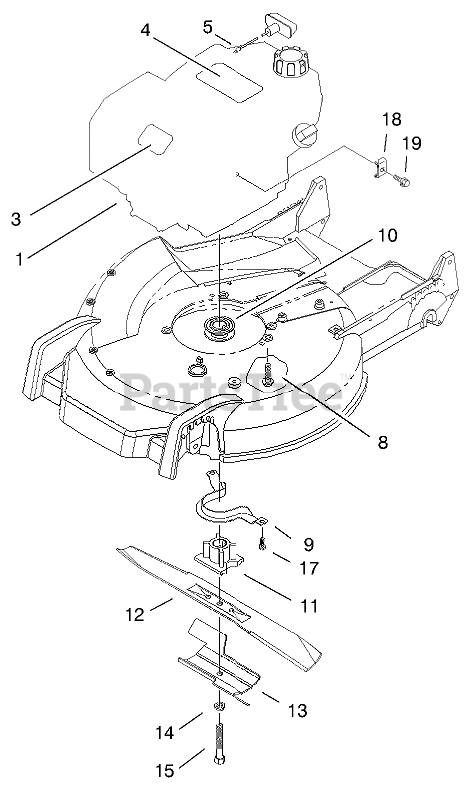

ENGINE & BLADE ASSEMBLY Parts Diagram

  • Title

1

Engine-Gts

$

$

Not available

3

Toro 92-2289

PLATE-LOGO
(Superseded to 98-3206)

$1.99

$

In Stock, only 2 left!

0

4

Toro 100-1110

DECAL - RECOIL

$

$

Not available

5

Toro 2210-316

STOP-ROPE

$7.99

$

Usually ships in 3-6 days

0

8

Toro 100-2835

SCREW-MOUNT, ENGINE

$

$

Not available

9

Toro 66-0570-03

BRACKET-GUIDE, BELT

$13.99

$

In Stock, only 2 left!

0

10

Toro 100-1103

PULLEY-ASSY

$

$

Not available

11

Toro 100-1101

RETAINER - BLADE

$67.99

$

Usually ships in 3-6 days

0

12

Toro 93-4106

Blade
(Superseded to 133-8183-03)

$22.99

$

In Stock, Qty 20+

0

13

Toro 94-1608-03

ACCELERATOR-BLADE
(Superseded to 105-6848-03)

$17.99

$

In Stock, only 3 left!

0

14

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, Qty 5

0

15

Toro 26-0670

SCREW-BLADE

$

$

Not available

17

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

18

Toro 95-9849

CLAMP

$

$

Not available

19

Toro 95-9853

BOLT (5X18)

$1.49

$

Usually ships in 3-6 days

0

Toro 100-2512

TUBE-DRAIN, OIL

Note: Not illustrated

$14.99

$

Usually ships in 3-6 days

0
