20044 (SR-21 OS) - Toro 21" Super Recycler Walk-Behind Mower (SN: 099000001 - 099999999) (1999) HANDLE & CONTROLS ASSEMBLY Parts Diagram

21" Super Recycler Walk-Behind Mower

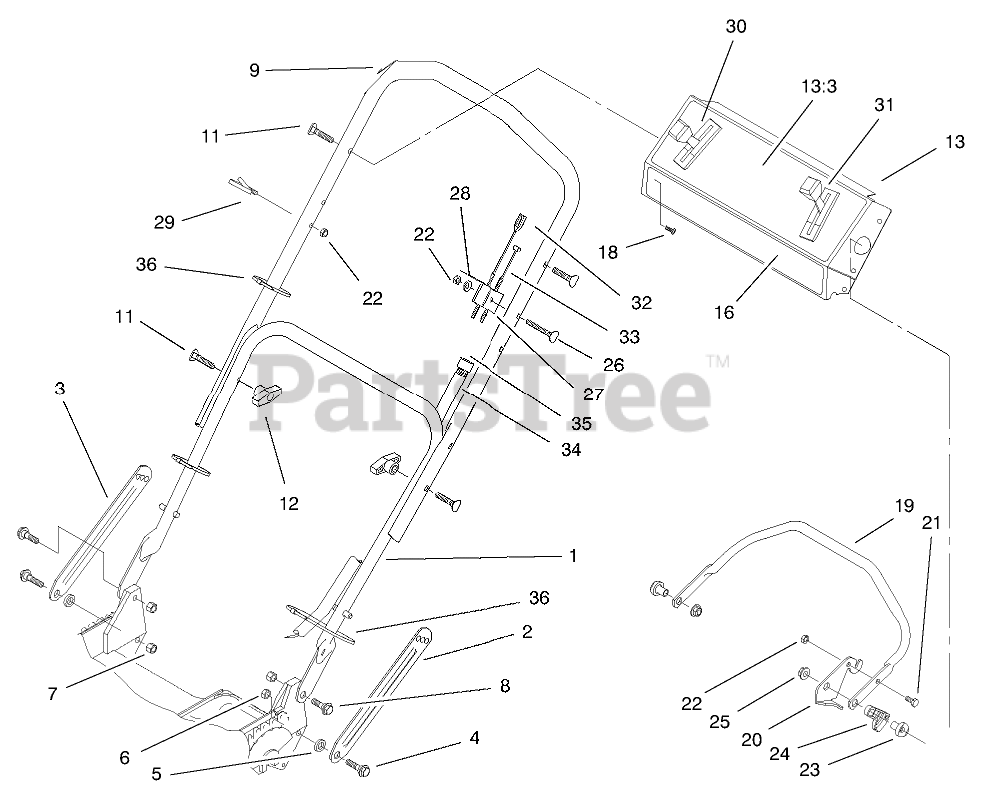

HANDLE & CONTROLS ASSEMBLY Parts Diagram

  • Title

1

Toro 82-5531-05

LOWER HANDLE ASM
(Superseded to 82-5530)

$

$

Not available

2

Toro 84-8361-03

Latch-Handle
(Superseded to 100-3298-03)

$20.99

$

In Stock, Qty 9

0

3

Toro 84-8401-03

Latch-Handle
(Superseded to 100-3297-03)

$9.49

$

In Stock, only 4 left!

0

4

Toro 27-7210

SCREW-SHOULDER

$8.49

$

In Stock, Qty 11

0

5

Toro 3-3287

SPACER

$5.49

$

In Stock, Qty 13

0

6

Toro 3296-47

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

7

Toro 3296-72

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

8

Toro 27-7211

SCREW-SHOULDER

$5.49

$

In Stock, Qty 7

0

9

Toro 92-2277-05

Upper Handle
(Superseded to 94-4922)

$186.99

$

Usually ships in 3-6 days

0

11

Toro 92-2260

SCREW-HANDLE

$4.49

$

In Stock, Qty 20+

0

12

Toro 98-7134

KNOB-HANDLE

$2.99

$

In Stock, Qty 20+

0

13

Toro 16-9479

PANEL W/DECAL

$

$

Not available

13:3

Toro 93-7166

DECAL - INSTRUCTION

$

$

Not available

16

Toro 100-1111

DECAL-CONSOLE

$46.99

$

Usually ships in 3-6 days

0

18

Toro 92-9665

SCREW-TAP

$7.49

$

In Stock, Qty 20+

0

19

Toro 52-7430-03

BAR-CONTROL

$

$

Not available

20

Toro 66-5351-03

LEVER-CONTROL

$12.99

$

Usually ships in 3-6 days

0

21

Toro 321-39

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

22

Toro 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, Qty 20+

0

23

Toro 49-1630

SPACER-SUPPORT

$9.49

$

Usually ships in 3-6 days

0

24

Toro 46-5520

LEVER-TRACTION

$

$

Not available

25

Toro 3296-74

NUT-LOCK NI
(Superseded to 3296-72)

$2.99

$

In Stock, Qty 20+

0

26

Toro 92-2269

SCREW-HANDLE
(Superseded to 137-3108)

$4.99

$

Usually ships in 3-6 days

0

27

Toro 46-6980

SUPPORT-CABLE

$17.99

$

In Stock, only 2 left!

0

28

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

29

Toro 86-9671

GUIDE-ROPE

$4.99

$

In Stock, Qty 20+

0

30

Toro 76-2712

CONTROL-SPEED, GROUND

$45.99

$

In Stock, only 1 left!

0

31

Toro 100-1108

CONTROL - THROTTLE

$

$

Not available

32

Toro 100-1107

CABLE-BRAKE

$77.99

$

Usually ships in 3-6 days

0

33

Toro 46-5481

CABLE-TRACTION

$69.99

$

In Stock, only 2 left!

0

34

Toro 46-6440

CONTROL CABLE COVER

$

$

Not available

35

Toro 2412-50

FITTING-RING

$10.99

$

Usually ships in 3-6 days

0

36

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 7

0
