20044 (SR-21 OS) - Toro 21" Super Recycler Walk-Behind Mower (SN: 099000001 - 099999999) (1999) HOUSING, HANDLE BRACKET & WHEEL ASSEMBLY Parts Diagram

21" Super Recycler Walk-Behind Mower

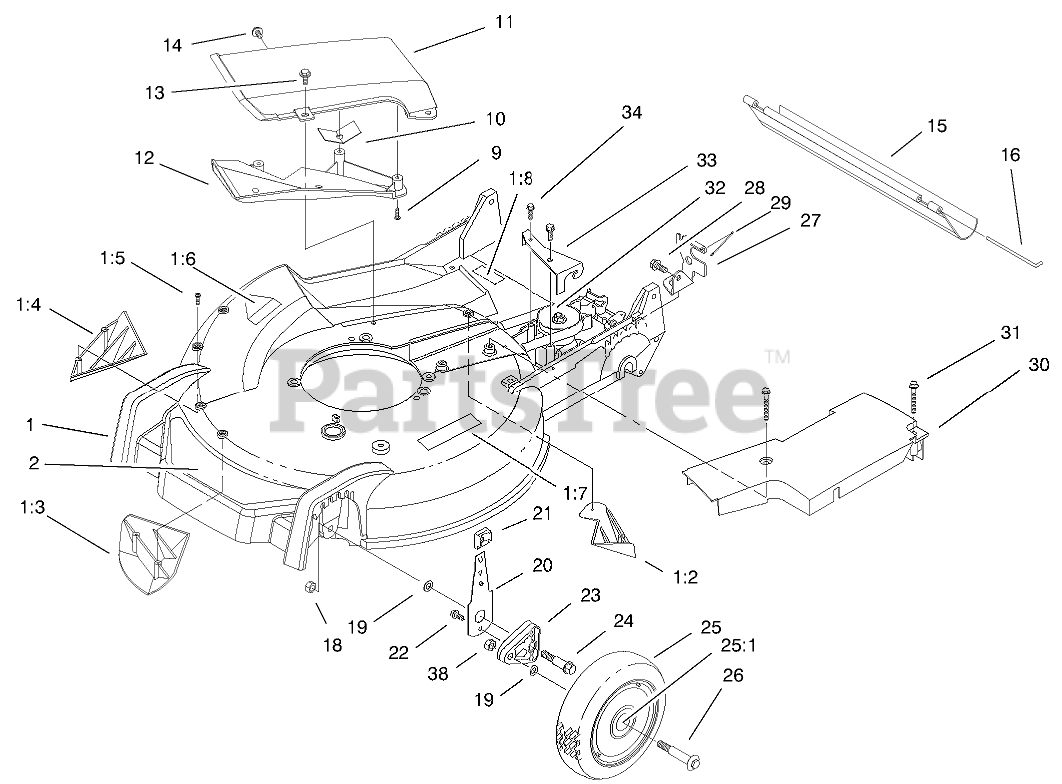

HOUSING, HANDLE BRACKET & WHEEL ASSEMBLY Parts Diagram

  • Title

1

Toro 100-2887

HOUSING

$677.99

$

Usually ships in 3-6 days

0

1:2

Toro 92-1750

KICKER-REAR

$18.99

$

In Stock, Qty 5

0

1:3

Toro 92-1720

KICKER-FRONT

$19.99

$

In Stock, only 2 left!

0

1:4

Toro 92-1730

KICKER-RH

$19.99

$

In Stock, only 2 left!

0

1:5

Toro 32144-111

SCREW-PPH

$0.99

$

In Stock, Qty 20+

0

1:6

Toro 43-8480

DECAL-DANGER

$6.49

$

In Stock, Qty 8

0

1:7

Toro 93-0248

DECAL-WARNING
(Superseded to 104-8589)

$5.99

$

Usually ships in 3-6 days

0

1:8

Toro 99-6018

DECAL-WARNING

$2.49

$

Usually ships in 3-6 days

0

2

Toro 99-6347

DECAL - DECK

$

$

Not available

10

Toro 83-4750

Cover Guard

$

$

Not available

11

Toro 100-1183

COVER-BLACK

$52.99

$

Usually ships in 3-6 days

0

12

Toro 82-8620

Deflector
(Superseded to 17-5179)

$

$

Not available

13

Toro 46-6811

SCREW-HWH

$3.49

$

In Stock, Qty 7

0

14

Toro 46-6810

SCREW AND WASHER ASM

$5.49

$

In Stock, only 3 left!

0

15

Toro 44-0580

SHIELD-TRAILING
(Superseded to 112-9989)

$27.99

$

In Stock, Qty 16

0

16

Toro 33-3208

ROD-SHIELD

$14.99

$

In Stock, Qty 16

0

18

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

19

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

20

Toro 66-0541

FRONT SPRING ARM ASM

$15.99

$

In Stock, Qty 8

0

21

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 12

0

22

Toro 32144-85

SCREW-HWH

$1.99

$

In Stock, Qty 20+

0

23

Toro 66-0580

ARM-PIVOT, FRONT

$18.99

$

In Stock, only 1 left!

0

24

Toro 66-0560

BOLT-SHOULDER

$4.99

$

In Stock, Qty 20+

0

25

Toro 14-9989

WHEEL AND TIRE ASM

$42.99

$

Usually ships in 3-6 days

0

25

Toro 98-7130

WHEEL ASM

$22.99

$

In Stock, Qty 14

0

25:1

Toro 27-6250

BUSHING

$2.99

$

In Stock, Qty 20+

0

26

Toro 27-6232

BOLT-WHEEL
(Superseded to 114-3468)

$5.49

$

In Stock, Qty 20+

0

26

Toro 92-1057

BOLT-SHOULDER

$3.99

$

In Stock, only 1 left!

0

27

Toro 82-5680-03

BRACKET-TRACTION, ADJ.

$11.99

$

Usually ships in 3-6 days

0

28

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

29

Toro 46-7030

RETAINER-CABLE

$6.49

$

In Stock, only 3 left!

0

30

Toro 100-1182

BELT COVER ASM

$

$

Not available

31

Toro 37-7260

SCREW-HHFTF

$6.49

$

In Stock, Qty 6

0

32

Toro 62-6673

GEARCASE ASM

$753.99

$

Usually ships in 3-6 days

0

33

Toro 62-4320-03

BRACKET-GUIDE, BELT

$26.99

$

Usually ships in 3-6 days

0

34

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

38

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

38

Toro 603773

NUT

$2.99

$

In Stock, Qty 20+

0
