20045 (SR-21 SE) - Toro 21" Super Recycler Walk-Behind Mower (SN: 200000001 - 200999999) (2000) ELECTRICAL STARTER COMPONENT ASSEMBLY Parts Diagram

21" Super Recycler Walk-Behind Mower

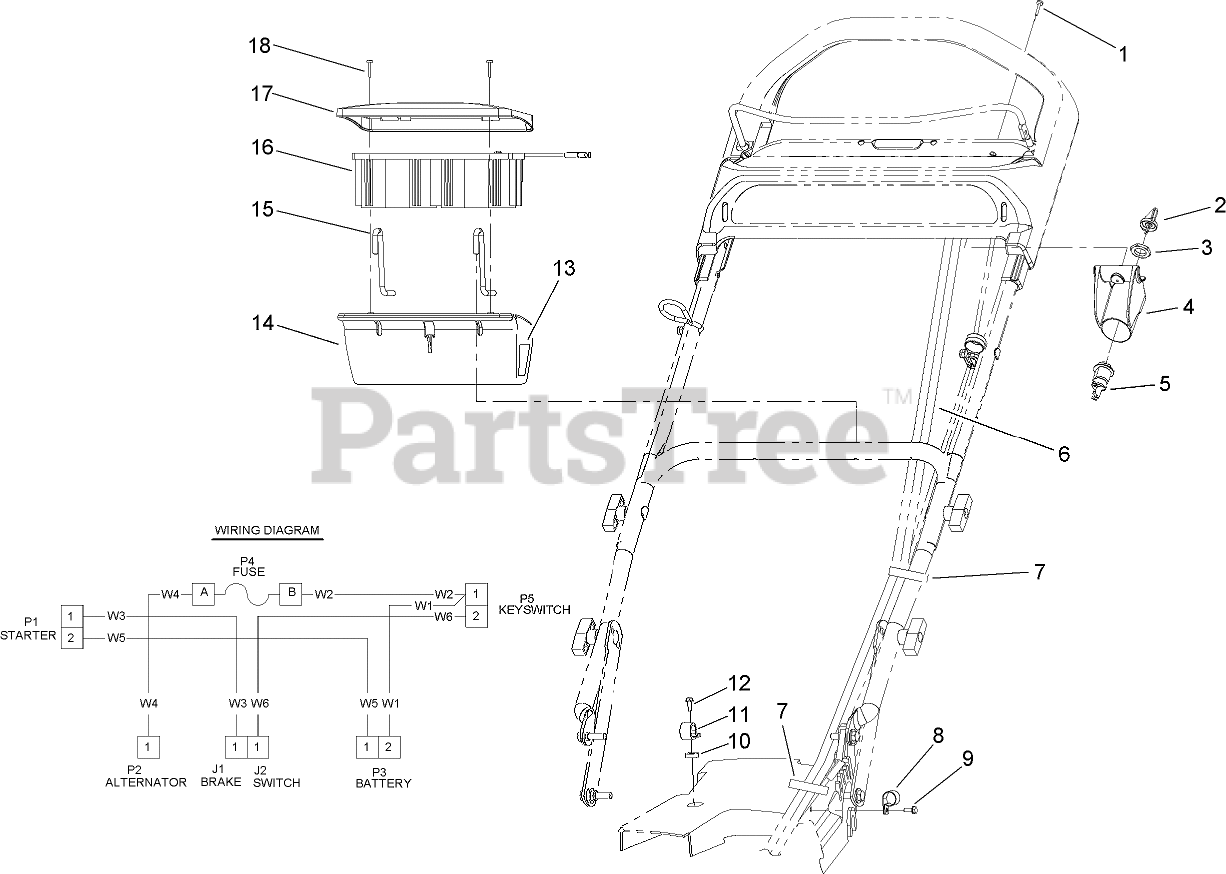

ELECTRICAL STARTER COMPONENT ASSEMBLY Parts Diagram

  • Title

1

Toro 32144-97

SCREW-PPH, PLASTITE

$0.99

$

In Stock, Qty 12

0

2

Toro 63-8360

KEY-IGNITION

$5.49

$

In Stock, Qty 20+

0

3

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 18

0

4

Toro 99-6006

SWITCH-HOLDER

$60.99

$

Usually ships in 3-6 days

0

5

Toro 46-5780

STARTER SWITCH ASM

$29.99

$

In Stock, Qty 14

0

6

Toro 99-6002

WIRE HARNESS - CAST QUANT PP

$105.99

$

Usually ships in 3-6 days

0

7

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 14

0

8

Toro 2412-83

CLAMP-CABLE

$

$

Not available

9

Toro 32144-112

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

10

Toro 3-5792

WASHER

$5.99

$

Usually ships in 3-6 days

0

11

Toro 2412-87

CLAMP-CABLE

$3.49

$

Usually ships in 3-6 days

0

12

Toro 37-7262

SCREW-SPECIAL

$3.49

$

Usually ships in 3-6 days

0

13

Toro 99-6631

DECAL - INSTRUCTION

$

$

Not available

14

Toro 99-5297

BOX-BATTERY
(Superseded to 100-9117)

$

$

Not available

15

Toro 99-5299

ROD-BATTERY

$26.99

$

Usually ships in 3-6 days

0

16

Toro 99-5296

BATTERY

$

$

Not available

17

Toro 99-5298

COVER-BATTERY

$26.99

$

Usually ships in 3-6 days

0

18

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

19

Toro 94-9164

CHARGER-BATTERY
(Superseded to 131-0848)

Note: Not illustrated

$67.99

$

Usually ships in 3-6 days

0
