20048 (SR-21 SE) - Toro 21" Super Recycler Walk-Behind Mower (SN: 210000001 - 210999999) (2001) ENGINE AND BLADE ASSEMBLY Parts Diagram

21" Super Recycler Walk-Behind Mower

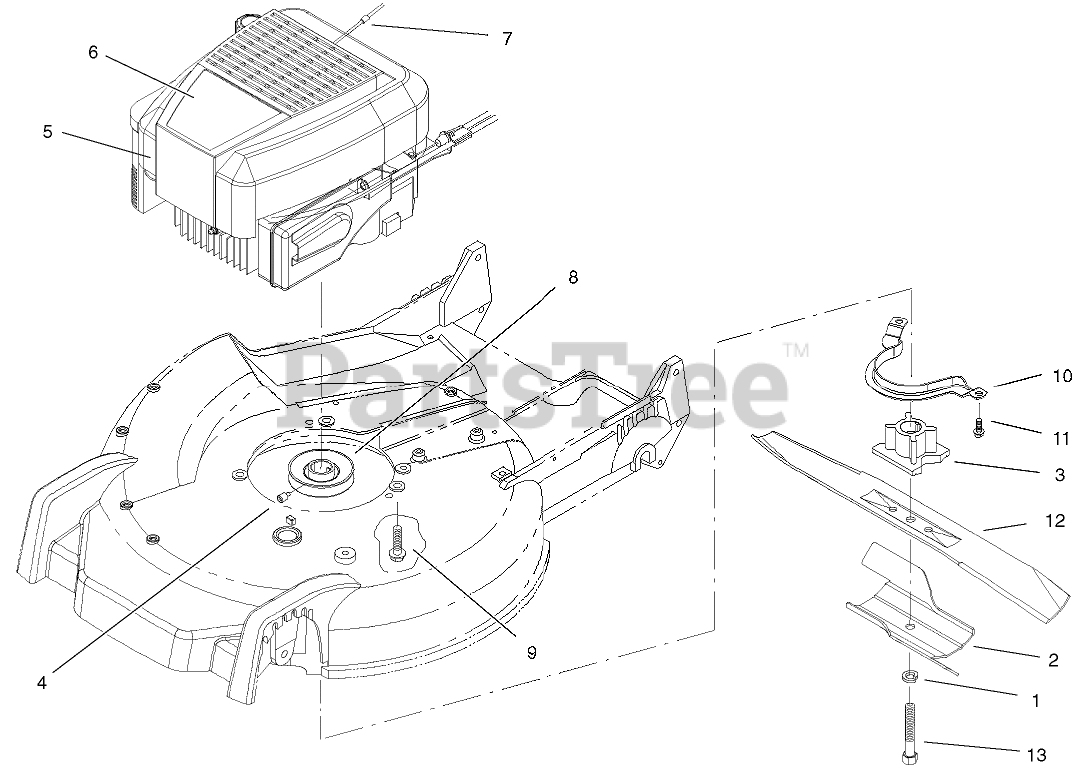

ENGINE AND BLADE ASSEMBLY Parts Diagram

  • Title

1

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

2

Toro 94-1608-03

ACCELERATOR-BLADE
(Superseded to 105-6848-03)

$19.99

$

In Stock, Qty 5

0

3

Toro 104-1007

RETAINER-BLADE

$77.99

$

Usually ships in 3-6 days

0

4

Toro 104-0214

SCREW-SET
(Superseded to 105-8875)

$12.99

$

Usually ships in 3-6 days

0

5

Engine-Quantum Xl Es,Zs, Briggs and Stratton Model 12J805-2370-B1

$

$

Not available

6

Toro 99-6336

DECAL - RECOIL - QUIET I/C

$

$

Not available

7

Toro 2210-316

STOP-ROPE

$8.49

$

Usually ships in 3-6 days

0

8

Toro 95-1878

PULLEY

$67.99

$

In Stock, only 2 left!

0

9

Toro 32144-102

SCREW-HWH

$3.99

$

In Stock, Qty 5

0

10

Toro 66-0570-03

BRACKET-GUIDE, BELT

$14.99

$

In Stock, only 2 left!

0

11

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

12

Toro 93-4106-03

BLADE
(Superseded to 133-8183-03)

$23.99

$

In Stock, Qty 20+

0

13

Toro 95-1748

SCREW-BLADE
(Superseded to 105-8629)

$21.99

$

In Stock, only 4 left!

0
