20057 - Toro Super Recycler Walk-Behind Mower (SN: 260000001 - 260999999) (2006) CRANKCASE ASSEMBLY BRIGGS AND STRATTON 122672-0192-E1 Parts Diagram

Super Recycler Walk-Behind Mower

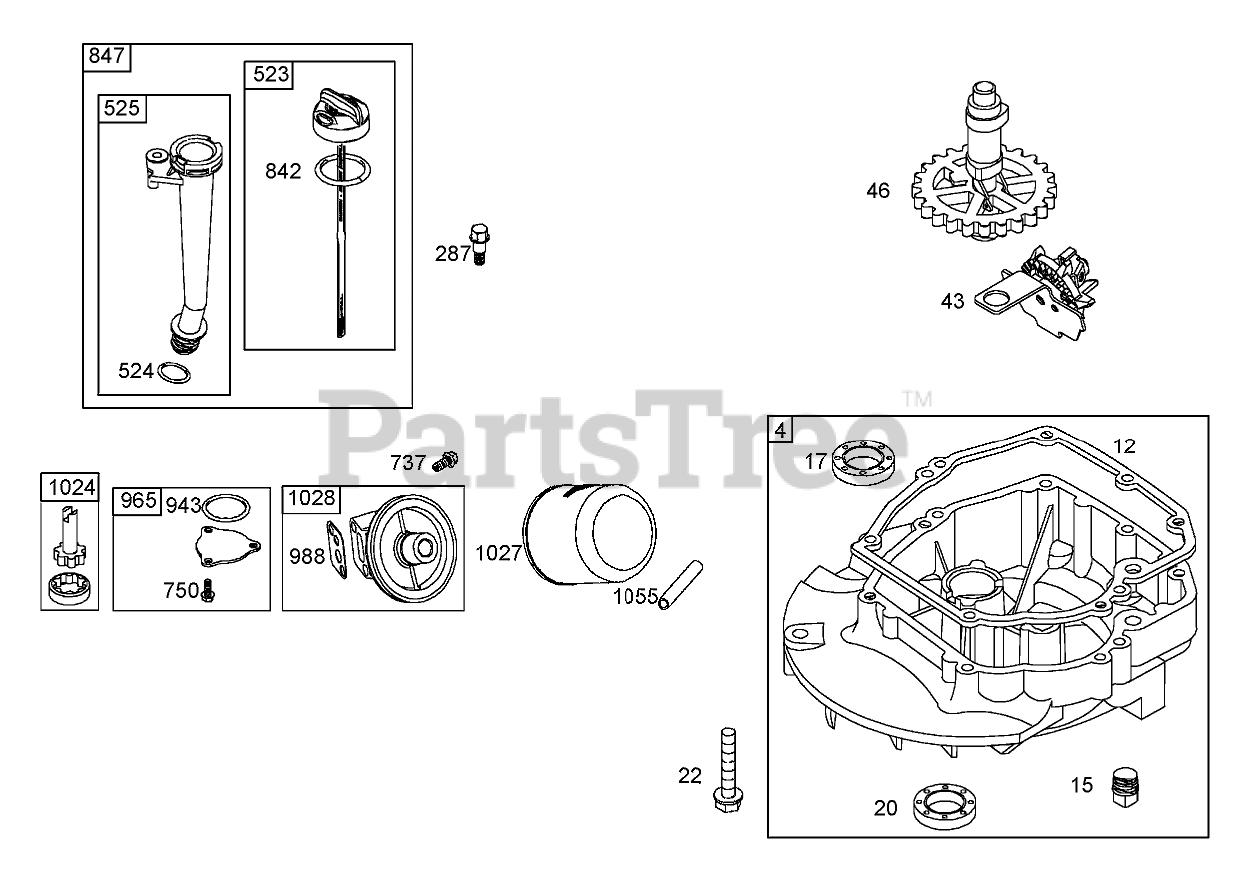

CRANKCASE ASSEMBLY BRIGGS AND STRATTON 122672-0192-E1 Parts Diagram

  • Title
4

Briggs & Stratton Part# 692509

Sump?Engine
(Superseded to 592941)

Note: Obtain parts from www.briggsandstratton.com

Usually ships in 6 to 12 days

$

$86.59

0

12

Briggs & Stratton Part# 692232

Gasket-Crankcase

Note: Obtain parts from www.briggsandstratton.com

Usually ships in 6 to 12 days

$

$4.91

0

15

Briggs & Stratton Part# 691680

Plug-Drain, Oil

Note: Obtain parts from www.briggsandstratton.com

Usually ships in 1 day

$

$4.35

0

17

Briggs & Stratton Part# 692517

Bearing?Ball
(Superseded to 798538)

Note: Obtain parts from www.briggsandstratton.com

Usually ships in 6 to 12 days

$

$22.30

0

20

Briggs & Stratton Part# 399781

Seal?Oil (PTO Side)
(Superseded to 399781S)

Note: Obtain parts from www.briggsandstratton.com

Usually ships in 1 day

$

$6.59

0

22

Briggs & Stratton Part# 691092

Screw (Engine Sump)

Note: Obtain parts from www.briggsandstratton.com

Usually ships in 1 day

$

$3.12

0

43

Briggs & Stratton Part# 691997

Slinger-Oil, Governor

Note: Obtain parts from www.briggsandstratton.com

Usually ships in 1 day

$

$20.34

0

46

Briggs & Stratton Part# 694039

Camshaft

Note: Obtain parts from www.briggsandstratton.com

Usually ships in 1 day

$

$61.48

0

287

Briggs & Stratton Part# 690940

Screw (Dipstick Tube)

Note: Obtain parts from www.briggsandstratton.com

Usually ships in 1 day

$

$3.34

0

523

Briggs & Stratton Part# 499621

Dipstick

Note: Obtain parts from www.briggsandstratton.com

Usually ships in 1 day

$

$13.52

0

524

Briggs & Stratton Part# 692296

Seal-O Ring (Dipstick Tube)

Note: Obtain parts from www.briggsandstratton.com

Usually ships in 1 day

$

$3.79

0

525

Briggs & Stratton Part# 495265

Tube-Dipstick

Note: Obtain parts from www.briggsandstratton.com

Usually ships in 1 day

$

$16.54

0

737

Briggs & Stratton Part# 692511

Screw (Oil Filter Adapter)

Note: Obtain parts from www.briggsandstratton.com

Usually ships in 6 to 12 days

$

$3.12

0

750

Briggs & Stratton Part# 691683

Screw (Oil Pump Cover)

Note: Obtain parts from www.briggsandstratton.com

Usually ships in 1 day

$

$3.12

0

842

Briggs & Stratton Part# 691031

Seal-O Ring (Dipstick Tube)

Note: Obtain parts from www.briggsandstratton.com

Usually ships in 1 day

$

$4.35

0

847

Briggs & Stratton Part# 692047

Dipstick Tube ASM

Note: Obtain parts from www.briggsandstratton.com

Usually ships same day

Not available

$

$

943

Briggs & Stratton Part# 692514

Seal-O Ring (Oil Pump Cover)

Note: Obtain parts from www.briggsandstratton.com

Usually ships in 6 to 12 days

$

$4.46

0

965

Briggs & Stratton Part# 692507

Cover?Pump, Oil

Note: Obtain parts from www.briggsandstratton.com

Usually ships in 6 to 12 days

$

$7.03

0

988

Briggs & Stratton Part# 692515

Gasket?Adapter, Oil

Note: Obtain parts from www.briggsandstratton.com

Usually ships in 6 to 12 days

$

$3.90

0

1024

Briggs & Stratton Part# 692508

Tube?Pump, Oil

Note: Obtain parts from www.briggsandstratton.com

Usually ships in 6 to 12 days

$

$32.97

0

1027

Briggs & Stratton Part# 692513

Filter?Oil

Note: Obtain parts from www.briggsandstratton.com

Usually ships in 1 day

$

$13.07

0

1028

Briggs & Stratton Part# 692516

Adapter?Filter, Oil

Note: Obtain parts from www.briggsandstratton.com

Usually ships same day

Not available

$

$

1055

Briggs & Stratton Part# 692623

Tube?Pump, Oil

Note: Obtain parts from www.briggsandstratton.com

Usually ships in 6 to 12 days

$

$6.92

0
