20057 - Toro Super Recycler Walk-Behind Mower (SN: 260000001 - 260999999) (2006) Engine Assembly Parts Diagram

Super Recycler Walk-Behind Mower

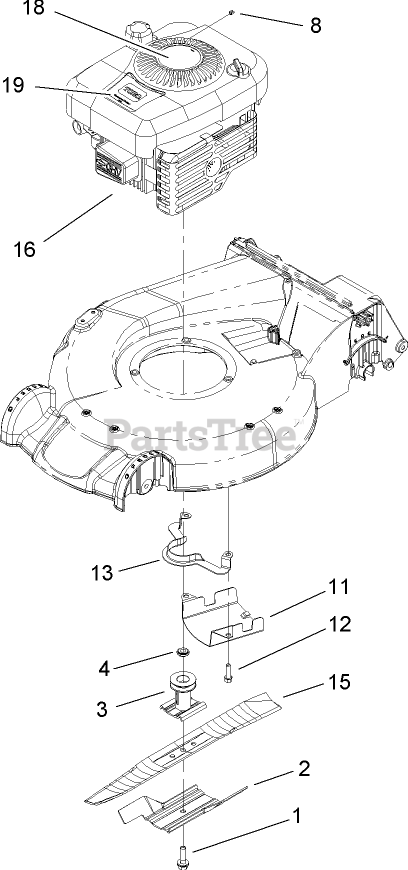

Engine Assembly Parts Diagram

  • Title

1

Toro 105-8579

See Supercession: 125-2466
(Superseded to 125-2466)

$3.99

$

In Stock, Qty 20+

0

2

Toro 105-6848-03

ACCELERATOR-BLADE

$19.99

$

In Stock, only 2 left!

0

3

Toro 106-3987

DRIVER-BLADE

$35.99

$

In Stock, only 3 left!

0

4

Toro 106-3999

SPACER-DRIVER

$3.99

$

In Stock, Qty 20+

0

8

Toro 2210-316

STOP-ROPE

$8.49

$

Usually ships in 3-6 days

0

11

Toro 107-7489-03

SHIELD-GRASS

$18.99

$

In Stock, only 2 left!

0

12

Toro 95-1727

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

13

Toro 108-8110-03

GUIDE-BELT

$17.99

$

In Stock, only 2 left!

0

15

Toro 108-3762-03

See Supercession: 133-8183-03
(Superseded to 108-3762-S)

$31.99

$

In Stock, Qty 20+

0

16

Loose Parts Package

Note: Not serviced separately

$

$

Not available

16

Loose Parts Package

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

18

Toro 112-6406

DECAL-INTEK RECOIL

$

$

Not available

19

Toro 108-8132

DECAL-ENGINE

$

$

Not available
