20057 - Toro Super Recycler Walk-Behind Mower (SN: 260000001 - 260999999) (2006) Handle Assembly Parts Diagram

Super Recycler Walk-Behind Mower

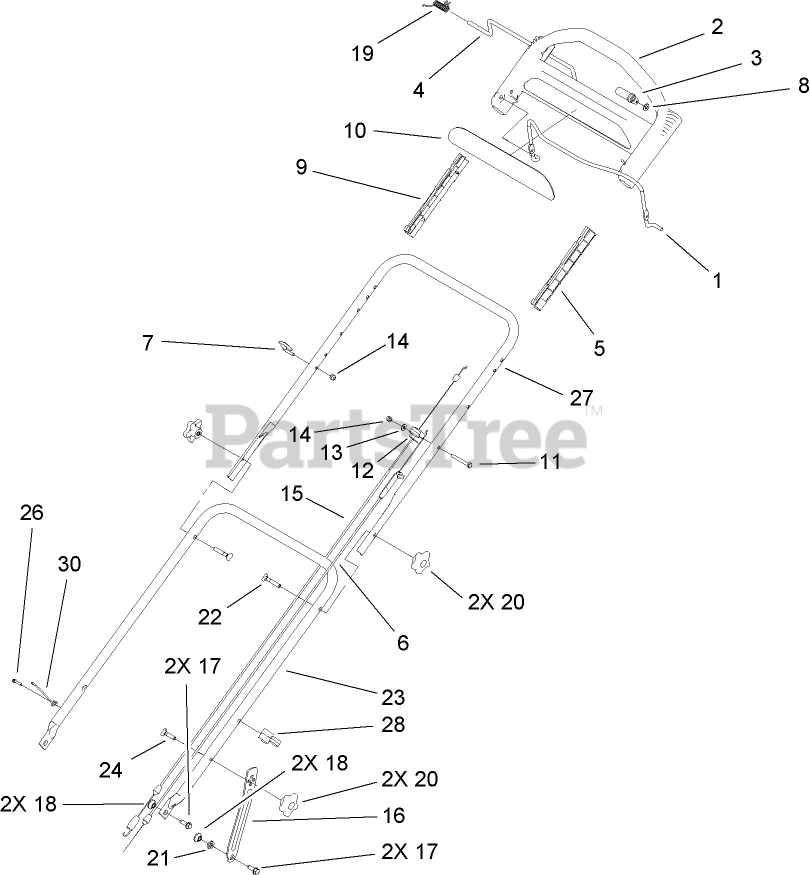

Handle Assembly Parts Diagram

  • Title

1

Toro 104-8679-03

See Supercession: 131-0880-03
(Superseded to 131-0880-03)

$27.99

$

In Stock, only 3 left!

0

2

Toro 104-8678

HANDLE-CONTROL

$90.99

$

In Stock, Qty 6

0

3

Toro 99-1589

LEVER-TRACTION

$8.49

$

In Stock, Qty 14

0

4

Toro 99-1588

See Supercession: 136-7150
(Superseded to 136-7150)

$18.99

$

In Stock, only 2 left!

0

5

Toro 105-6842

GUIDE-LH

$9.49

$

In Stock, only 1 left!

0

6

Toro 108-8157

CABLE-BRAKE

$45.99

$

In Stock, only 2 left!

0

7

Toro 86-9671

GUIDE-ROPE

$4.99

$

In Stock, Qty 10

0

8

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 18

0

9

Toro 105-6841

GUIDE-RH

$9.49

$

In Stock, Qty 5

0

10

Toro 108-8134

DECAL-HANDLE

$14.99

$

Usually ships in 3-6 days

0

11

Toro 95-4453

SCREW

$3.99

$

In Stock, Qty 20+

0

12

Toro 99-5239

See Supercession: 136-5864
(Superseded to 136-5864)

$3.49

$

In Stock, Qty 20+

0

13

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 11

0

14

Toro 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, Qty 13

0

15

Toro 108-8158

CABLE-TRACTION

$49.99

$

In Stock, Qty 8

0

16

Toro 108-8145-03

SUPPORT-HANDLE

$

$

Not available

17

Toro 701243

SCREW-THD ROLL, HWH

$2.99

$

In Stock, Qty 20+

0

18

Toro 27-6600

See Supercession: 125-9249
(Superseded to 125-9249)

$2.99

$

In Stock, only 3 left!

0

19

Toro 104-8690

See Supercession: 136-7166
(Superseded to 136-7166)

$3.49

$

In Stock, Qty 20+

0

20

Toro 108-8162

See Supercession: 117-5976
(Superseded to 117-5976)

$2.99

$

In Stock, Qty 19

0

21

Toro 55-9670

WASHER

$2.49

$

Usually ships in 3-6 days

0

22

Toro 92-2260

SCREW-HANDLE

$4.49

$

In Stock, Qty 20+

0

23

Toro 107-7476-05

HANDLE-LOWER

$142.99

$

Usually ships in 3-6 days

0

24

Toro 92-2260

SCREW-HANDLE

$4.49

$

In Stock, Qty 20+

0

26

Toro 32144-53

SCREW-SHWH, THREAD FORMING

$4.49

$

In Stock, only 3 left!

0

27

Toro 107-3783-05

HANDLE-UPPER

$

$

Not available

28

Toro 106-6805

See Supercession: 114-7988
(Superseded to 114-7988)

$2.99

$

In Stock, Qty 20+

0

30

Toro 108-9452

HOOK-ROPE, DISPLACEMENT

$6.99

$

Usually ships in 3-6 days

0
