20061 - Toro Recycler Walk-Behind Mower with Bag (SN: 099000001 - 099999999) (1999) REAR BAGGING DISCHARGE CHUTE ASSEMBLY Parts Diagram

Recycler Walk-Behind Mower with Bag

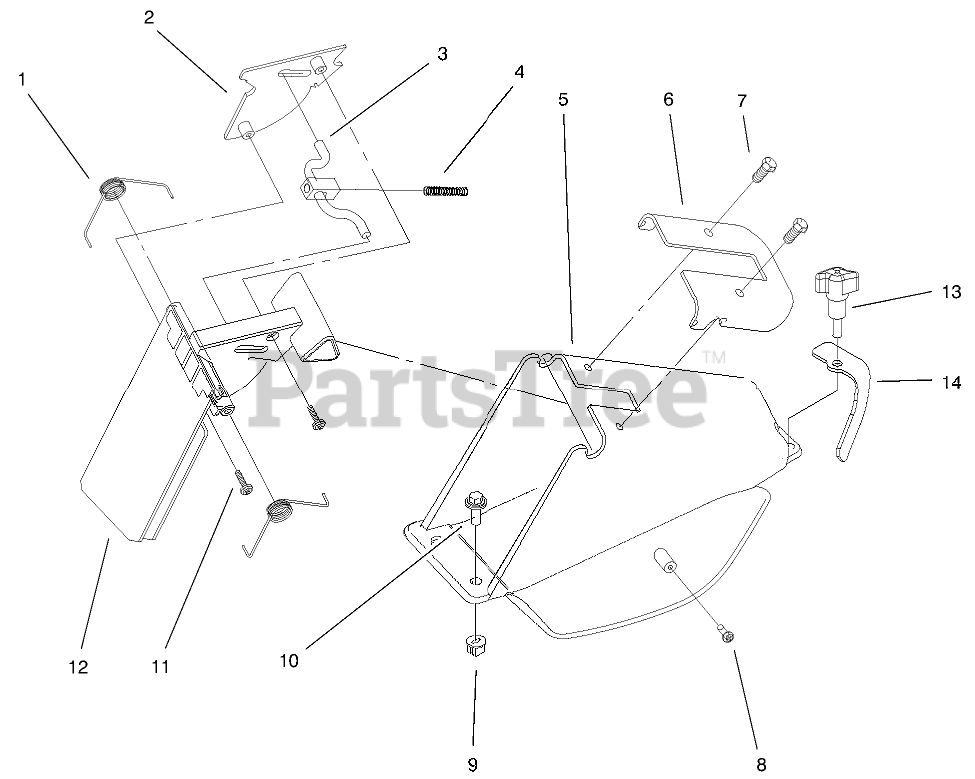

REAR BAGGING DISCHARGE CHUTE ASSEMBLY Parts Diagram

  • Title

1

Toro 88-1090

SPRING-DOOR, RH

$10.99

$

In Stock, only 2 left!

0

2

Toro 33-0441

DOOR COVER

$11.99

$

Usually ships in 3-6 days

0

3

Toro 88-1800

LATCH-DOOR

$

$

Not available

4

Toro 33-0450

SPRING-COMPRESSION, LATCH

$

$

Not available

5

Toro 93-0263

CHUTE - DISCHARGE
(Superseded to 94-1683)

$86.99

$

Usually ships in 3-6 days

0

6

Toro 93-0267-03

Plate-Discharg Chute
(Superseded to 98-2695)

$

$

Not available

7

Toro 46-8090

SCREW-PLASTITE

$

$

Not available

8

Toro 32144-111

SCREW-PPH

$0.99

$

In Stock, Qty 20+

0

9

Toro 93-0242

NUT - CLIP
(Superseded to 94-1610)

$0.99

$

In Stock, Qty 20+

0

10

Toro 46-6811

SCREW-HWH

$3.49

$

In Stock, Qty 7

0

11

Toro 32144-32

SCREW

$2.49

$

Usually ships in 3-6 days

0

12

Toro 93-0264

DOOR-DISCHARGE

$25.99

$

Usually ships in 3-6 days

0

13

Toro 100-1590

KNOB

$3.99

$

In Stock, only 2 left!

0

14

Toro 100-1589-03

CLAMP-DOOR

$16.99

$

Usually ships in 3-6 days

0
