20061 - Toro Recycler Walk-Behind Mower with Bag (SN: 099000001 - 099999999) (1999) Tecumseh Engine Model Vlv126-502080e (cont.) Parts Diagram

Recycler Walk-Behind Mower with Bag

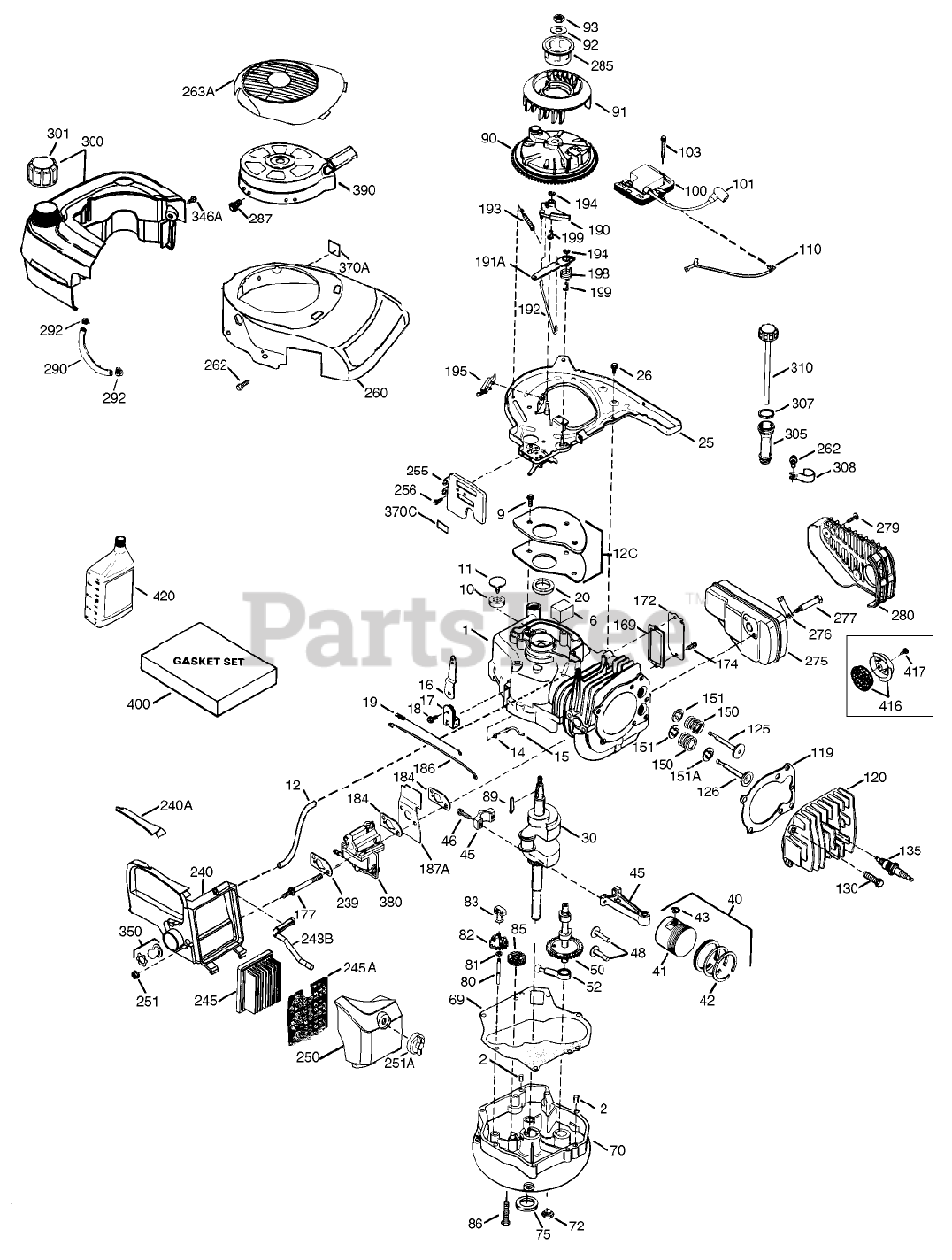

Tecumseh Engine Model Vlv126-502080e (cont.) Parts Diagram

  • Title

RPM High 2850 to 3150

$

$

Not available

1

Toro 36177

Cylinder (Incl. 2, 10, 12, 20 125)

$

$

Currently unavailable

2

Toro 27652

Pin-Dowel

$

$

Currently unavailable

6

Toro 36059

Breather Element

$

$

Not available

9

Toro 590568

Screw

$

$

Currently unavailable

10

Toro 36002

Breather Valve Body

$

$

Currently unavailable

11

Toro 36003A

Check Valve

$

$

Currently unavailable

12

Toro 32447

Breather Tube

$

$

Currently unavailable

12C

Toro 36005A

Breather Cover Gasket

$

$

Currently unavailable

14

Toro 28277

Washer-Flat

$

$

Currently unavailable

15

Toro 36006

Governor Rod (Machined)

$

$

Not available

16

Toro 36008

Governor Level

$

$

Currently unavailable

17

Toro 31335

Clamp-Lever, Governor

$

$

Currently unavailable

18

Toro 651018

Screw (T-15, 8-32 x 19/64)

$

$

Currently unavailable

19

Toro 36103

Governor Spring

$

$

Currently unavailable

20

Toro 36010

Oil Seal

$

$

Currently unavailable

25

Toro 37300

Blower Housing Baffle (Incl. 195)

$

$

Currently unavailable

26

Toro 650802

Screw (1/2-20x5/8)

$

$

Currently unavailable

30

Toro 37321

Crankshaft

$

$

Currently unavailable

40

Toro 40004

Piston, Pin and Ring Set (STD)

$

$

Not available

40

Toro 40005

Piston, Pin and Ring Set (.010 O S)
(Superseded to 92-3755)

$

$

Not available

41

Toro 36070

Piston Pin Ass-y.(Std.)(Incl. 43)

$

$

Currently unavailable

41

Toro 36071

Piston Pin Ass-y.(.010 OS)(Incl.43)

$

$

Currently unavailable

42

Toro 40006

FITTING - TANK 3/4"

$

$

Not available

42

Toro 40007

FITTING - TANK 1"

$

$

Not available

43

Toro 20381

Ring-Retaining, Piston Pin

$

$

Currently unavailable

45

Toro 36023A

Connecting Rod Ass-y. (Incl. 46)

$

$

Currently unavailable

46

Toro 32610A

Bolt-Rod, Connecting

$

$

Currently unavailable

48

Toro 36030

Valve Lifter

$

$

Not available

50

Toro 36031A

Camshaft (MCR)

$

$

Currently unavailable

52

Toro 29914

Oil Pump ASM

$

$

Currently unavailable

69

Toro 36032A

Mounting Flange Gasket

$

$

Currently unavailable

70

Toro 37271

Mounting Flange (Incl. 72 thru 85)

$

$

Currently unavailable

72

Toro 36083

Plug-Oil

$

$

Currently unavailable

75

Toro 36010

Oil Seal

$

$

Currently unavailable

80

Toro 30574A

Shaft-Governor

$

$

Currently unavailable

81

Toro 30590A

Washer-Flat

$

$

Currently unavailable

82

Toro 30591

Governor Gear ASM

$

$

Currently unavailable

83

Toro 36057

Spool-Governor

$

$

Currently unavailable

85

Toro 36034

Idler Gear

$

$

Currently unavailable

86

Toro 650924

Screw, 1/4-20x1-9/16"

$

$

Currently unavailable

89

Toro 611154

Flywheel Key

$

$

Currently unavailable

90

Toro 611155

NEEDS DESCRIPTION

$

$

Currently unavailable

91

Toro 611156

NEEDS DESCRIPTION

$

$

Currently unavailable

92

Toro 650815

Washer-Belleville

$

$

Currently unavailable

93

Toro 650816

Nut-Flywheel

$

$

Currently unavailable

100

Toro 34443B

Solid State Ignition (Incl. 101)

$

$

Currently unavailable

101

Toro 610118

Cover-Spark Plug

$

$

Currently unavailable

103

Toro 651007

Screw (T-15, 10-24 x 15/16)

$

$

Currently unavailable

110

Toro 36054

Tine Bolt
(Superseded to 701438)

$

$

Not available

119

Toro 36061

Cylinder Head Gasket

$

$

Currently unavailable

120

Toro 36187

Cylinder Head

$

$

Currently unavailable

125

Toro 36471

Exhaust Valve (Std.)(Incl. 151)

$

$

Not available

125

Toro 36472

Valve-Exhaust (1/32 O S)
(Superseded to 742719)

$

$

Not available

126

Toro 29314C

Intake Valve (Std.)(Incl. 151)

$

$

Currently unavailable

126

Toro 29315C

Valve, Intake (1/32" oversize)(Incl. No. 40)

$

$

Currently unavailable

130

Toro 6021A

Screw (5/16-18x1-1/2)

$

$

Currently unavailable

135

Toro 35395

Spark Plug-Resistor (R J19 L M)

$

$

Currently unavailable

150

Toro 31672

Spring-Valve

$

$

Currently unavailable

151

Toro 31673

Cap-Valve, Spring
(Superseded to 742357)

$

$

Not available

151A

Toro 40016A

Seal-Valve, Intake

$

$

Currently unavailable

169

Toro 27234A

Gasket-Cover, Valve

$

$

Currently unavailable

172

Toro 32755

Cover-Valve
(Superseded to 740513)

$

$

Not available

174

Toro 30200

Screw (10-24 x 9/16)

$

$

Currently unavailable

177

Toro 650925A

Carburetor Mounting Stud

$

$

Currently unavailable

184

Toro 36183

Carburetor To Intake Pipe Gasket

$

$

Currently unavailable

186

Toro 36009

Governor Link
(Superseded to 704793)

$524.99

$

Usually ships in 3-6 days

0

187A

Toro 37148

Air Baffle

$

$

Currently unavailable

190

Toro 36013

Brake Lever ASM

$

$

Currently unavailable

191A

Toro 36012

Brake Control Lever

$

$

Currently unavailable

192

Toro 36016

Brake Control Lever Link

$

$

Currently unavailable

193

Toro 36015

Brake Spring

$

$

Not available

194

Toro 36014

Retaining Ring

$

$

Currently unavailable

195

Toro 610973

Terminal

$

$

Currently unavailable

198

Toro 36017

Brake Control Lever Spring

$

$

Currently unavailable

199

Toro 36018

Brake Lever Bushing

$

$

Currently unavailable

239

Toro 36048

Carburetor To Air Cleaner Gasket
(Superseded to 742472)

$

$

Not available

240

Toro 36190

Air Cleaner Body

$

$

Currently unavailable

240A

Toro 37195

Air Cleaner Body Extension

$

$

Currently unavailable

243B

Toro 651041

Air Cleaner Stud

$

$

Currently unavailable

245

Toro 36046

Air Cleaner Filter

$

$

Currently unavailable

245A

Toro 37144

Air Cleaner Filter

$

$

Currently unavailable

250

Toro 36191

Air Cleaner Cover

$

$

Currently unavailable

251

Toro 650928

Lock Nut, 1/4-20

$

$

Currently unavailable

251A

Toro 650933

Wing Nut, 1/4-20

$

$

Currently unavailable

255

Toro 36193

Control Plate

$

$

Currently unavailable

256

Toro 650983

Screw, 8-32 x 21/64"

$

$

Currently unavailable

260

Toro 37194

Blower Housing

$

$

Currently unavailable

262

Toro 650737

Screw (1/4-20 x 1/2)

$

$

Currently unavailable

263A

Toro 36133

61743/9557984/39151

$3.23

$

Usually ships in 3-6 days

0

275

Toro 36107

Muffler

$

$

Currently unavailable

276

Toro 36043

Locking Plate

$

$

Currently unavailable

277

Toro 650927

Screw, 5/16-18 x 2-11/32"

$

$

Currently unavailable

279

Toro 650956

Screw, Torx T-25, 12-24 x 49/64"

$

$

Currently unavailable

280

Toro 36090

32076/VAR.W/32076/7

$3.23

$

Usually ships in 3-6 days

0

285

Toro 34449A

Starter Cup

$

$

Currently unavailable

287

Toro 650926

Screw (8-32 x 21/64)

$

$

Currently unavailable

290

Toro 34357

Fuel Line

$

$

Currently unavailable

292

Toro 26460

Clamp-Line, Fuel

$

$

Currently unavailable

300

Toro 36130

Fuel Tank (Incl. 301)

$

$

Currently unavailable

301

Toro 36246

Cap-Fuel

$

$

Currently unavailable

305

Toro 36063

Oil Fill Tube

$

$

Currently unavailable

307

Toro 35499

O-Ring

$

$

Currently unavailable

308

Toro 36040

Fill Tube Clip
(Superseded to 742470)

$

$

Not available

310

Toro 36064

Dipstick

$

$

Currently unavailable

346A

Toro 28763

Screw (10-32 x 35/64)

$

$

Currently unavailable

350

Toro 36045A

Primer

$

$

Currently unavailable

370A

Toro 36261

Decal-Lubrication

$

$

Currently unavailable

370C

Toro 37199

Primer Decal

$

$

Currently unavailable

380

Toro 640020A

Carburetor (Incl. 187B 239 of Engine Parts List)

$

$

Currently unavailable

390

Toro 590739

Rewind Starter ASM

$

$

Currently unavailable

400

Toro 36062D

Gasket Set (Incl. Items Marked PK in Notes) 0 Incl. part #-s 27234A (1),28833 (1), 36005A (1), 36032A (1), 36061 (1), 37136 (1), 696088 (1)

$

$

Currently unavailable

416

Toro 36085

Spark Arrestor Kit (Incl. 417)(Optional)

$

$

Currently unavailable

417

Toro 650821

Screw (10-32 x 1/2)

$

$

Currently unavailable

420

Toro 730225

4 Cycle Oil, SAE 30 (Quart)

$

$

Currently unavailable
