20071 A - Toro 22" Recycler Walk-Behind Mower (SN: 270000001 - 270999999) (2007) Engine and Blade Assembly Parts Diagram

22" Recycler Walk-Behind Mower

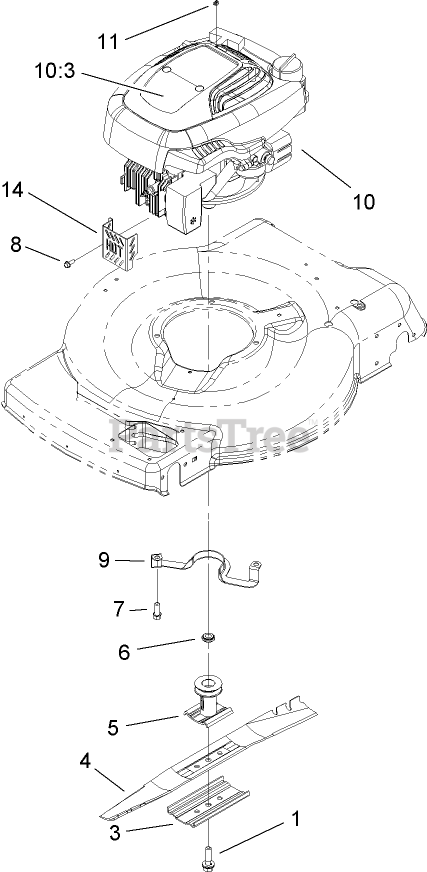

Engine and Blade Assembly Parts Diagram

  • Title

1

Toro 105-8579

See Supercession: 125-2466
(Superseded to 125-2466)

$3.99

$

In Stock, Qty 20+

0

3

Toro 108-3766-03

SUPPORT-BLADE

$11.99

$

In Stock, only 1 left!

0

4

Toro 108-9764-03

See Supercession: 131-4547-03
(Superseded to 131-4547-03)

$23.99

$

In Stock, Qty 20+

0

5

Toro 106-3987

DRIVER-BLADE

$35.99

$

In Stock, only 3 left!

0

6

Toro 106-3999

SPACER-DRIVER

$3.99

$

In Stock, Qty 20+

0

7

Toro 95-1726

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

8

Toro 32144-85

SCREW-HWH

$1.99

$

In Stock, Qty 20+

0

9

Toro 105-3031-03

GUIDE-BELT

$14.99

$

In Stock, Qty 9

0

10

Loose Parts Package

Note: Obtain parts from www.tecumsehpower.com

$

$

Not available

10

Loose Parts Package

Note: Not serviced separately

$

$

Not available

10:3

Toro 112-8874

DECAL-SHROUD, ENGINE

$45.99

$

In Stock, only 3 left!

0

11

Toro 92-1701

STOP-ROPE
(Superseded to 2210-316)

$8.49

$

Usually ships in 3-6 days

0

14

Toro 106-8346-03

GUARD-MUFFLER

$19.99

$

Usually ships in 3-6 days

0
