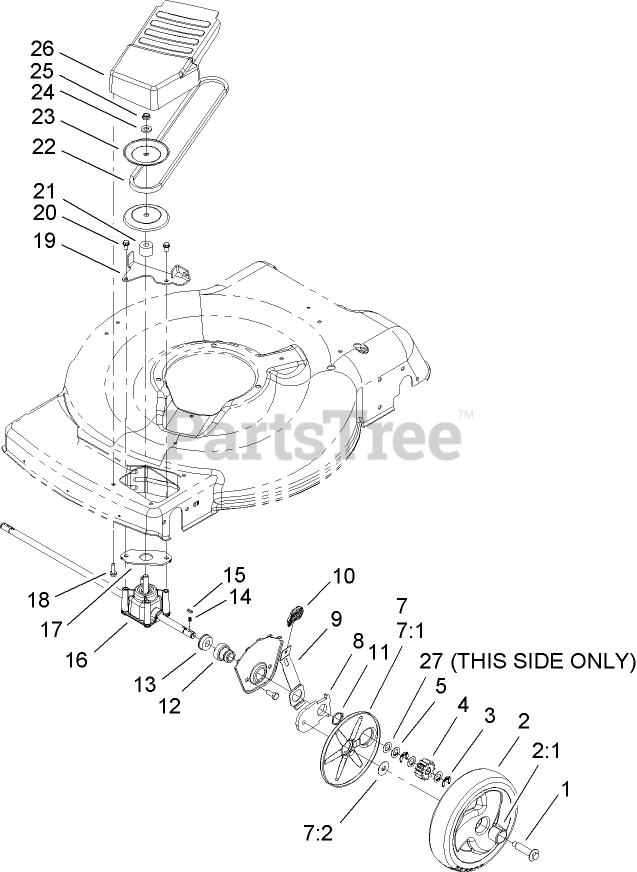

20071 A - Toro 22" Recycler Walk-Behind Mower (SN: 270000001 - 270999999) (2007) Front Axle and Transmission Assembly Parts Diagram

22" Recycler Walk-Behind Mower

Front Axle and Transmission Assembly Parts Diagram

  • Title

1

Toro 614650

BOLT-SHOULDER

$4.99

$

In Stock, Qty 20+

0

2

Toro 105-1815

WHEEL GEAR ASM

$53.99

$

In Stock, Qty 7

0

2:1

Toro 27-6250

BUSHING

$2.99

$

In Stock, Qty 20+

0

3

Toro 65-2720

RING-RETAINING,CLIP

$1.49

$

In Stock, Qty 20+

0

4

Toro 104-8670

GEAR-PINION, 13T

$22.99

$

In Stock, only 2 left!

0

5

Toro 105-6840

WASHER-THRUST

$2.49

$

In Stock, Qty 20+

0

7

Toro 110-1792

See Supercession: 127-6840
(Superseded to 127-6840)

$6.49

$

In Stock, Qty 20+

0

7:1

Loose Parts Package

Note: Not serviced separately

$

$

Not available

7:2

Toro 614426

WASHER-STEPPED

$2.99

$

In Stock, Qty 20+

0

8

Toro 105-1807

See Supercession: 137-9128
(Superseded to 137-9128)

$7.99

$

In Stock, Qty 6

0

9

Toro 105-1809

ARM-SPRING

$12.99

$

In Stock, Qty 5

0

10

Toro 105-3042

KNOB-LEVER, HOC

$4.99

$

In Stock, Qty 17

0

11

Toro 32151-36

RING-RETAINING

$4.99

$

In Stock, Qty 20+

0

12

Toro 104-8698

RETAINER-BEARING, HOC

$12.99

$

In Stock, Qty 15

0

13

Toro 104-8699

BEARING-BALL

$5.49

$

In Stock, Qty 20+

0

14

Toro 39-9650

SPRING-COMPRESSION

$3.99

$

In Stock, Qty 20+

0

15

Toro 612066

KEY

$2.99

$

In Stock, Qty 20+

0

16

Toro 106-3955

TRANSMISSION ASM

$123.99

$

In Stock, only 4 left!

0

17

Toro 108-9756

GASKET-GEARBOX

$1.49

$

In Stock, Qty 11

0

18

Toro 46-8091

SCREW-HWH

$4.49

$

In Stock, Qty 20+

0

19

Toro 105-1833-03

BRACKET-PIVOT, FWD

$19.99

$

In Stock, only 2 left!

0

20

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

21

Toro 92-5791

SPACER

$11.99

$

In Stock, Qty 13

0

22

Toro 91-2258

BELT-V

$19.99

$

In Stock, Qty 8

0

23

Toro 104-8691

PULLEY-HALF, FRONT

$18.99

$

In Stock, only 2 left!

0

24

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

25

Toro 3296-5

NUT-HEX

$3.99

$

In Stock, only 4 left!

0

26

Toro 105-1839

COVER-BELT, FRONT

$21.99

$

Usually ships in 3-6 days

0

27

Toro 36-4780

WASHER-PLAIN

$8.49

$

In Stock, Qty 12

0
