20071 A - Toro 22" Recycler Walk-Behind Mower (SN: 270000001 - 270999999) (2007) Rear Axle Assembly Parts Diagram

22" Recycler Walk-Behind Mower

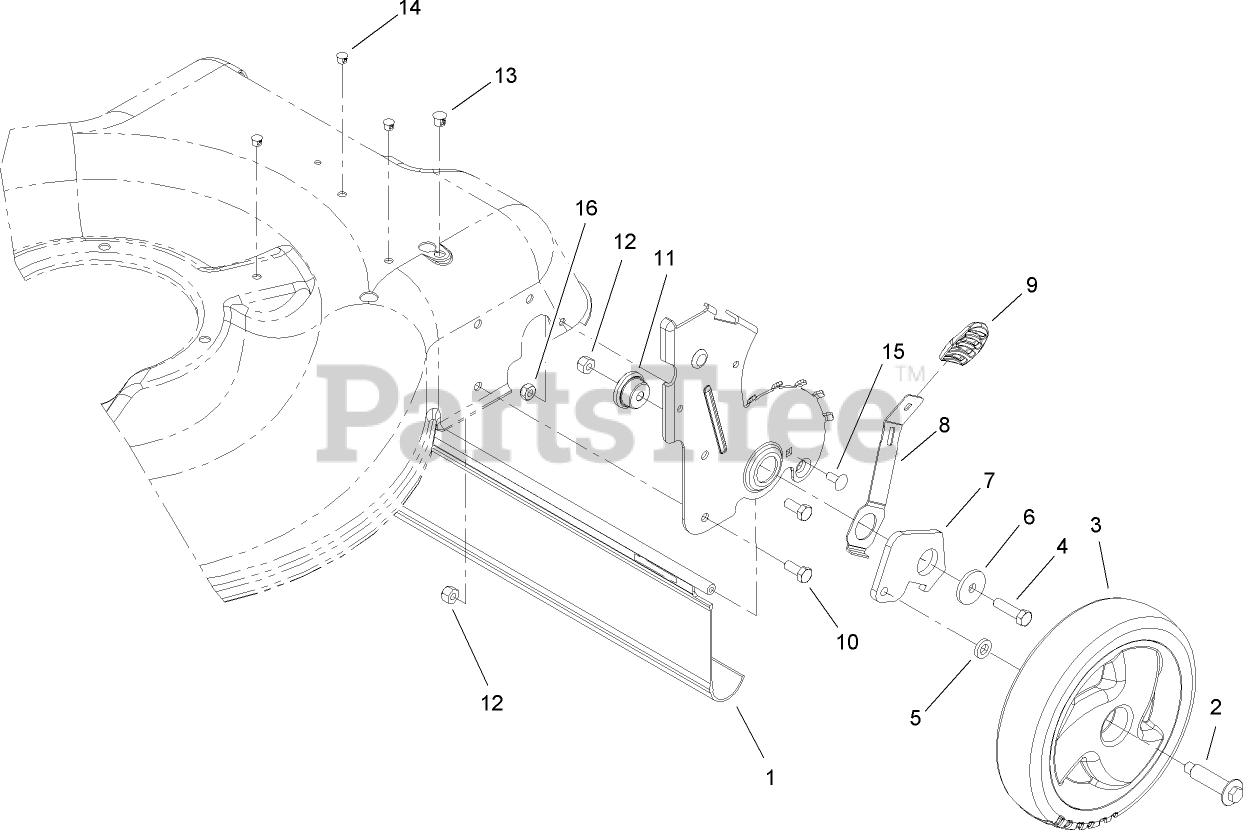

Rear Axle Assembly Parts Diagram

  • Title

1

Toro 114-1585

SHIELD-TRAILING

$25.99

$

In Stock, Qty 5

0

2

Toro 614650

BOLT-SHOULDER

$4.99

$

In Stock, Qty 20+

0

3

Toro 105-1814

WHEEL ASM (59505)

$31.99

$

In Stock, only 2 left!

0

4

Toro 322-6

SCREW-HH

$4.49

$

In Stock, Qty 17

0

5

Toro 110-7466

WASHER-BOLT, WHEEL

$4.49

$

In Stock, only 2 left!

0

6

Toro 105-3048

WASHER-FLAT

$1.49

$

In Stock, Qty 19

0

7

Toro 105-1819

ARM-PIVOT, REAR (LH)

$13.99

$

In Stock, only 2 left!

0

8

Toro 105-1809

ARM-SPRING

$12.99

$

In Stock, Qty 5

0

9

Toro 105-3042

KNOB-LEVER, HOC

$4.99

$

In Stock, Qty 17

0

10

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

11

Toro 105-1818

BUSHING-MOUNT, HOC

$5.49

$

In Stock, Qty 11

0

12

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

13

Toro 104-9368

PLUG-DOME

$0.99

$

In Stock, Qty 10

0

14

Toro 104-9373

PLUG-DOME

$1.99

$

In Stock, only 2 left!

0

15

Toro 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

16

Toro 3296-16

NUT-LOCK, NI

$1.99

$

In Stock, Qty 8

0
