20073 A - Toro 22" Recycler Walk-Behind Mower (SN: 270000001 - 270999999) (2007) Handle Assembly Parts Diagram

22" Recycler Walk-Behind Mower

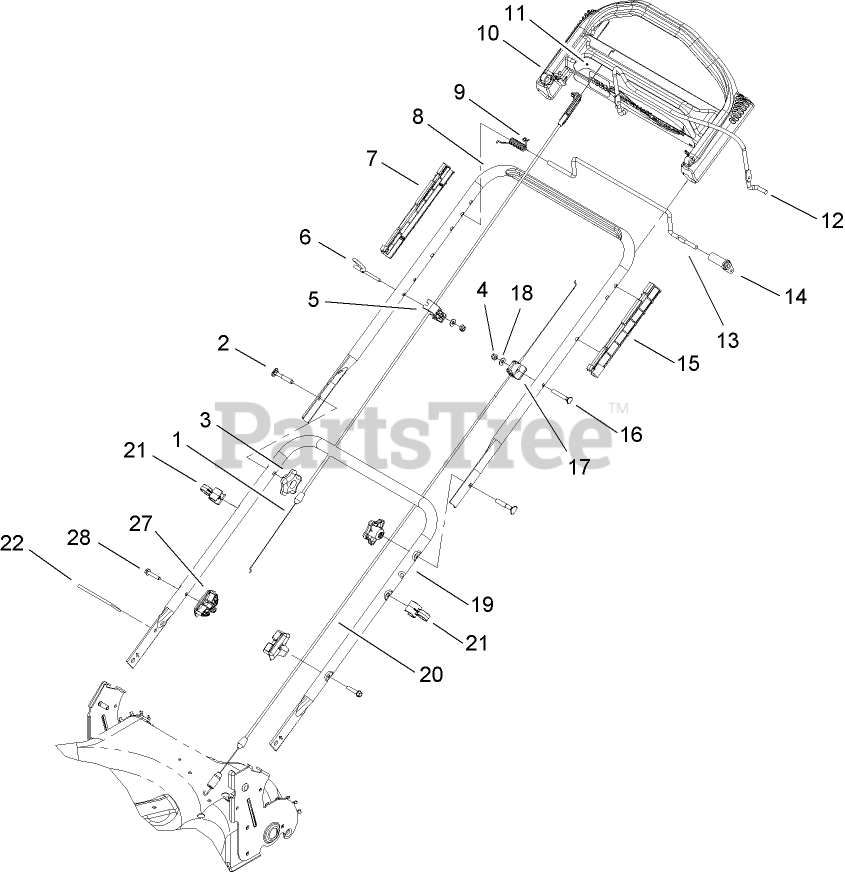

Handle Assembly Parts Diagram

  • Title

1

Toro 104-8676

CABLE-BRAKE

$34.99

$

In Stock, only 2 left!

0

2

Toro 112-8876

See Supercession: 92-2260
(Superseded to 92-2260)

$4.49

$

In Stock, Qty 20+

0

3

Toro 108-8162

See Supercession: 117-5976
(Superseded to 117-5976)

$2.99

$

In Stock, Qty 19

0

4

Toro 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, Qty 13

0

5

Toro 106-8331

ANCHOR-CABLE

$6.49

$

In Stock, Qty 6

0

6

Toro 106-8330

GUIDE-ROPE

$6.49

$

In Stock, only 1 left!

0

7

Toro 105-6841

GUIDE-RH

$9.49

$

In Stock, only 4 left!

0

8

Toro 104-8680-05

HANDLE-UPPER

$81.99

$

In Stock, only 4 left!

0

9

Toro 104-8690

See Supercession: 136-7166
(Superseded to 136-7166)

$3.49

$

In Stock, Qty 20+

0

10

Toro 104-8678

HANDLE-CONTROL

$90.99

$

In Stock, Qty 6

0

11

Toro 114-0338

DECAL-PACE, PERSONAL

$

$

Not available

12

Toro 104-8679-03

See Supercession: 131-0880-03
(Superseded to 131-0880-03)

$27.99

$

In Stock, only 3 left!

0

13

Toro 99-1588

See Supercession: 136-7150
(Superseded to 136-7150)

$18.99

$

In Stock, only 2 left!

0

14

Toro 99-1589

LEVER-TRACTION

$8.49

$

In Stock, Qty 14

0

15

Toro 105-6842

GUIDE-LH

$9.49

$

In Stock, only 1 left!

0

16

Toro 95-4453

SCREW

$3.99

$

In Stock, Qty 20+

0

17

Toro 92-7729

ANCHOR-CABLE, UPPER

$5.49

$

In Stock, only 2 left!

0

18

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 11

0

19

Toro 112-6440-05

HANDLE-LOWER

$73.99

$

In Stock, only 1 left!

0

20

Toro 105-1844

CABLE-TRACTION

$26.99

$

In Stock, only 4 left!

0

21

Toro 106-6805

See Supercession: 114-7988
(Superseded to 114-7988)

$2.99

$

In Stock, Qty 20+

0

22

Toro 614249

TIE-CABLE

$1.49

$

In Stock, Qty 18

0

27

Toro 108-9788

ANCHOR-BAG

$4.49

$

Usually ships in 3-6 days

0

28

Toro 32144-110

SCREW-HWH

$1.49

$

In Stock, only 3 left!

0
