20076 A - Toro 22" Recycler Walk-Behind Mower (SN: 270000001 - 270999999) (2007) Engine Assembly No. 1 Tecumseh LV195EA-362086D Parts Diagram

22" Recycler Walk-Behind Mower

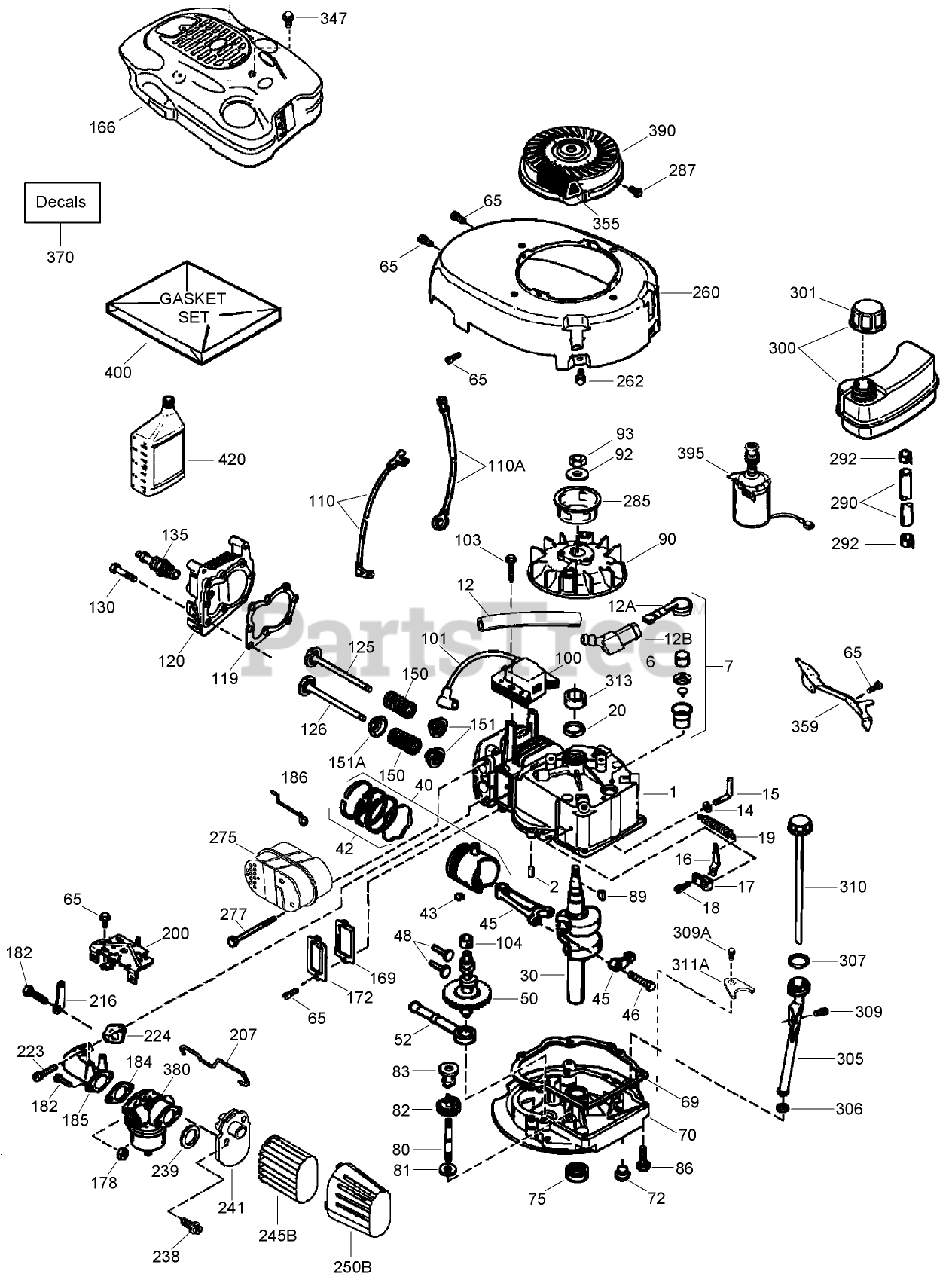

Engine Assembly No. 1 Tecumseh LV195EA-362086D Parts Diagram

  • Title

1

Tecumseh 37465

Cylinder ASM

Note: Obtain parts from www.tecumsehpower.com

$

$

Not available

2

Tecumseh 26727

Pin-Dowel

Note: Obtain parts from www.tecumsehpower.com

$1.99

$

In Stock, only 3 left!

0

6

Tecumseh 33734

Element-Breather

Note: Obtain parts from www.tecumsehpower.com

$1.99

$

In Stock, Qty 20+

0

7

Tecumseh 36557

Breather ASM (Incl. Ref. #6 and 12A)

Note: Obtain parts from www.tecumsehpower.com

$

$

Not available

12

Tecumseh 37944

Tube-Breather

Note: Obtain parts from www.tecumsehpower.com

$2.99

$

In Stock, Qty 20+

0

12A

Tecumseh 36558

Breather Cover and Tube (Incl. Ref. #12B)

Note: Obtain parts from www.tecumsehpower.com

$10.99

$

In Stock, Qty 18

0

12B

Tecumseh 36694

Elbow-Tube, Breather

Note: Obtain parts from www.tecumsehpower.com

$1.99

$

In Stock, Qty 20+

0

14

Tecumseh 28277

Washer-Flat

Note: Obtain parts from www.tecumsehpower.com

$1.99

$

In Stock, only 4 left!

0

15

Tecumseh 30589

Rod, Governor (Incl. No. 36)

Note: Obtain parts from www.tecumsehpower.com

$5.49

$

In Stock, only 1 left!

0

16

Tecumseh 34839A

Lever-Governor

Note: Obtain parts from www.tecumsehpower.com

$1.99

$

In Stock, Qty 6

0

17

Tecumseh 31335

Clamp-Lever, Governor

Note: Obtain parts from www.tecumsehpower.com

$1.99

$

In Stock, Qty 8

0

18

Tecumseh 651018

Screw (T-15, 8-32 x 19/64)

Note: Obtain parts from www.tecumsehpower.com

$1.99

$

In Stock, Qty 6

0

19

Tecumseh 36281

Spring-Extension

Note: Obtain parts from www.tecumsehpower.com

$1.49

$

In Stock, Qty 20+

0

20

Tecumseh 32600

Seal-Oil

Note: Obtain parts from www.tecumsehpower.com

$

$

Not available

30

Tecumseh 38001

Crankshaft

Note: Obtain parts from www.tecumsehpower.com

$104.99

$

Usually ships in 3-12 days

0

40

Tecumseh 40044

Piston, Pin and Ring Set (STD)

Note: Obtain parts from www.tecumsehpower.com

$77.99

$

Usually ships in 3-12 days

0

40

Tecumseh 40045

Piston, Pin and Ring Set (.010 O S)

Note: Obtain parts from www.tecumsehpower.com

$

$

Not available

42

Tecumseh 40006

FITTING - TANK 3/4"

Note: Obtain parts from www.tecumsehpower.com

$42.99

$

In Stock, only 2 left!

0

42

Tecumseh 40007

FITTING - TANK 1"
(Superseded to 40045)

Note: Obtain parts from www.tecumsehpower.com

$

$

Not available

43

Tecumseh 20381

Ring-Retaining, Piston Pin

Note: Obtain parts from www.tecumsehpower.com

$1.99

$

In Stock, only 2 left!

0

45

Tecumseh 36777

Connecting Rod ASM (Incl. Ref. #46)
(Superseded to 36777A)

Note: Obtain parts from www.tecumsehpower.com

$

$

Not available

46

Tecumseh 32610A

Bolt-Rod, Connecting

Note: Obtain parts from www.tecumsehpower.com

$1.99

$

In Stock, only 2 left!

0

48

Tecumseh 27241

Lifter-Valve

Note: Obtain parts from www.tecumsehpower.com

$5.49

$

In Stock, only 2 left!

0

50

Tecumseh 37460

Camshaft (Exhaust MCR) (Incl. Ref. #104)

Note: Obtain parts from www.tecumsehpower.com

$83.99

$

Usually ships in 3-12 days

0

52

Tecumseh 29914

Oil Pump ASM

Note: Obtain parts from www.tecumsehpower.com

$9.49

$

Usually ships in 3-12 days

0

65

Tecumseh 30200

Screw (10-24 x 9/16)

Note: Obtain parts from www.tecumsehpower.com

$1.49

$

In Stock, Qty 18

0

69

Tecumseh 37609

Gasket-Flange, Mounting

Note: Obtain parts from www.tecumsehpower.com

$2.99

$

In Stock, Qty 20+

0

70

Tecumseh 37608A

Mounting Flange ASM

Note: Obtain parts from www.tecumsehpower.com

$77.99

$

Usually ships in 3-12 days

0

72

Tecumseh 37614

Plug-Drain, Oil

Note: Obtain parts from www.tecumsehpower.com

$5.99

$

In Stock, only 1 left!

0

75

Tecumseh 27897

Seal-Oil

Note: Obtain parts from www.tecumsehpower.com

$8.49

$

In Stock, Qty 20+

0

80

Tecumseh 30574A

Shaft-Governor

Note: Obtain parts from www.tecumsehpower.com

$7.49

$

In Stock, only 2 left!

0

81

Tecumseh 30590A

Washer-Flat
(Superseded to 651080)

Note: Obtain parts from www.tecumsehpower.com

$1.99

$

In Stock, only 2 left!

0

82

Tecumseh 30591

Governor Gear ASM

Note: Obtain parts from www.tecumsehpower.com

$13.99

$

In Stock, Qty 9

0

83

Tecumseh 30588A

Spool-Governor

Note: Obtain parts from www.tecumsehpower.com

$1.99

$

In Stock, Qty 14

0

86

Tecumseh 650488

Screw (1/4-20 x 1-1/4)

Note: Obtain parts from www.tecumsehpower.com

$1.99

$

In Stock, only 1 left!

0

89

Tecumseh 611298

DISCONTINUED

Note: Obtain parts from www.tecumsehpower.com

$1.49

$

In Stock, only 2 left!

0

90

Tecumseh 611179

Flywheel

Note: Obtain parts from www.tecumsehpower.com

$134.99

$

Usually ships in 3-12 days

0

92

Tecumseh 650815

Washer-Belleville

Note: Obtain parts from www.tecumsehpower.com

$1.99

$

In Stock, only 4 left!

0

93

Tecumseh 650816

Nut-Flywheel

Note: Obtain parts from www.tecumsehpower.com

$4.49

$

In Stock, Qty 9

0

100

Tecumseh 34443C

Ignition-State, Solid
(Superseded to 34443D)

Note: Obtain parts from www.tecumsehpower.com

$44.99

$

In Stock, Qty 20+

0

101

Tecumseh 611289

Cover-Spark Plug

Note: Obtain parts from www.tecumsehpower.com

$2.99

$

Usually ships in 3-12 days

0

103

Tecumseh 651007

Screw (T-15, 10-24 x 15/16)

Note: Obtain parts from www.tecumsehpower.com

$1.99

$

In Stock, Qty 5

0

104

Tecumseh 37480

Bushing-Cam

Note: Obtain parts from www.tecumsehpower.com

$1.99

$

Usually ships in 3-12 days

0

110

Tecumseh 37682

Wire-Ground

Note: Obtain parts from www.tecumsehpower.com

$3.49

$

Usually ships in 3-12 days

0

110A

Tecumseh 36953

Wire ASM

Note: Obtain parts from www.tecumsehpower.com

$

$

Not available

119

Tecumseh 37796

Gasket-Head, Cylinder

Note: Obtain parts from www.tecumsehpower.com

$9.99

$

In Stock, Qty 9

0

120

Tecumseh 37714

Head-Cylinder

Note: Obtain parts from www.tecumsehpower.com

$

$

Not available

125

Tecumseh 37288

Valve-Exhaust (Std.) (Incl. Ref. #151)

Note: Obtain parts from www.tecumsehpower.com

$

$

Not available

126

Tecumseh 37289

Valve-Intake (Std.) (Incl. Ref. #151 and 151A)

Note: Obtain parts from www.tecumsehpower.com

$

$

Not available

130

Tecumseh 6021A

Screw (5/16-18x1-1/2)

Note: Obtain parts from www.tecumsehpower.com

$1.99

$

In Stock, only 4 left!

0
