20090 C - Toro Super Recycler Walk-Behind Mower (SN: 280000001 - 280999999) (2008) CARBURETOR ASSEMBLY BRIGGS AND STRATTON 126T02-0236-B1 Parts Diagram

Super Recycler Walk-Behind Mower

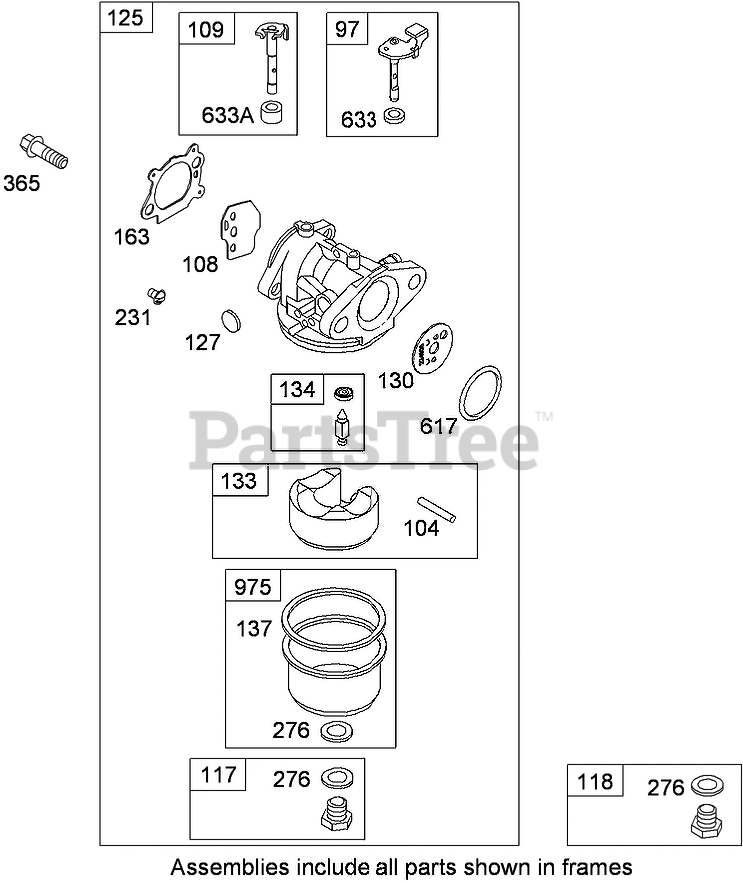

CARBURETOR ASSEMBLY BRIGGS AND STRATTON 126T02-0236-B1 Parts Diagram

  • Title

97

Briggs & Stratton 696565

Shaft-Throttle

Note: Obtain parts from www.briggsandstratton.com

$17.99

$

In Stock, only 2 left!

0

104

Briggs & Stratton 691242

Pin-Hinge, Float
(Superseded to 797622)

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, Qty 12

0

104

Briggs & Stratton 691242

Pin-Hinge, Float
(Superseded to 797622)

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$4.49

$

In Stock, Qty 12

0

108

Briggs & Stratton 790844

Valve-Choke

Note: Obtain parts from www.briggsandstratton.com

$10.99

$

In Stock, only 1 left!

0

109

Briggs & Stratton 790843

Shaft-Choke
(Superseded to 796193)

Note: Obtain parts from www.briggsandstratton.com

$15.99

$

In Stock, only 1 left!

0

117

Briggs & Stratton 691428

Jet-Main (Standard)

Note: Obtain parts from www.briggsandstratton.com

$21.99

$

Usually ships in 2-12 days

0

118

Briggs & Stratton 498977

Jet-Main (High Altitude)

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

125

Briggs & Stratton 794304

Carburetor
(Superseded to 799866)

Note: Obtain parts from www.briggsandstratton.com

$68.99

$

Usually ships in 2-12 days

0

127

Briggs & Stratton 694468

Plug-Welch

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

In Stock, only 3 left!

0

127

Briggs & Stratton 694468

Plug-Welch

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$4.99

$

In Stock, only 3 left!

0

130

Briggs & Stratton 696564

Valve-Throttle

Note: Obtain parts from www.briggsandstratton.com

$9.99

$

Usually ships in 2-12 days

0

133

Briggs & Stratton 398187

Float-Carburetor

Note: Obtain parts from www.briggsandstratton.com

$10.99

$

In Stock, Qty 10

0

134

Briggs & Stratton 398188

Needle and Seat Kit

Note: Obtain parts from www.briggsandstratton.com

$6.99

$

In Stock, Qty 20+

0

134

Briggs & Stratton 398188

Needle and Seat Kit

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$6.99

$

In Stock, Qty 20+

0

137

Briggs & Stratton 693981

Gasket-Bowl, Float

Note: Included in Carburetor Gasket Set (Ref. No. 977)

$3.99

$

In Stock, Qty 20+

0

137

Briggs & Stratton 693981

Gasket-Bowl, Float

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, Qty 20+

0

137

Briggs & Stratton 693981

Gasket-Bowl, Float

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$3.99

$

In Stock, Qty 20+

0

163

Toro 272653s

Gasket-Cleaner, Air

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

163

Toro 272653s

Gasket-Cleaner, Air

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$

$

Currently unavailable

163

Toro 272653s

Gasket-Cleaner, Air

Note: Included in Engine Gasket Set (Ref. No. 358)

$

$

Currently unavailable

163

Toro 272653s

Gasket-Cleaner, Air

Note: Included in Carburetor Gasket Set (Ref. No. 977)

$

$

Currently unavailable

231

Briggs & Stratton 691636

Screw (Choke Valve)

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, Qty 12

0

276

Briggs & Stratton 271716

Washer-Sealing

Note: Obtain parts from www.briggsandstratton.com

$7.49

$

In Stock, Qty 20+

0

276

Briggs & Stratton 271716

Washer-Sealing

Note: Included in Carburetor Gasket Set (Ref. No. 977)

$7.49

$

In Stock, Qty 20+

0

276

Briggs & Stratton 271716

Washer-Sealing

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$7.49

$

In Stock, Qty 20+

0

365

Briggs & Stratton 692524

Screw (Carburetor)
(Superseded to 691688)

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, Qty 8

0

617

Toro 270344s

Seal-O Ring (Intake Manifold)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

617

Toro 270344s

Seal-O Ring (Intake Manifold)

Note: Included in Carburetor Gasket Set (Ref. No. 977)

$

$

Currently unavailable

617

Toro 270344s

Seal-O Ring (Intake Manifold)

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$

$

Currently unavailable

633

Briggs & Stratton 691321

Seal-Shaft, Choke Throttle

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$4.99

$

In Stock, Qty 10

0

633

Briggs & Stratton 691321

Seal-Shaft, Choke Throttle

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

In Stock, Qty 10

0

633

Briggs & Stratton 691321

Seal-Shaft, Choke Throttle

Note: Included in Carburetor Gasket Set (Ref. No. 977)

$4.99

$

In Stock, Qty 10

0

633A

Briggs & Stratton 693867

Seal-Shaft, Choke Throttle

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

In Stock, only 3 left!

0

633A

Briggs & Stratton 693867

Seal-Shaft, Choke Throttle

Note: Included in Carburetor Gasket Set (Ref. No. 977)

$5.49

$

In Stock, only 3 left!

0

633A

Briggs & Stratton 693867

Seal-Shaft, Choke Throttle

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$5.49

$

In Stock, only 3 left!

0

975

Briggs & Stratton 493640

Bowl-Float
(Superseded to 796611)

Note: Obtain parts from www.briggsandstratton.com

$7.49

$

In Stock, only 1 left!
