20099 - Toro Super Recycler Walk-Behind Mower (SN: 280000001 - 280999999) (2008) Engine Assembly Kohler XT173-0003 Parts Diagram

Super Recycler Walk-Behind Mower

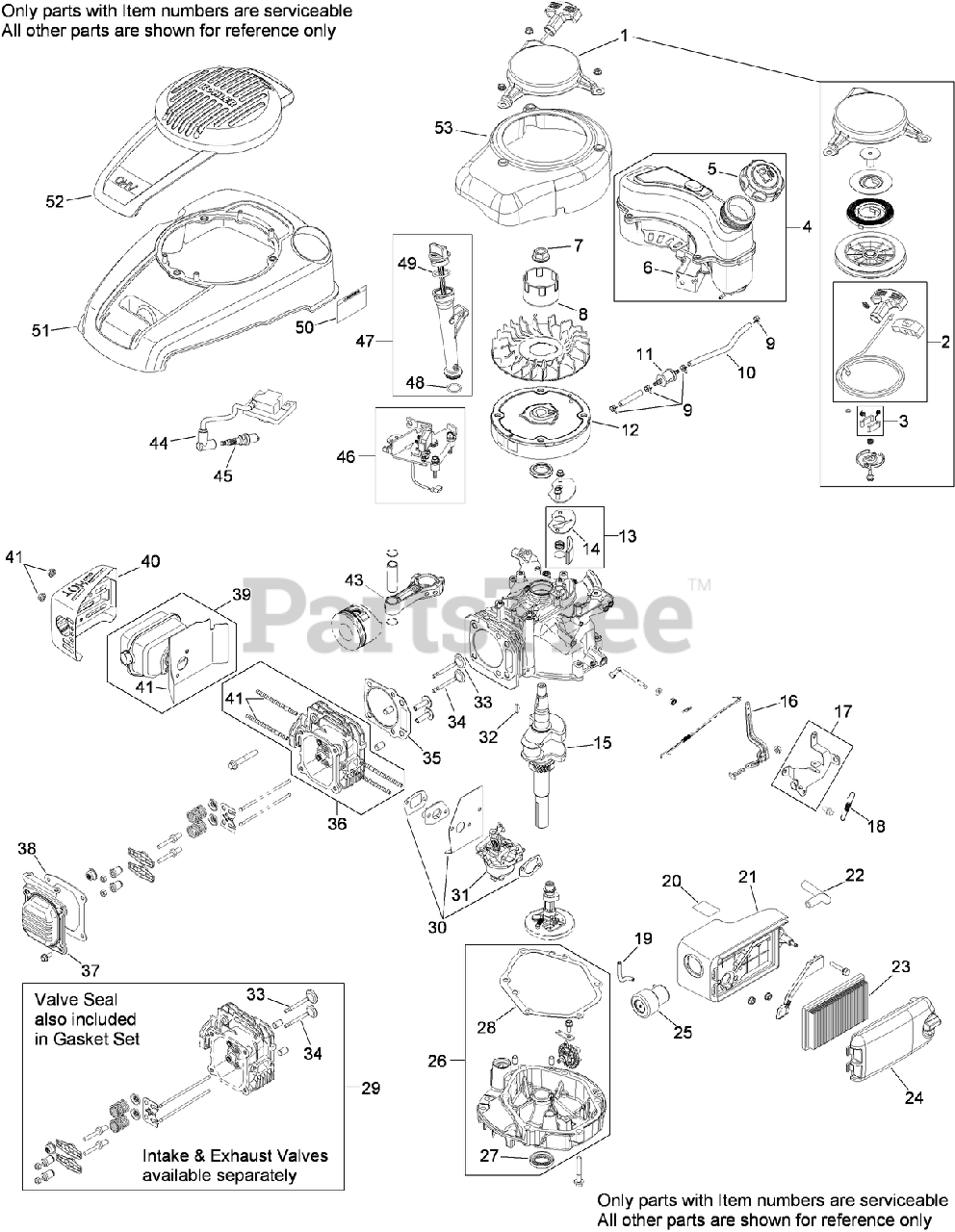

Engine Assembly Kohler XT173-0003 Parts Diagram

  • Title

1

Toro 14 165 01-S

STARTER-RECOIL (INCLUDES 2, 3, RECOIL HOUSING, BUSHING, GUIDE PLATE, SPRINGS, PULLEY, RETAINER PLATE, SHOULDER SCREW)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

2

Toro 14 160 01-S

STARTER ROPE W/ HANDLE KIT (INCLUDES COIL STARTER ROPE, RECOIL STARTER HANDLE, STARTER HANDLE RETAINER, ROPE RETAINER)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

3

Toro 14 379 01-S

PAWL REPAIR KIT (INCLUDES RECOIL SPRING, STARTER PAWL)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

4

Toro 14 065 08-S

FUEL TANK KIT (INCLUDES 5, 6)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

5

Toro 14 227 04-S

FUEL CAP ASM

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

6

Toro 14 126 16-S

BRACKET-TANK, FUEL (LOWER)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

7

Toro 14 100 02-S

NUT-FLYWHEEL

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

8

Toro 14 109 02-S

CUP-DRIVE

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

9

Toro 14 237 01-S

CLAMP-LINE, FUEL

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

10

Toro 25 111 40-S

LINE-FUEL (10-CUT TO LENGTH)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

11

Toro 25 050 07-S

Filter-Fuel

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

12

Toro 14 025 02-S

FLYWHEEL (ALUMINUM)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

13

Toro 14 050 01-S

BREATHER FILTER KIT (INCLUDES 14, BREATHER COVER SPRING, FILTER, REED)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

14

Toro 14 041 19-S

GASKET-COVER, BREATHER

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

15

Toro 14 014 04-S

CRANKSHAFT ASM

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

16

Toro 14 090 04-S

LEVER-GOVERNOR

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

17

Toro 14 126 11-S

BRACKET-CONTROL (FIXED SPEED)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

18

Toro 14 089 14-S

SPRING-GOVERNOR (2800-3300 RPM)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

19

Toro 14 326 04-S

HOSE-PRIMER

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

20

Toro 14 113 04-S

DECAL-PRIMER

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

21

Toro 14 094 06-S

AIR CLEANER BASE KIT (PRIMER) (INCLUDES AIR CLEANER BASE GASKET)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

22

Toro 14 123 01-S

TUBE-BREATHER

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

23

Toro 14 083 01-S

ELEMENT-CLEANER, AIR

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

24

Toro 14 096 09-S

COVER-CLEANER, AIR

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

25

Toro 14 390 04-S

PRIMER ASM KIT (EVAP) (INCLUDES AIR CLEANER BASE GASKET)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

26

Toro 14 199 01-S

OIL PAN KIT

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

27

Toro 14 032 05-S

SEAL-OIL (PTO)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

28

Toro 14 041 06-S

GASKET-PAN, OIL

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

29

Toro 14 755 02-S

VALVE TRAIN KIT (INCLUDES 33, 34, VALVE SPRING RETAINER, STEM SEAL, ROCKER ARM STUD, VALVE SPRING, JAM NUT, PUSHROD GUIDE PLATE, ROCKER ARM, CYLINDER HEAD DOWEL, PUSH ROD, ROCKER ARM PIVOT)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

30

Toro 14 041 05-S

CARBURETOR GASKET KIT (INCLUDES CARBURETOR HEAT SHIELD GASKET, SPACER GASKET, AIR CLEANER BASE GASKET)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

31

Toro 14 853 05-S

CARBURETOR KIT (PRIMER) W/GASKETS (INCLUDES 30)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

32

Toro 14 340 01-S

KEY-FLYWHEEL

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

33

Toro 14 017 01-S

VALVE-INTAKE

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

34

Toro 14 016 01-S

VALVE-EXHAUST

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

35

Toro 14 841 04-S

HEAD GASKET KIT (INCLUDES 30, MUFFLER GASKET)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

36

Toro 14 318 01-S

CYLINDER HEAD KIT (INCLUDES CARBURETOR STUD, EXHAUST STUD)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

37

Toro 14 096 05-S

VALVE COVER KIT (INCLUDES 38)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

38

Toro 14 041 01-S

GASKET-COVER, VALVE

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

39

Toro 14 068 01-S

MUFFLER KIT (INCLUDES MUFFLER GASKET)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

40

Toro 14 314 04-S

SHIELD-MUFFLER

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

41

Toro 14 072 06-S

EXHAUST HARDWARE KIT (INCLUDES MUFFLER GASKET, EXHAUST STUD AND FLANGE LOCK NUT)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

43

Toro 14 067 01-S

ROD-CONNECTING

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

44

Toro 14 584 05-S

MODULE-IGNITION (ALUM STD IGN)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

45

Toro 14 132 03-S

SPARK PLUG (K 5 R T C)
(Superseded to RC12YC)

Note: Obtain parts from www.kohlerplus.com

$3.99

$

Usually ships in 2-6 days

0

46

Toro 14 219 01-S

FLYWHEEL BRAKE KIT (INCLUDES BRAKE LEVER, BRAKE SPRING, FLANGE NUTS, BRAKE PAD, GROUND TO KILL LEADS, SCREWS, SWITCH INSULATORS, BRAKE SWITCH CONTACT, BRAKE SPACER, BRAKE BRACKET, FLANGE SCREW, BRAKE LEVER SCREW, NYLON FLATWASHER)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

47

Toro 14 123 04-S

DIPSTICK AND TUBE KIT (INCLUDES 48, 49)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

48

Toro 14 153 03-S

O RING-FILL TUBE, OIL

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

49

Toro 14 153 01-S

O RING-DIPSTICK

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

50

Toro 14 113 03-S

DECAL-WARNING

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

51

Toro 14 096 12-S

COVER-ENGINE (BLACK)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

52

Toro 14 332 05-S

INSERT-COVER, ENGINE (LOW PROFILE)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

53

Toro 14 027 01-S

HOUSING-BLOWER

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

Toro 14 755 01-S

GASKET SET (INCLUDES 27, 28, 30, 35, 38, 48, 49, BREATHER COVER GASKET, GOVERNOR LEVER OIL SEAL, VALVE STEM SEAL, MUFFLER GASKET, CRANKCASE/FLYWHEEL SEAL)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

Toro 14 755 01-S

GASKET SET (INCLUDES 27, 28, 30, 35, 38, 48, 49, BREATHER COVER GASKET, GOVERNOR LEVER OIL SEAL, VALVE STEM SEAL, MUFFLER GASKET, CRANKCASE/FLYWHEEL SEAL)

Note: Not illustrated

$

$

Currently unavailable
