200H - MTD Pro Hydro Walk-Behind Mower Standard Handle Assembly WT Parts Diagram

Pro Hydro Walk-Behind Mower

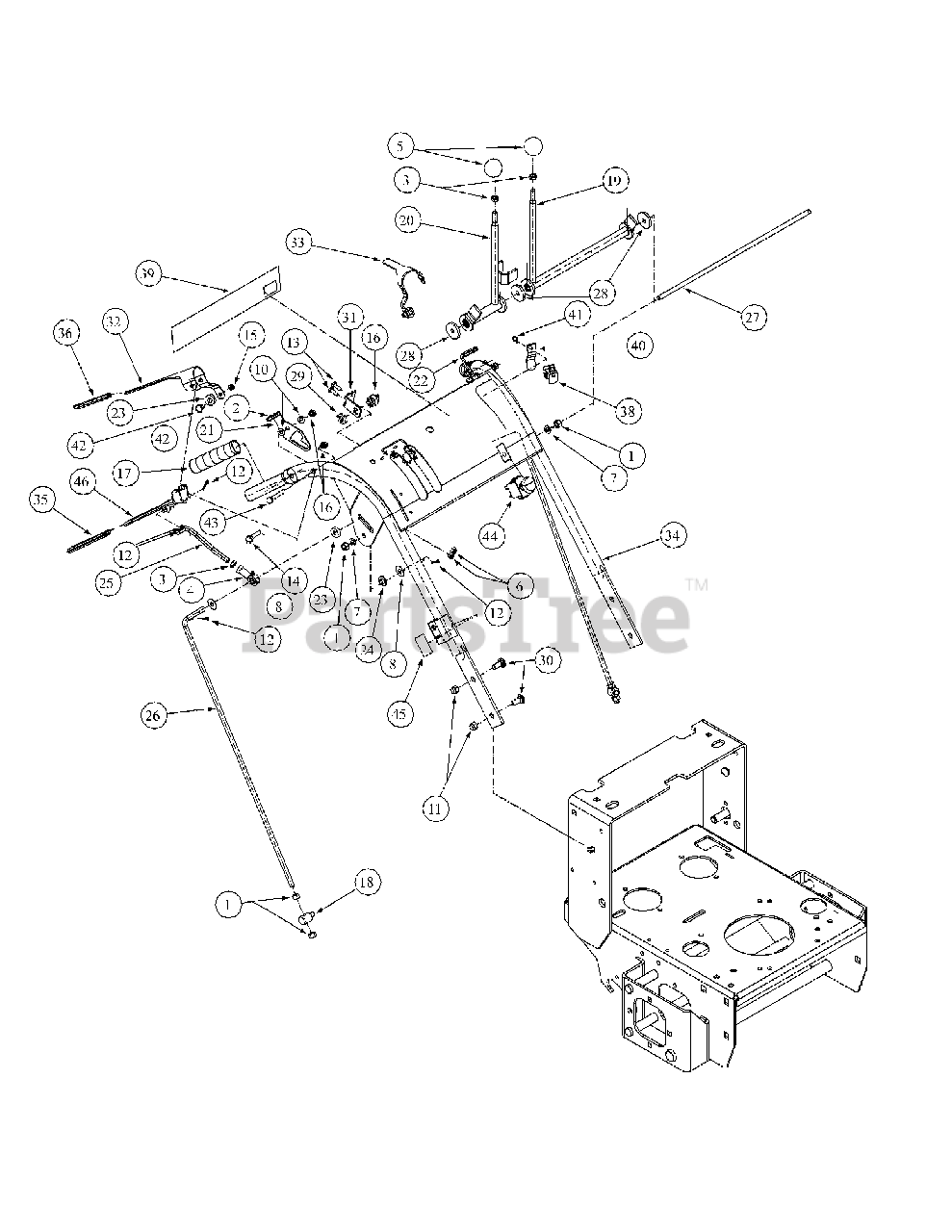

Standard Handle Assembly WT Parts Diagram

  • Title

1

MTD 912-3017

Hex Nut, 3/8-16
(Superseded to 712-3017)

$3.99

$

In Stock, Qty 20+

0

2

MTD 00011211

Grip, Neutral Latch, 1.25", Black

$8.99

$

In Stock, only 2 left!

0

3

MTD 00011453

Hex Nut, Jam 3/8-24

$3.49

$

Usually ships in 3-6 days

0

4

MTD 00012116

End Rod, 3/8 Female

Note: NLA

$

$

Not available

5

MTD 00012118

Knob, 1-3/8 x 1-19/64, 3/8-24

$

$

Not available

6

MTD 00012152

Lock Nut, Nylon Insert, 1/4-20

$3.99

$

In Stock, only 1 left!

0

7

MTD 936-0169

Lock Washer, 3/8
(Superseded to 736-0169)

$3.49

$

In Stock, Qty 20+

0

8

MTD 00012158

Flat Washer, 3/8

$4.49

$

In Stock, Qty 10

0

9

MTD 00012165

Nut, 5/16-18

$4.49

$

In Stock, only 1 left!

0

10

MTD 00012169

Flat Washer, 5/16

$4.49

$

In Stock, only 2 left!

0

11

MTD 712-04065

Lock Nut, Nylon Insert, 3/8-16

$3.99

$

In Stock, Qty 20+

0

12

MTD 00012562

Cotter Pin, 3/32 x 1/2

$

$

Not available

13

MTD 00013131

HHCS, 1/4-20, .75

$6.49

$

In Stock, only 1 left!

0

14

MTD 00013198

HHCS, Standard, 5/16 -18 x 2
(Superseded to 710-3103)

$4.49

$

In Stock, Qty 19

0

15

MTD 712-04177

Lock Nut, SS, Nylon Insert, 1/4-28

$6.49

$

In Stock, only 4 left!

0

16

MTD 00015903

Operator Presence Switch

$44.99

$

In Stock, only 1 left!

0

17

MTD 00030378

Grip, 4-5/8, Black, Plastic Handle

$

$

Not available

18

MTD 00036582

Pivot Belt Tightener

Note: NLA

$

$

Not available

19

MTD 00069943

Control Assembly, Speed, Hydro LH

$

$

Not available

20

MTD 00069952

Control Assembly, Speed, Hydro RH

$

$

Not available

21

MTD 00071310

Latch, RH Neutral Hydro

$

$

Not available

22

MTD 00071326

Latch, LH Neutral Hydro

$

$

Not available

23

MTD 00071691

Hydro Spacer Control Rod

$11.99

$

Usually ships in 3-6 days

0

24

MTD 00072892

Hydro Bushing Control Rod

$

$

Not available

25

MTD 00072930

Control Rod Short Hydro

$

$

Not available

26

MTD 00072937

Control Rod Long Hydro

$

$

Not available

27

MTD 00073092

Hydro Rod Speed Control

$

$

Not available

28

MTD 00077495

Friction Washer

$

$

Not available

29

MTD 00090995

Hex Nut, Dead Man Switch

$

$

Not available

30

MTD 01000643

Carriage Bolt, 3/8-16 x 2

$5.49

$

In Stock, Qty 10

0

31

MTD 01001378

Neutral Safety Mounting Switch

$

$

Not available

32

MTD 01001699

Operator's Presence Control, RH

Note: NLA

$

$

Not available

33

MTD 01001700

Operator's Presence Control, LH

$

$

Not available

34

MTD 01001708

Hydro Handle Assembly

$

$

Not available

35

MTD 01001714

Control Sleeve, Black

$10.99

$

Usually ships in 3-6 days

0

36

MTD 01001715

Operator's Presence Sleeve, Yellow

$10.99

$

Usually ships in 3-6 days

0

37

MTD 01001716

Harness Assembly Adapter

$

$

Not available

38

MTD 01001717

Snap Mounting Switch
(Superseded to 925-3166)

$15.99

$

In Stock, Qty 20+

0

39

MTD 01001718

Label Handle

$

$

Not available

40

MTD 01001863

Retension Spring

$

$

Not available

41

MTD 01001864

Screw, TT, 10-24, .500, HXINDWSH
(Superseded to 1767754)

$

$

Not available

42

MTD 01001919

Shoulder Screw, .38 x .412, 1/4-28
(Superseded to 938-0826)

$11.99

$

In Stock, Qty 7

0

43

MTD 01001972

HHCS, 5/16-18, 2.00

$3.99

$

Usually ships in 3-6 days

0

44

MTD 01002111

Switch, Electric PTO
(Superseded to 925-1716A)

$68.99

$

In Stock, Qty 20+

0

45

MTD 01002171

Decal, Parking Brake

$

$

Not available

46

MTD 01001561

Control Lever Assembly

$

$

Not available
