200Z (ZT 21546) (2691137-00) - Snapper 46" Zero-Turn Mower, 21.5hp RH Controls Group Parts Diagram

46" Zero-Turn Mower, 21.5hp

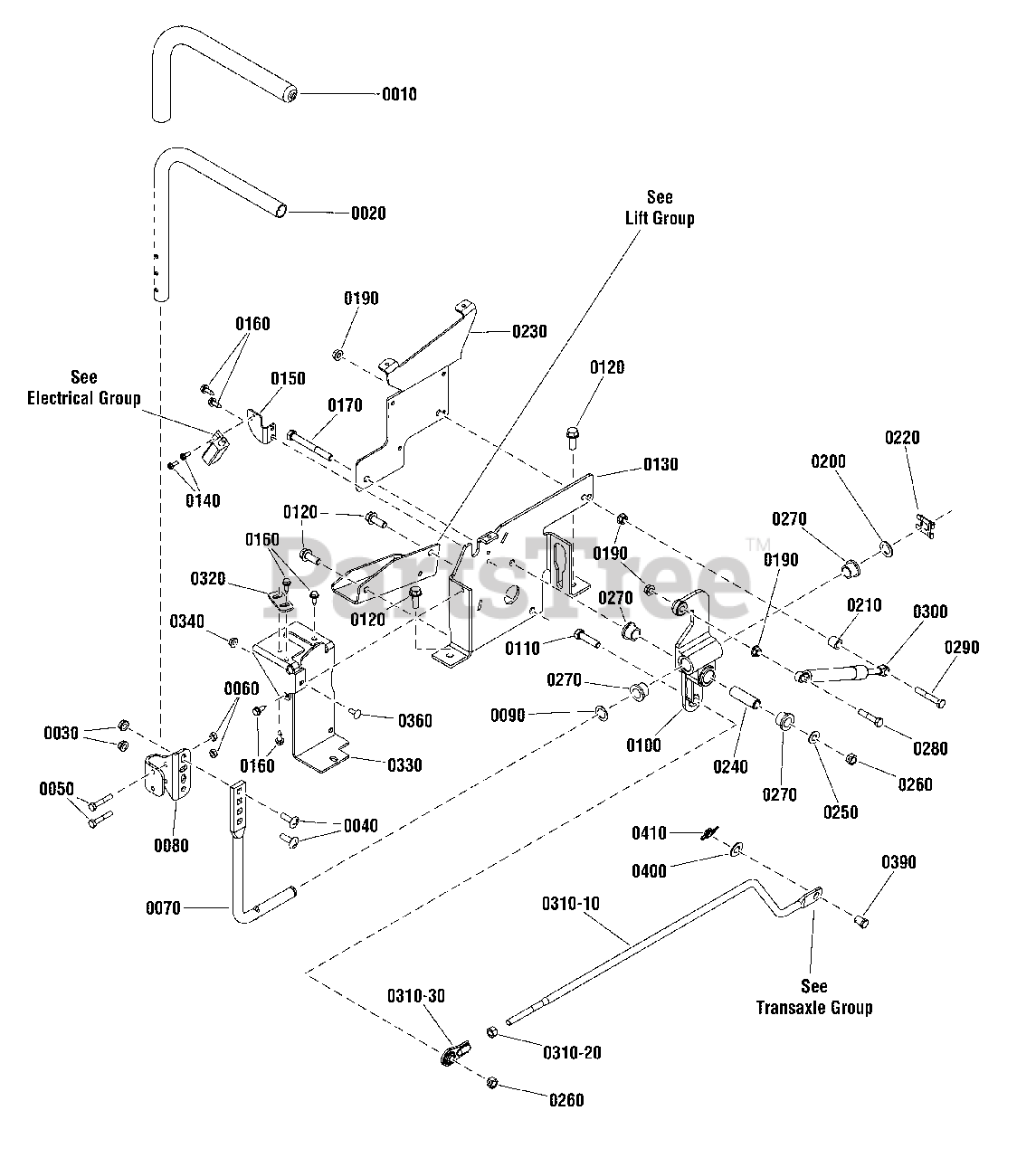

RH Controls Group Parts Diagram

  • Title

0010

Snapper 7100051YP

GRIP, Handle

$10.99

$

Usually ships in 2-12 days

0

0020

Snapper 7301168BMYP

HANDLE, Adjustable Black

$45.99

$

In Stock, only 1 left!

0

0030

Snapper 1935048SM

NUT, 5/16-18 Hex Flange Two-Way Lk Ga
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

0040

Snapper 7091714YP

BOLT, 5/16-18 x 1 Round Head Square Neck, GR 5, YZ
(Superseded to 703483)

$3.99

$

In Stock, only 3 left!

0

0050

Snapper 7090909YP

SCREW, 1/4-20 x 1-1/2 Hex Head Cap, GR 5, Black
(Superseded to 703234)

Note: (Was 1922837 or 80002713)

$4.49

$

In Stock, only 3 left!

0

0060

Snapper 7090372SM

NUT, 1/4-20 Hex Center Lock, GR 5 BZ
(Superseded to 703954)

$4.99

$

In Stock, Qty 20+

0

0070

Snapper 7104677YP

ROD, Handle, Adjustable

$40.99

$

In Stock, only 1 left!

0

0080

Snapper 7074628BMYP

BRACKET, Handle Adjustment Black

$

$

Not available

0090

Snapper 7091628SM

WASHER, 5/8 Flat, YZ

$4.49

$

In Stock, Qty 5

0

0100

Snapper 7100717YP

ARM, Control, Die Cast, RH

$30.99

$

Usually ships in 2-12 days

0

0110

Snapper 7091497SM

SCREW, 3/8-16 x 1-1/2 Hex Head Cap, GR 5, YZ
(Superseded to 703406)

$4.99

$

In Stock, Qty 6

0

0120

Snapper 7090324SM

SCREW, 3/8-16 x 1 Hex Washer Self-Tap
(Superseded to 704000)

$4.99

$

In Stock, only 4 left!

0

0130

Snapper 7043330BMYP

CONTROL BRACKET, RH

$33.99

$

Usually ships in 2-12 days

0

0140

Snapper 7090913SM

SCREW, #10-24 x 1/2 Hex Washer Self-Tap (Torx)
(Superseded to 704060)

$3.49

$

In Stock, Qty 12

0

0150

Snapper 7300032BMYP

BRACKET, Switch

$9.99

$

Usually ships in 2-12 days

0

0160

Snapper 7090290SM

SCREW, 1/4-20 x 3/4 Hex Washer Self-Tap, Black
(Superseded to 703466)

Note: (Was 7091686)

$3.99

$

In Stock, only 2 left!

0

0170

Snapper 1922918SM

SCREW, 3/8-16 x 3-1/4 Hex Head Cap, GR 5, Black
(Superseded to 703874)

$4.49

$

In Stock, only 1 left!

0

0190

Snapper 703409

NUT, Serrated Lock Flange, 5/16-18

Note: (Was 7091601 or 80002728)

$5.49

$

In Stock, Qty 20+

0

0200

Snapper 7900016SM

WASHER, 5/8 ID. x 1 OD. x .065 Nylon

$3.49

$

Usually ships in 2-12 days

0

0210

Snapper 7023206YP

SPACER, .625 OD x .380 ID x .564 L

$8.49

$

Usually ships in 2-12 days

0

0220

Snapper 7104704YP

CLIP, Spring, 5/8 OD Shaft

$5.49

$

Usually ships in 2-12 days

0

0230

Snapper 7301072BMYP

BRACKET, Fender Support, RH

$23.99

$

Usually ships in 2-12 days

0

0240

Snapper 7100714YP

SPACER, Sleeve, RZT

$16.99

$

Usually ships in 2-12 days

0

0250

Snapper 7090122YP

WASHER, 3/8 Flat (SAE) YZ
(Superseded to 703590)

$3.99

$

In Stock, Qty 20+

0

0260

Snapper 7091585SM

NUT, 3/8-16 Hex Center Lock, GR 5, YZ
(Superseded to 703347)

$4.99

$

In Stock, Qty 18

0

0270

Snapper 7013874SM

BUSHING, Bronze, 5/8 x 5/8

$5.99

$

In Stock, Qty 5

0

0280

Snapper 7091540YP

SCREW, 5/16-18 x 1-1/2 Hex Head Cap, GR 5, YZ
(Superseded to 703906)

$4.99

$

In Stock, Qty 7

0

0290

Snapper 7027174SM

SCREW, 5/16-18 x 2 Hex Head Cap, GR 5
(Superseded to 703867)

$4.99

$

In Stock, Qty 6

0

0300

Snapper 5103511YP

DAMPENER, Control

Note: (Was 5100728)

$62.99

$

In Stock, Qty 5

0

0310-10

Snapper 7104168YP

ROD, Link Fwd/Rev

$30.99

$

Usually ships in 2-12 days

0

0310-20

Snapper 7091630SM

NUT, 3/8-24 Hex, GR 5, YZ
(Superseded to 703895)

$4.49

$

In Stock, Qty 10

0

0310-30

Snapper 7100743YP

ROD END, 3/8-24 thread

$10.99

$

In Stock, only 2 left!

0

0320

Snapper 7300009BMYP

PLATE, Fwd/Rev Adjust

$8.49

$

Usually ships in 2-12 days

0

0330

Snapper 7301129BMYP

BRACKET, Guide, Stick, Control, RH

$54.99

$

Usually ships in 2-12 days

0

0340

Snapper 7091584SM

NUT, 1/4-20 Hex Flange Lock, Black
(Superseded to 703233)

Note: (Was 1960294 or 80002727)

$4.49

$

In Stock, only 1 left!

0

0360

Snapper 7091573YP

BOLT, 1/4-20 x 5/8 Round Head Short Square Neck, GR 5, YZ

$4.49

$

In Stock, only 1 left!

0

0390

Snapper 7900000SM

CLEVIS PIN, 7/16 X 1"

$6.99

$

Usually ships in 2-12 days

0

0400

Snapper 7031961YP

WASHER, 7/16 Flat
(Superseded to 703964)

$4.49

$

In Stock, Qty 20+

0

0410

Snapper 7091594SM

COTTER PIN, 1/2 Self, YZ

$2.99

$

In Stock, only 2 left!

0
