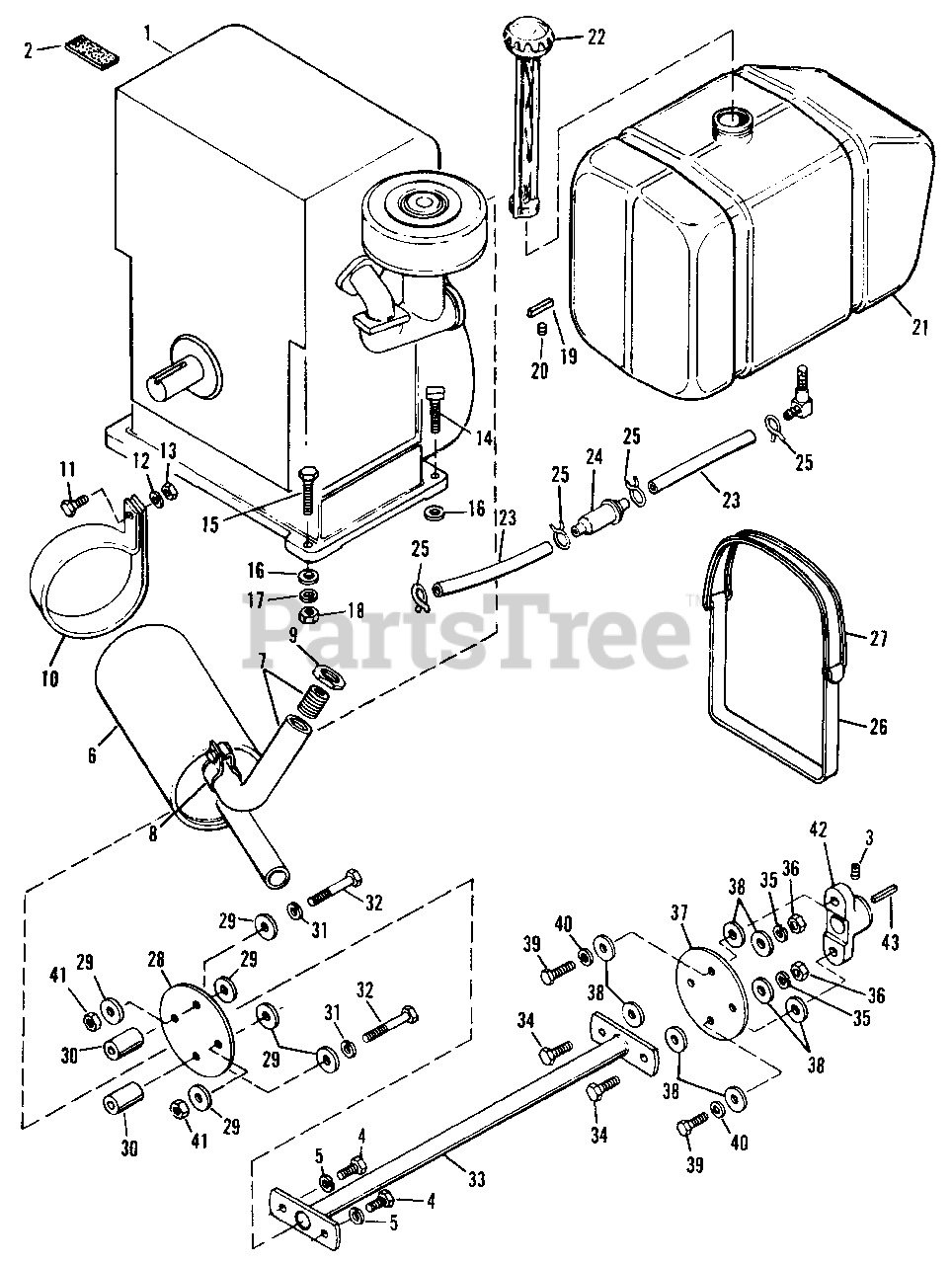

2010 (990395) - Simplicity Landlord Garden Tractor, 10hp ENGINE AND DRIVE SHAFT Parts Diagram

Landlord Garden Tractor, 10hp

ENGINE AND DRIVE SHAFT Parts Diagram

  • Title

1

ENGINE, Briggs & Stratton, Model 326431, Type 0127-01

$

$

Not available

2

Simplicity 2173335

Pad, Fuel Tank

$

$

Not available

3

Simplicity 2715049

Cup Pt. Socket Head Set Screw, 3/8"-24 N.F. x 3/8"

$

$

Not available

4

Simplicity 2172677

Hex Capscrew, 3/8"-16 N.C. x 1-1/8"

$

$

Not available

5

Simplicity 2720002

Lockwasher, 3/8"

$

$

Not available

6

Simplicity 2170456

Muffler, Exhaust

$

$

Not available

7

Simplicity 2172195

Elbow & Nipple Assembly

$

$

Not available

8

Simplicity 2172061SM

Muffler Clamp
(Superseded to 2831893SM)

$

$

Not available

9

Simplicity 2154378SM

Lock Nut

$6.99

$

Usually ships in 2-12 days

0

10

Simplicity 2171880SM

Strap, Muffler

$

$

Not available

11

Simplicity 2705012

Hex Capscrew, 5/16"-18 N.C. x 518"

$

$

Not available

12

Simplicity 2720001

Lockwasher, 5/16"

$

$

Not available

13

Simplicity 2717001

Full Hex Nut, 5/16"-18 N.C.

$

$

Not available

14

Simplicity 172455

Rec't. Head Screw, 3/8"-16 N.C. x 1-5/16"

$

$

Not available

15

Simplicity 2705009

Hex Capscrew, 3/8"-16 N.C. x 1-1/2"

$

$

Not available

16

Simplicity 2719001

Plain Washer, 3/8" Std.

$

$

Not available

17

Simplicity 2720004

Lockwasher, 1/2"

$

$

Not available

18

Simplicity 2717003

Full Hex Nut, 3/8"-16 N.C.

$

$

Not available

19

Simplicity 2171241SM

KEY, Hi-Pro

$6.49

$

Usually ships in 2-12 days

0

20

Simplicity 2713504

Cup Pt. Socket Head Set Screw, 5/16"-18 N.C. x 3/8"

$

$

Not available

21

Simplicity 2171115

Tank, Fuel

$

$

Not available

22

Simplicity 2171252SM

Cap, Fuel Tank

$31.99

$

In Stock, Qty 20+

0

23

Simplicity 2173204

Hose, Fuel, Flexible

$

$

Not available

24

Simplicity 2173206SM

Fuel Filter
(Superseded to 394358S)

$5.99

$

In Stock, Qty 20+

0

25

Simplicity 2154372

Clamp, Hose

$

$

Not available

26

Simplicity 2171330SM

Strap, Tank

$60.99

$

In Stock, only 2 left!

0

27

Simplicity 2172744SM

Strap, Fuel Tank

$19.99

$

Usually ships in 2-12 days

0

28

Simplicity 2173026SM

Coupling

$41.99

$

In Stock, Qty 14

0

29

Simplicity 2157424SM

Washer, Special

$7.99

$

Usually ships in 2-12 days

0

30

Snapper 1729273SM

Bearing, Pivot Block

$76.99

$

In Stock, only 1 left!

0

31

Simplicity 2720002

Lockwasher, 3/8"

$

$

Not available

32

Simplicity 2715036

Hex Capscrew, 3/8"-16 x 2-1/4"

$

$

Not available

33

Simplicity 2172328SM

Shaft Assembly, Drive
(Superseded to 2172328ASM)

$

$

Not available

34

Simplicity 2172677

Hex Capscrew, 3/8"-16 x 1-1/8"

$

$

Not available

35

Simplicity 2720002

Lockwasher, 3/8"

$

$

Not available

36

Simplicity 2717003

Full Hex Nut, 3/8"-16

$

$

Not available

37

Simplicity 2173026SM

Coupling

$41.99

$

In Stock, Qty 14

0

38

Simplicity 2157424SM

Washer, Special

$7.99

$

Usually ships in 2-12 days

0

39

Simplicity 2172677

Hex Capscrew, 3/8"-16 N.C. x 1-1/8"

$

$

Not available

40

Simplicity 2720002

Lockwasher, 3/8"

$

$

Not available

41

Simplicity 2717003

Full Hex Nut, 3/8"-16 N.C.

$

$

Not available

42

Simplicity 2172264SM

Flange, Drive Shaft

$

$

Not available

43

Simplicity 2157427SM

Key, Dive Shaft

$5.49

$

Usually ships in 2-12 days

0
