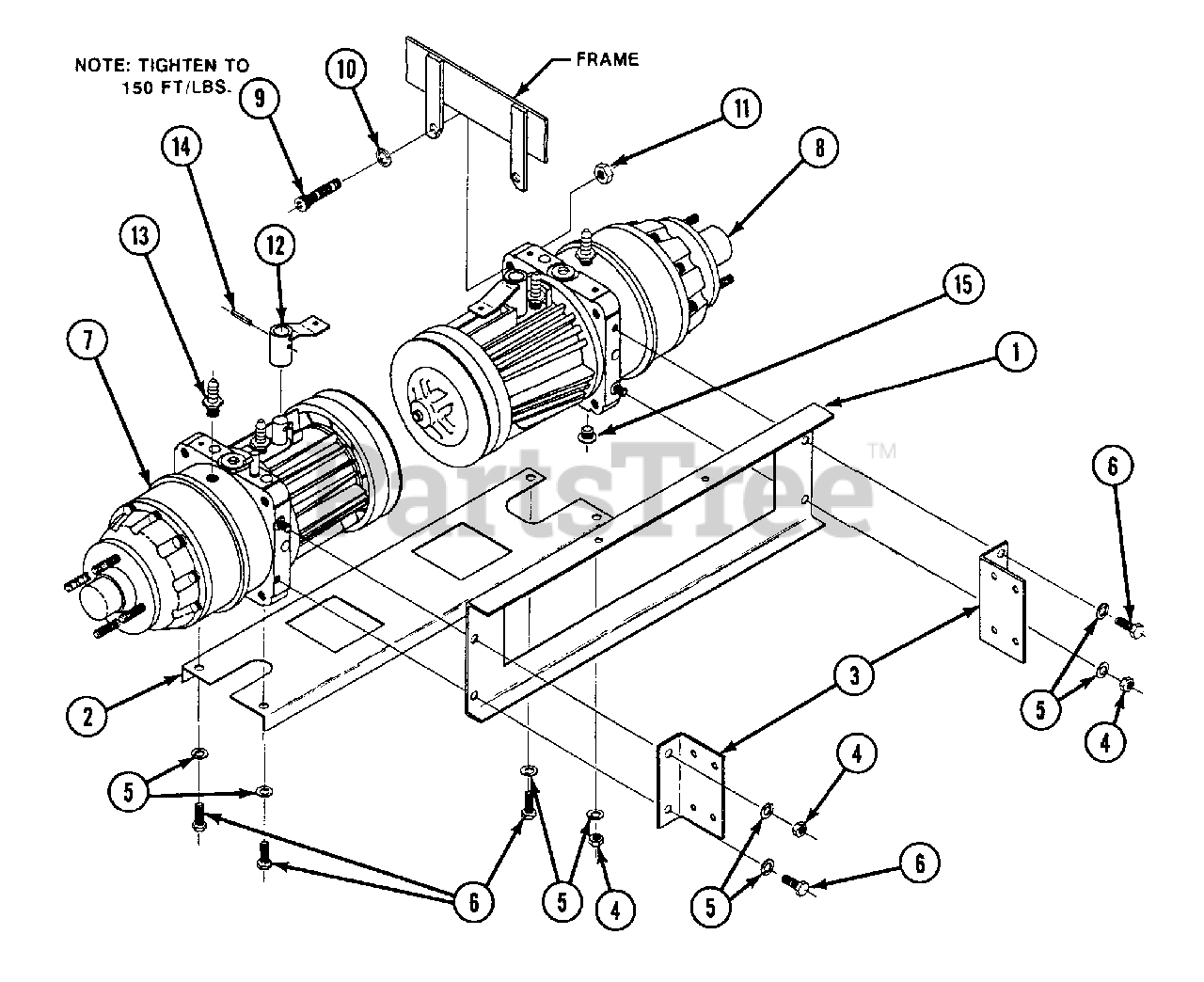

2010 - Snapper Zero-Turn Mower, Unistat Drive, 20hp Transmission Assembly Parts, 1810 & 2010 Parts Diagram

Zero-Turn Mower, Unistat Drive, 20hp

Transmission Assembly Parts, 1810 & 2010 Parts Diagram

  • Title

1

Snapper 7079991

FRONT CROSS MEMBER

Note: UNISTAT TRANSMISSION ASSEMBLY

$

$

Currently unavailable

2

Snapper 7079992

BOTTOM CROSS MEMBER

Note: UNISTAT TRANSMISSION ASSEMBLY

$

$

Currently unavailable

3

Snapper 7079993

DRAG BAR MOUNT

Note: UNISTAT TRANSMISSION ASSEMBLY

$

$

Currently unavailable

4

Snapper 7079936

NUT, HEX: 1/2-13
(Superseded to 703340)

Note: UNISTAT TRANSMISSION ASSEMBLY

$7.99

$

Usually ships in 2-12 days

0

5

Snapper 7090254

LOCKWASHER, SPLT SPRNG: 1/2
(Superseded to 5025331SM)

Note: UNISTAT TRANSMISSION ASSEMBLY

$3.49

$

In Stock, Qty 20+

0

6

Snapper 7062038

CAPSCREW, HEX HEAD: 1/2-13 X 1-1/4

Note: UNISTAT TRANSMISSION ASSEMBLY

$

$

Currently unavailable

7

Snapper 7062169

UNISTAT ASSEMBLY, RH

Note: UNISTAT TRANSMISSION ASSEMBLY

$

$

Currently unavailable

8

Snapper 7062170

UNISTAT ASSEMBLY, LH

Note: UNISTAT TRANSMISSION ASSEMBLY

$

$

Currently unavailable

9

Snapper 7079951

CAPSCREW,SKT HEAD: 5/8-11 X 2-1/4

Note: UNISTAT TRANSMISSION ASSEMBLY

$

$

Currently unavailable

10

Snapper 7079943

LOCKWASHER, SPLT SPRNG: 5/8

Note: UNISTAT TRANSMISSION ASSEMBLY

$

$

Currently unavailable

11

Snapper 7062017

NUT, HEX JAM: 5/8-11

Note: UNISTAT TRANSMISSION ASSEMBLY

$

$

Currently unavailable

12

Snapper 7079994

SHIFT LEVER WELDMENT, RH (SHOWN REMOVED)

Note: UNISTAT TRANSMISSION ASSEMBLY

$

$

Currently unavailable

Snapper 7079995

SHIFT LEVER WELDMENT, LH

Note: UNISTAT TRANSMISSION ASSEMBLY

$

$

Currently unavailable

13

Snapper 7079965

HOSE BARB, UNISTAT

Note: UNISTAT TRANSMISSION ASSEMBLY

$

$

Currently unavailable

14

Snapper 7079364

ROLL PIN: 5/16 X 1-1/4
(Superseded to 7079364YP)

Note: UNISTAT TRANSMISSION ASSEMBLY

$3.49

$

Usually ships in 2-12 days

0

15

Snapper 7062180

PLUG, 3/4-16 W/ 0-RING

Note: UNISTAT TRANSMISSION ASSEMBLY

$

$

Currently unavailable
