20101 - Toro Walk-Behind Mower (SN: 010000001 - 019999999) (1991) Engine Briggs Stratton Model 122702-3188-01 3 Parts Diagram

Walk-Behind Mower

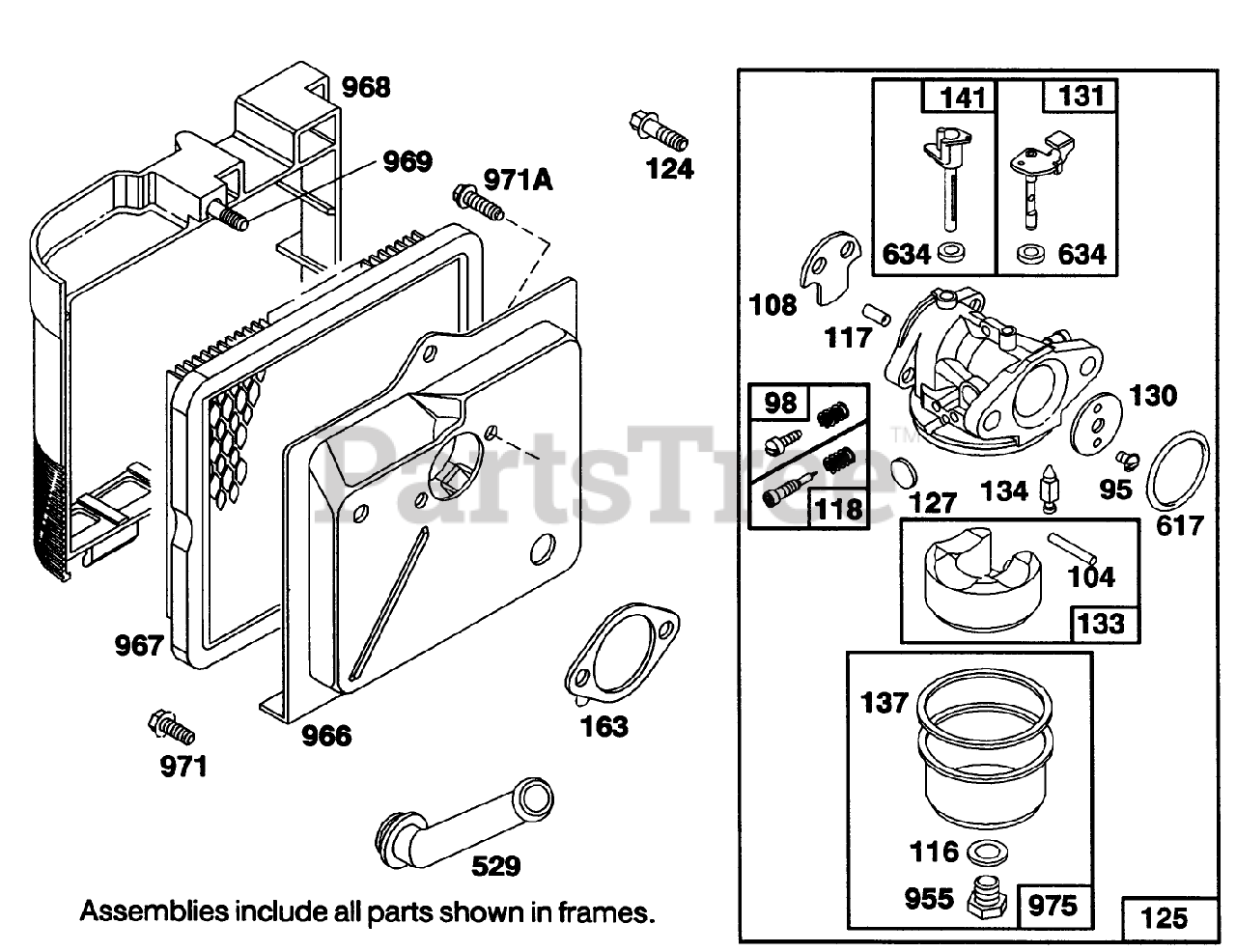

Engine Briggs Stratton Model 122702-3188-01 3 Parts Diagram

  • Title

95

Toro 94098

Valve-Choke

$

$

Currently unavailable

98

Toro 398185

Idle Speed Kit

$

$

Currently unavailable

104

Toro 231371

Spring
(Superseded to 701979)

$

$

Not available

108

Toro 223471

Valve-Choke

$

$

Currently unavailable

116

Gasket-Sealing (Sold in Kit Only).

$

$

Not available

117

Jet (Sold in Kit Only).

$

$

Not available

118

Toro 493765

Valve-Needle

$

$

Currently unavailable

121

Toro 493762

Carburetor Kit

$

$

Currently unavailable

124

Toro 94525

Screw-Hex

$

$

Currently unavailable

125

Toro 494216

Carburetor

$

$

Currently unavailable

127

Plug-Welch (Sold in Kit Only).

$

$

Not available

130

Toro 223470

Valve-Throttle

$

$

Currently unavailable

131

Toro 493267

Shaft and Lever

$

$

Currently unavailable

133

Toro 398187

Float-Carburetor

$

$

Currently unavailable

134

Toro 398188

Valve-Inlet (Includes Seat)

$

$

Currently unavailable

137

Gasket-Bowl (Sold in Kit Only).

$

$

Not available

141

Toro 494218

Shaft-Choke

$

$

Currently unavailable

163

Toro 272296

Gasket-Air Cleaner

$

$

Currently unavailable

529

Toro 280943

Grommet-Breather

$

$

Currently unavailable

617

Toro 270344

Seal-O Ring

$

$

Currently unavailable

634

Washer-Shaft (Sold in Kit Only)

$

$

Not available

955

Toro 493763

Screw-Bowl Mtg.

$

$

Currently unavailable

966

Toro 492363

Base-Air Cleaner

$

$

Currently unavailable

967

Toro 491588

Filter-Air Cleaner, Cartridge

$

$

Currently unavailable

968

Toro 281069

Cover-Air Cleaner

$

$

Currently unavailable

969

Toro 94120

Screw-Cover Mt.

$

$

Currently unavailable

971

Toro 94269

Screw-Air Cleaner

$

$

Currently unavailable

971A

Toro 94121

Screw-Air Cleaner

$

$

Currently unavailable

975

Toro 493640

Bowl-Float

$

$

Currently unavailable
