201010x51A - Murray 20" Walk-Behind Mower (2007) Mower Housing Assembly Parts Diagram

20" Walk-Behind Mower

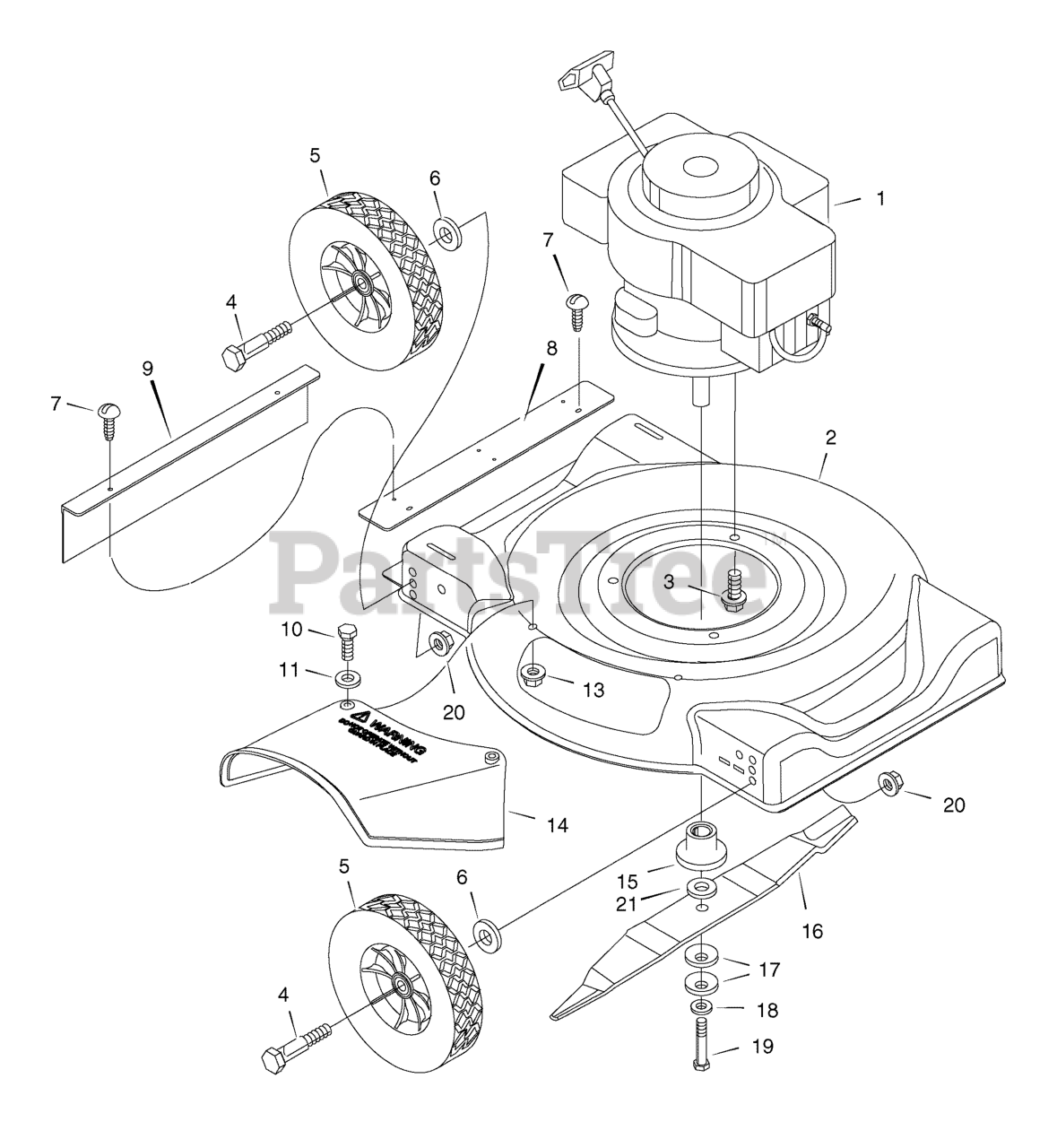

Mower Housing Assembly Parts Diagram

  • Title

1

ENGINE *

Note: (Model: 09D9022239B1)

$

$

Not available

2

Murray 1101013E245MA

HOUSING

$205.99

$

Usually ships in 2-12 days

0

3

Murray 0025X6MA

BOLT, Engine

$5.49

$

Usually ships in 2-12 days

0

4

Murray 009X10MA

BOLT, Axle

$

$

Not available

5

Murray 672789MA

WHEEL & TIRE ASSEMBLY

$12.99

$

Usually ships in 2-12 days

0

6

Murray 845MA

WASHER
(Superseded to 17X168ZMA)

$6.49

$

Usually ships in 2-12 days

0

7

Murray 26X245MA

SCREW

$4.49

$

In Stock, Qty 6

0

8

Murray 672750E701

EXTENSION, Rear

$

$

Not available

9

Murray 671912MA

DEFLECTOR, Rear

$14.99

$

In Stock, only 2 left!

0

10

Murray 01X121MA

BOLT
(Superseded to 703925)

$4.49

$

In Stock, Qty 6

0

11

Murray 017X37MA

WASHER
(Superseded to 703332)

$4.49

$

In Stock, Qty 18

0

13

Murray 15X116MA

LOCKNUT
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

14

Murray 671929MA

DEFLECTOR, Chute

$27.99

$

Usually ships in 2-12 days

0

15

Murray 071056MA

BLADE ADAPTER

$10.99

$

Usually ships in 2-12 days

0

16

Murray 672814E701MA

BLADE, 20"

$

$

Not available

17

Murray 17X137MA

WASHER, Blade

$5.49

$

Usually ships in 2-12 days

0

18

Murray 17X124MA

WASHER

$4.49

$

Usually ships in 2-12 days

0

19

Murray 01X142MA

BOLT

$8.49

$

In Stock, Qty 7

0

20

Murray 015X68MA

LOCKNUT
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

21

Murray 17X191MA

WASHER

$3.99

$

Usually ships in 2-12 days

0

--

Murray 1740528

INSTRUCTION BOOK

$

$

Currently unavailable

--

Murray 1740547MA

DECAL, Murray 50

Note: (Not Shown)

$10.99

$

Usually ships in 2-12 days

0

--

Murray 48X4035MA

DECAL, Symbols

Note: (Not Shown)

$10.99

$

Usually ships in 2-12 days

0

--

Murray 48X4036MA

DECAL, Symbols Side Chute

Note: (Not Shown)

$10.99

$

Usually ships in 2-12 days

0

--

Murray 273738MA

DECAL, B&S Logo

Note: (Not Shown)

$9.99

$

Usually ships in 2-12 days

0

--

Murray 1740527MA

DECAL, 98db Export

Note: (Not Illustrated)

$64.99

$

Usually ships in 2-12 days

0

--

Murray 48X116MA

DECAL, Install Chute Picture

Note: (Not Shown)

$8.99

$

Usually ships in 2-12 days

0

--

Murray 48X1181MA

DECAL, Stop Lever Symbol Handle

Note: (Not Shown)

$9.49

$

Usually ships in 2-12 days

0
