20101C - Murray 20" Walk-Behind Mower (2000) Mower Housing Assembly Parts Diagram

20" Walk-Behind Mower

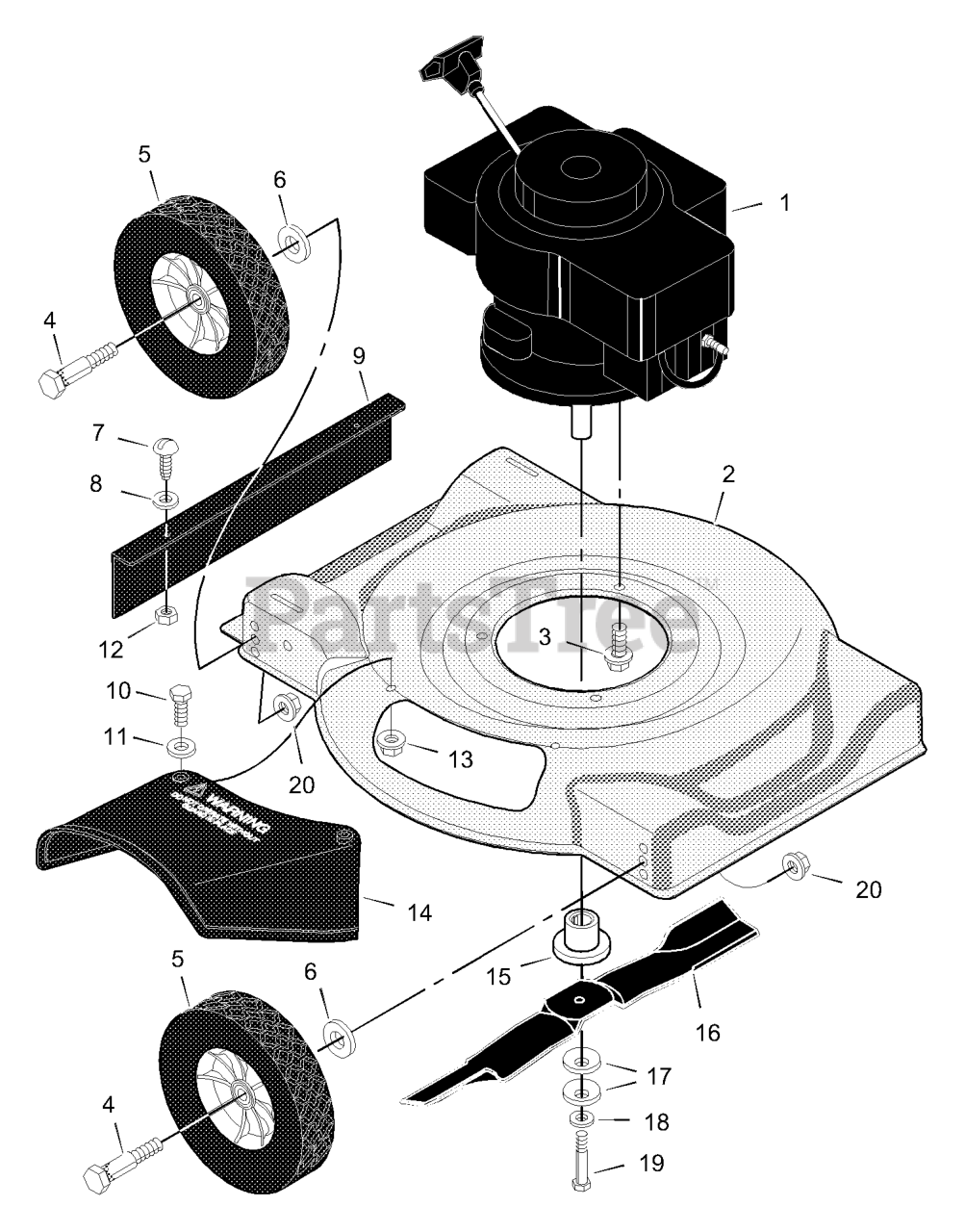

Mower Housing Assembly Parts Diagram

  • Title

1

Engine

$

$

Not available

2

Murray 7950007MA

Housing

$

$

Not available

3

Murray 710265

Bolt, Engine

$24.99

$

Usually ships in 2-12 days

0

4

Murray 009X10MA

Bolt, Axle

$

$

Not available

5

Murray 020270MA

Wheel and Tire
(Superseded to 336546MA)

$

$

Not available

6

Murray 996416

Washer

$

$

Currently unavailable

7

Murray 004X21MA

Screw

$3.99

$

Usually ships in 2-12 days

0

8

Murray 017X38 Z

Washer

$

$

Currently unavailable

9

Murray 671912MA

Deflector, Rear

$15.99

$

In Stock, only 2 left!

0

10

Murray 01X121

Bolt

$

$

Not available

11

Murray 710256MA

Washer
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

12

Murray 15X102MA

Nut

$

$

Not available

13

Murray 710203

Locknut

$21.99

$

Usually ships in 2-12 days

0

14

Murray 671929MA

Deflector, Chute

$28.99

$

Usually ships in 2-12 days

0

15

Murray 071056MA

Blade Adapter

$10.99

$

Usually ships in 2-12 days

0

16

Murray 042785E701MA

Blade - 20"

$23.99

$

Usually ships in 2-12 days

0

17

Murray 710210

Washer, Blade

$

$

Not available

18

Murray 710207

Washer

$1.49

$

Usually ships in 2-12 days

0

19

Murray 710163

Bolt
(Superseded to 710074)

$4.49

$

Usually ships in 2-12 days

0

20

Murray 45171MA

Locknut

$

$

Not available

--

Murray F-000420M

Book, Instruction

$

$

Currently unavailable
