Scotts 20101x31B - Scotts 20" Walk-Behind Mower (2000) Mower Housing Assembly Parts Lookup and Diagrams

Back to Walk-Behind Mowers

Search within parts diagrams

All Diagrams (2) Handle Assembly Mower Housing Assembly

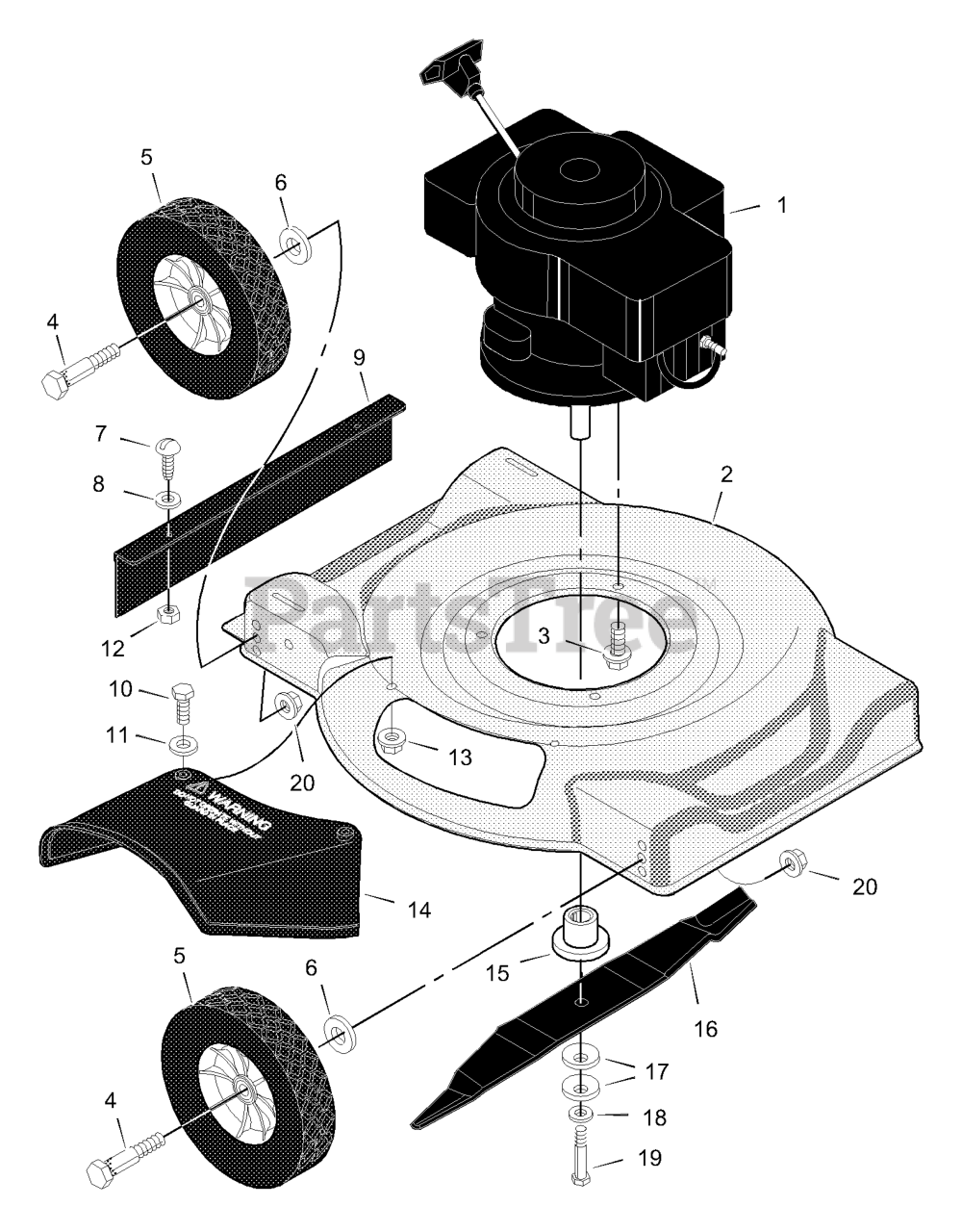

Mower Housing Assembly Parts

Murray F-000423M

Book, Instruction

Currently unavailable

Murray 7950007MA

HSG ASY 20SD P NF OPP

Unavailable

Murray 710265

FILTER-A/C CARTRIDGE

Usually ships in 2 - 12 days

$24.99

Murray 009X10MA

BOLT-SHD.38-16X.499D

Unavailable

Murray 020270MA

Tire and Rim, 7.0 X 1 SEPU

Superseded toMurray 336546MA

Unavailable

Murray 996416

WASHER, FLAT .391 X 1.00 X. 125

Currently unavailable

Murray 004X21MA

SCREW,MCH 10-24X.625

Usually ships in 2 - 12 days

$3.99

Murray 017X38 Z

FLATWASHER

Currently unavailable

Murray 671912MA

Rear Guard, 20 P-07 S

In stock, only 2 left!

$15.99

Murray 01X121

Bolt

Unavailable

Murray 710256MA

Washer, 1/4

Superseded toMurray 703332

In stock, 20+ on hand

$4.49

Murray 15X102MA

NUT HEX 10-24 NYLON

Unavailable

Murray 710203

GUIDE-PUSH ROD

Usually ships in 2 - 12 days

$21.99

Murray 671929MA

CHUTE DEFLECTOR 20SD

Usually ships in 2 - 12 days

$28.99

Murray 071056MA

Blade Adapter, 7/8X1.0

Usually ships in 2 - 12 days

$10.99

Murray 042785E701MA

Mower Blade

Usually ships in 2 - 12 days

$23.99

Murray 710210

ROD-PUSH

Unavailable

Murray 710207

USE 17X124

Usually ships in 2 - 12 days

$1.49

Murray 710163

Bolt

Superseded toMurray 710074

Usually ships in 2 - 12 days

$4.49

Murray 45171MA

NUT, 3/8-16 HWDFL WH

Unavailable
