20103x34C - Murray 20" Walk-Behind Mower, Canada (2000) Handle Assembly Parts Diagram

20" Walk-Behind Mower, Canada

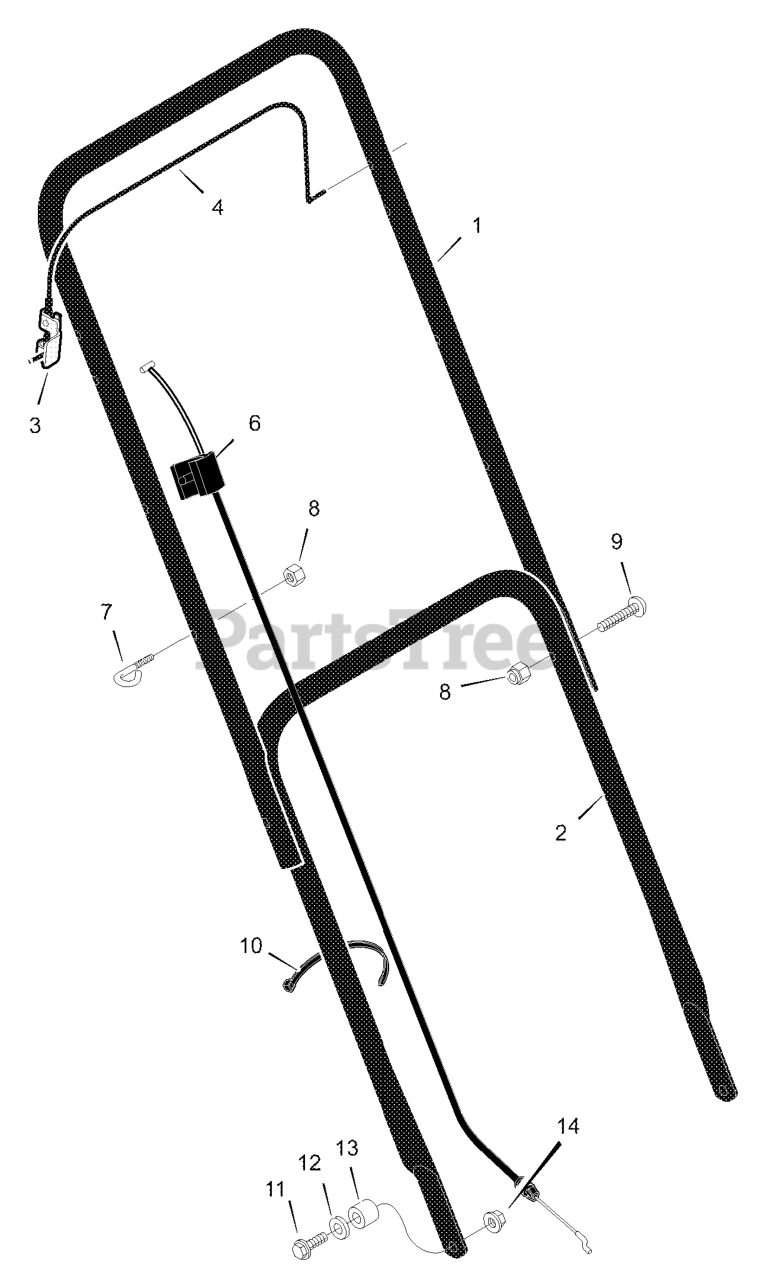

Handle Assembly Parts Diagram

  • Title

1

Murray 1101095

Handle, Upper

$

$

Currently unavailable

2

Murray 672912

Handle, Lower

$13.99

$

Usually ships in 2-12 days

0

3

Murray 43628 BC

Bracket, Stop Lever

$

$

Currently unavailable

4

Murray 671924-844

Lever, Stop

$

$

Currently unavailable

6

Murray 1101094MA

Engine Stop Cable

$13.99

$

Usually ships in 2-12 days

0

7

Murray 043956MA

GUIDE, ROPE

$5.99

$

Usually ships in 2-12 days

0

8

Murray 710203

Locknut

$19.99

$

Usually ships in 2-12 days

0

9

Murray 03X136MA

Screw

$3.49

$

Usually ships in 2-12 days

0

10

Murray 071372MA

Fastener, Cable

$4.49

$

In Stock, only 1 left!

0

11

Murray 710082

Bolt

$7.99

$

Usually ships in 2-12 days

0

12

Murray 000845

Washer

$6.49

$

Usually ships in 2-12 days

0

13

Murray 671914MA

Spacer

$7.49

$

Usually ships in 2-12 days

0

14

Murray 710140

Nut

$10.99

$

Usually ships in 2-12 days

0
