20106 - Toro Walk-Behind Mower (SN: 020000001 - 029999999) (1992) HOUSING ASSEMBLY Parts Diagram

Walk-Behind Mower

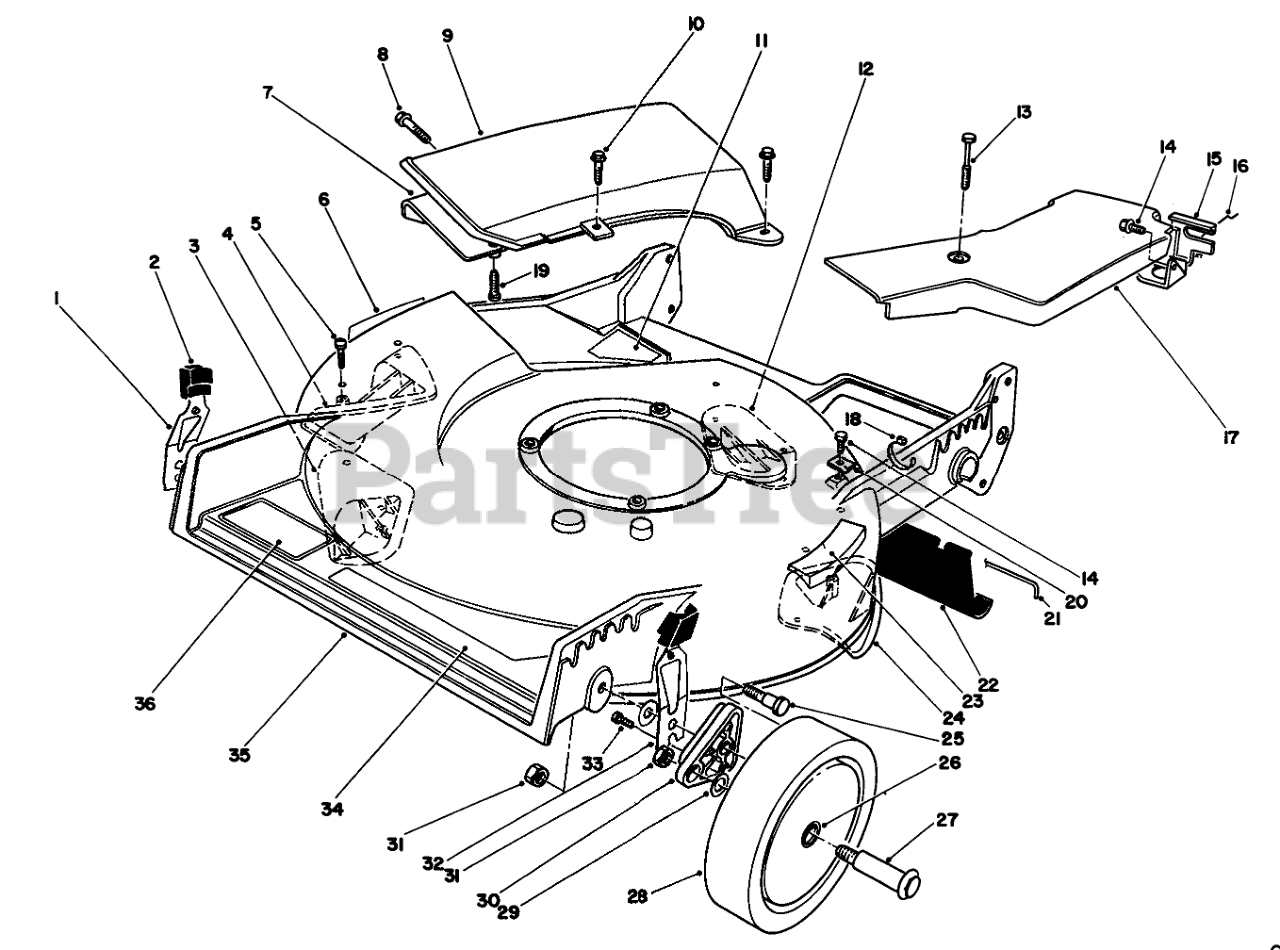

HOUSING ASSEMBLY Parts Diagram

  • Title
1

Toro Part# 71-0560

RH SPRING ARM ASSEMBLY
Usually ships same day

Not available

$

$

2
Usually ships in 1 day

$

$4.46

0

Usually ships in 1 day

$

$22.34

0

Usually ships in 5 to 8 days

$

$22.34

0

5
Usually ships in 1 day

$

$0.82

0

6

Toro Part# 43-8480

DECAL-DANGER
Usually ships in 1 day

$

$5.18

0

7

Part#

Deflector-Recycler
Usually ships same day

Not available

$

$

8

Toro Part# 46-6810

SCREW AND WASHER ASM
Usually ships in 1 day

$

$3.08

0

9

Toro Part# 14-4069

Cover Assembly (Incl. Ref #7 & 19)
(Superseded to 17-5179)
Usually ships same day

Not available

$

$

10

Toro Part# 46-6811

SCREW-HWH
Usually ships in 1 day

$

$2.23

0

11

Toro Part# 82-8450

DECAL - DANGER
Usually ships in 5 to 8 days

$

$5.39

0

12
Usually ships in 5 to 8 days

$

$22.34

0

13

Toro Part# 37-7260

SCREW-HHFTF
Usually ships in 1 day

$

$4.52

0

14

Toro Part# 32144-70

SCREW-HWHTF
Usually ships in 1 day

$

$1.81

0

15

Toro Part# 82-5680

Bracket-Adj. Trac
(Superseded to 82-5680-03)
Usually ships in 5 to 8 days

$

$9.64

0

16

Toro Part# 46-7030

RETAINER-CABLE
Usually ships in 1 day

$

$4.75

0

17

Toro Part# 82-9911

BELT COVER
Usually ships same day

Not available

$

$

18
Usually ships in 1 day

$

$0.77

0

19

Part#

Screw-Pan Hd.
Usually ships same day

Not available

$

$

20

Toro Part# 62-3720

CLAMP-CABLE
Usually ships in 1 day

$

$1.62

0

21

Toro Part# 33-3208

ROD-SHIELD
Usually ships in 1 day

$

$11.72

0

22

Toro Part# 44-0580

SHIELD-TRAILING
(Superseded to 112-9989)
Usually ships in 1 day

$

$22.74

0

23

Toro Part# 46-7370

STEP PAD DECAL
Usually ships in 5 to 8 days

$

$19.15

0

24
Usually ships in 5 to 8 days

$

$22.34

0

25

Toro Part# 66-0561

SCREW-SHOULDER
Usually ships in 1 day

$

$4.35

0

26
Usually ships in 1 day

$

$2.23

0

27

Toro Part# 27-6231

WHEEL BOLT
Usually ships in 1 day

$

$4.01

0

28

Toro Part# 11-9509

Wheel & Tire Assembly (Incl. Ref. #26)
(Superseded to 51-2751)
Usually ships in 1 day

$

$25.70

0

29
Usually ships in 1 day

$

$1.38

0

30

Toro Part# 66-0580

ARM-PIVOT, FRONT
Usually ships in 1 day

$

$14.52

0

31

Toro Part# 52-3620

Nut
(Superseded to 32153-11)
Usually ships in 1 day

$

$3.53

0

32

Toro Part# 71-0570

LH SPRING ARM ASSEMBLY
Usually ships in 5 to 8 days

$

$19.03

0

33
Usually ships in 1 day

$

$1.11

0

34

Toro Part# 76-1950

DECAL - DECK
Usually ships in 5 to 8 days

$

$12.77

0

35

Toro Part# 14-3509

Housing (Incl. Ref. #3-6, 12, & 24)
(Superseded to 16-1589)
Usually ships in 5 to 8 days

$

$776.53

0

Usually ships in 5 to 8 days

$

$10.57

0
