20106 - Toro Walk-Behind Mower (SN: 020000001 - 029999999) (1992) RECYCLER BAGGING KIT MODEL NO. 59174 (OPTIONAL) Parts Diagram

Walk-Behind Mower

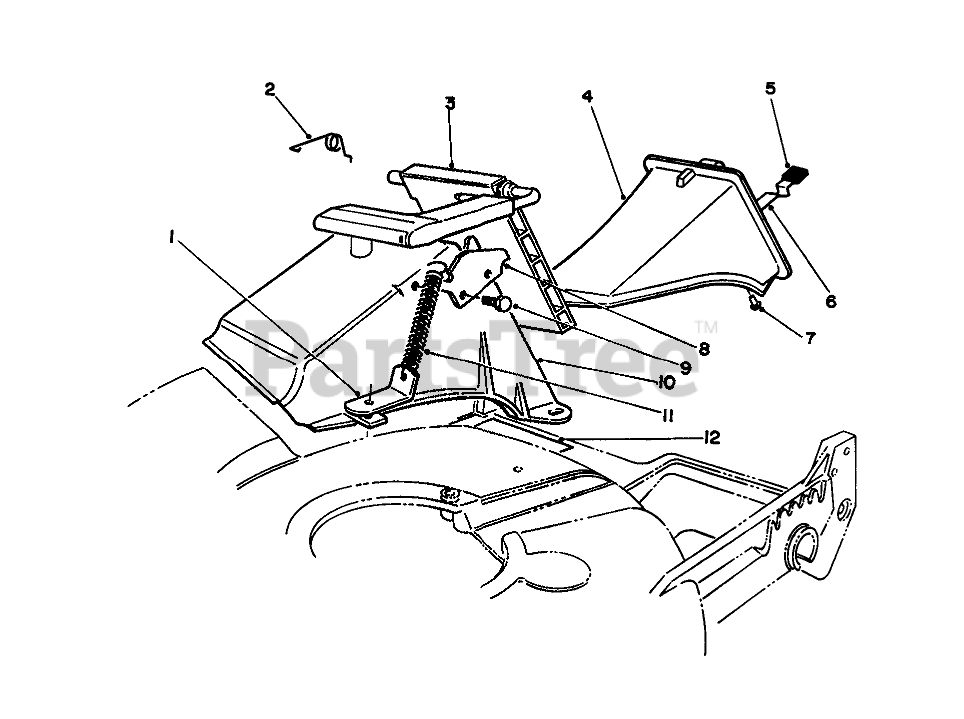

RECYCLER BAGGING KIT MODEL NO. 59174 (OPTIONAL) Parts Diagram

  • Title
1

Toro Part# 80-3780

Bracket-Spring
(Superseded to 71-9350)
Usually ships in 5 to 8 days

$

$11.59

0

2

Toro Part# 80-3770

RETAINER-DOOR
Usually ships in 1 day

$

$2.23

0

3

Toro Part# 77-0200

DOOR ASSEMBLY
Usually ships same day

Not available

$

$

4

Toro Part# 77-0500

Plug-Assembly (Incl. Ref. #11-13)
Usually ships in 5 to 8 days

$

$50.30

0

5

Toro Part# 76-4650

GRIP-LATCH
Usually ships in 5 to 8 days

$

$3.37

0

6

Toro Part# 76-4640

LATCH-PLUG, DISCHARGE
Usually ships in 5 to 8 days

$

$5.57

0

7

Toro Part# 3295-35

RIVET-HEAD, FLAT
Usually ships in 1 day

$

$1.62

0

8

Toro Part# 76-4570

DOOR LATCH PLATE
Usually ships in 5 to 8 days

$

$5.22

0

9

Toro Part# 46-8090

SCREW-PLASTITE
Usually ships in 1 day

$

$2.23

0

10

Toro Part# 82-9150

DISCHARGE TUNNEL
Usually ships in 5 to 8 days

$

$124.45

0

11

Toro Part# 76-4660

SPRING-DOOR
Usually ships in 1 day

$

$8.60

0

12

Toro Part# 82-7960

DECAL - CAUTION
Usually ships same day

Not available

$

$

1
Usually ships in 1 day

$

$1.45

0

2

Toro Part# 42-4030

FRAME-BAG, UPPER
(Superseded to 121-1388)
Usually ships in 1 day

$

$20.11

0

3

Toro Part# 33-4820

HINGE-DOOR, BAG
Usually ships in 1 day

$

$8.79

0

4

Toro Part# 77-5200

Bag-Grass
Usually ships same day

Currently unavailable

$

$

Usually ships in 1 day

$

$8.93

0

6

Toro Part# 42-4020

FRAME-BAG
Usually ships in 1 day

$

$59.24

0

7

Toro Part# 66-2150

BAG DOOR DECAL
Usually ships in 5 to 8 days

$

$7.80

0

8
Usually ships in 5 to 8 days

$

$79.01

0
