20107 - Toro Walk-Behind Mower (SN: 010000001 - 019999999) (1991) ENGINE GTS-150 77-8980 Parts Diagram

Walk-Behind Mower

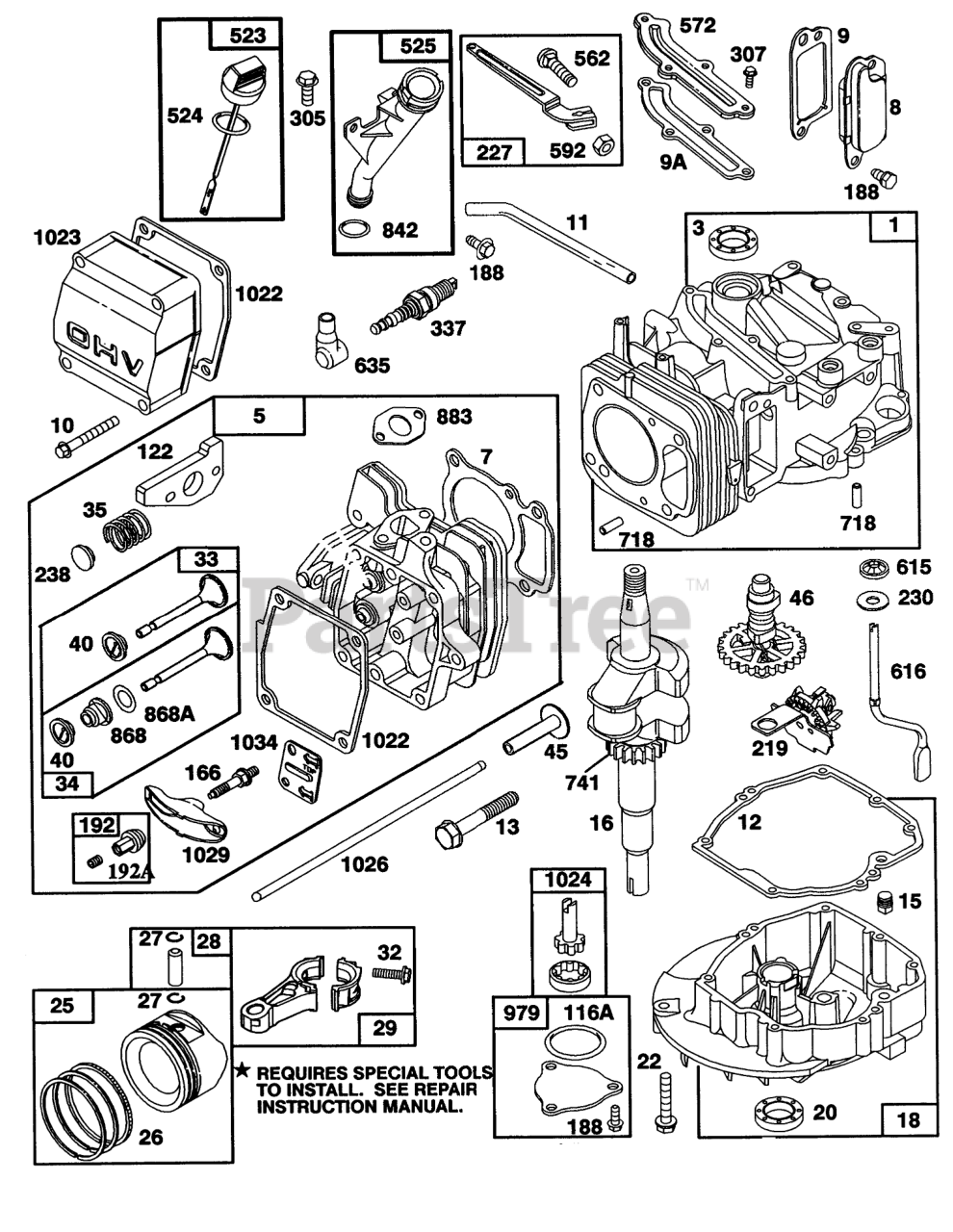

ENGINE GTS-150 77-8980 Parts Diagram

  • Title
1

Toro Part# 77-7590

CYLINDER ASSEMBLY
Usually ships in 5 to 8 days

$

$562.48

0

3

Toro Part# 77-9060

SEAL - OIL
Usually ships same day

Not available

$

$

5

Toro Part# 77-7730

CYLINDER HEAD
Usually ships same day

Not available

$

$

7

Toro Part# 77-7740

CYLINDER HEAD GASKET
Usually ships in 1 day

$

$19.23

0

8

Toro Part# 77-7430

Breather Assy
(Superseded to 77-9260)
Usually ships same day

Not available

$

$

9

Toro Part# 77-7440

Gasket-Breather
(Superseded to 99-0913)
Usually ships in 5 to 8 days

$

$2.78

0

9A

Toro Part# 77-7410

GASKET-BREATHER
(Superseded to 99-0923)
Usually ships in 5 to 8 days

$

$9.23

0

10

Toro Part# 77-7360

HEX HEAD SCREW
Usually ships in 5 to 8 days

$

$9.61

0

11

Toro Part# 77-7350

BREATHER TUBE
Usually ships same day

Not available

$

$

12

Toro Part# 77-7550

ENGINE BASE GASKET
Usually ships in 5 to 8 days

$

$15.03

0

13

Toro Part# 77-7630

CYLINDER HEAD SCREW
Usually ships same day

Not available

$

$

15

Toro Part# 77-7580

PLUG - OIL DRAIN
(Superseded to 77-9240)
Usually ships in 5 to 8 days

$

$5.47

0

16

Toro Part# 77-7510

CRANKSHAFT
Usually ships same day

Not available

$

$

18

Toro Part# 77-7560

ENGINE SUMP
Usually ships same day

Not available

$

$

20
Usually ships in 5 to 8 days

$

$15.23

0

22

Toro Part# 77-9070

SCREW - ENGINE BASE
(Superseded to 99-0956)
Usually ships same day

Not available

$

$

25

Toro Part# 77-7690

STD PISTON ASSEMBLY
Usually ships in 1 day

$

$170.31

0

26

Toro Part# 77-7700

STD RING SET
Usually ships same day

Not available

$

$

27

Toro Part# 77-7710

PISTON PIN LOCK
Usually ships same day

Not available

$

$

28

Toro Part# 77-7720

Pin Assy-Piston
(Superseded to 77-9340)
Usually ships same day

Not available

$

$

29

Toro Part# 77-7670

CONNECTING ROD
Usually ships same day

Not available

$

$

32

Toro Part# 77-7680

Connecting Rod
(Superseded to 99-0963)
Usually ships same day

Not available

$

$

33

Toro Part# 77-7860

EXHAUST VALVE
Usually ships in 5 to 8 days

$

$71.19

0

34

Toro Part# 77-7880

INTAKE VALVE
Usually ships in 5 to 8 days

$

$62.21

0

35

Toro Part# 77-7810

VALVE SPRING
Usually ships in 5 to 8 days

$

$6.19

0

40

Toro Part# 77-7870

SPRING RETAINER
Usually ships same day

Not available

$

$

45

Toro Part# 77-7610

VALVE TAPPET
Usually ships same day

Not available

$

$

46
Usually ships same day

Not available

$

$

116A

Toro Part# 77-7660

O RING SEAL
Usually ships in 5 to 8 days

$

$9.23

0

122

Toro Part# 77-7820

ADAPTER ASSEMBLY
Usually ships in 5 to 8 days

$

$19.88

0

166

Toro Part# 77-7780

ROCKER ARM STUD
Usually ships same day

Not available

$

$

188

Toro Part# 77-7450

SCREW - SEM
Usually ships in 5 to 8 days

$

$7.44

0

192

Toro Part# 77-7910

NUT - HEX SPECIAL
Usually ships same day

Not available

$

$

192A

Toro Part# 77-9090

Screw-Set
(Superseded to 77-7910)
Usually ships same day

Not available

$

$

219

Toro Part# 77-7500

GOVERNOR/OIL SLINGER
Usually ships in 5 to 8 days

$

$40.52

0

227

Toro Part# 77-7370

GOVERNOR LEVER ASSEMBLY
Usually ships in 5 to 8 days

$

$30.76

0

230
Usually ships same day

Not available

$

$

238

Toro Part# 77-7800

VALVE CAP
Usually ships same day

Not available

$

$

305

Toro Part# 77-8310

SCREW - HEX HEAD
Usually ships same day

Not available

$

$

307

Toro Part# 77-7420

SCREW - SEM
Usually ships same day

Not available

$

$

337

Toro Part# 77-7330

PLUG-SPARK
Usually ships in 1 day

$

$3.40

0

523

Toro Part# 77-7260

DIPSTICK-OIL
Usually ships same day

Not available

$

$

524
Usually ships in 5 to 8 days

$

$7.01

0

525

Toro Part# 77-7290

OIL FILLER TUBE
Usually ships same day

Not available

$

$

562

Toro Part# 77-7380

GOVERNOR LEVER BOLT
Usually ships same day

Not available

$

$

572

Toro Part# 77-7400

BAFFLE - CYCLINDER
(Superseded to 99-0922)
Usually ships in 5 to 8 days

$

$7.44

0

592
Usually ships same day

Not available

$

$

615

Toro Part# 77-7480

FASTENER
(Superseded to 99-0925)
Usually ships in 5 to 8 days

$

$5.94

0

616

Toro Part# 77-7460

GOVERNOR CRANK
(Superseded to 99-0926)
Usually ships in 5 to 8 days

$

$12.27

0

635

Toro Part# 77-7340

SPARK PLUG ELBOW
Usually ships in 5 to 8 days

$

$4.47

0

718

Toro Part# 77-7600

DOWEL - SLEEVE
Usually ships same day

Not available

$

$

741

Toro Part# 77-7530

TIMING GEAR
Usually ships same day

Not available

$

$

842
Usually ships in 1 day

$

$3.79

0

868

Toro Part# 77-7890

SealAssy-Valve
(Superseded to 94-1669)
Usually ships in 5 to 8 days

$

$14.26

0

868A

Toro Part# 77-7900

Seal-Valve
(Superseded to 94-1669)
Usually ships in 5 to 8 days

$

$14.26

0

883

Toro Part# 77-7760

EXHAUST GASKET
Usually ships same day

Not available

$

$

979

Toro Part# 77-7650

OIL PUMP COVER
Usually ships in 5 to 8 days

$

$28.16

0

1022

Toro Part# 77-7320

ROCKER COVER GASKET
Usually ships in 5 to 8 days

$

$13.19

0

1023

Toro Part# 77-7060

Cover-Valve
(Superseded to 77-9320)
Usually ships same day

Not available

$

$

1024
Usually ships in 5 to 8 days

$

$37.44

0

1026
Usually ships in 5 to 8 days

$

$54.82

0

1029

Toro Part# 77-7790

ROCKER ARM
Usually ships in 1 day

$

$31.48

0

1034

Toro Part# 77-7770

PUSH ROD GUIDE
Usually ships same day

Not available

$

$
