20107 - Toro Walk-Behind Mower (SN: 010000001 - 019999999) (1991) GEAR CASE ASSEMBLY Parts Diagram

Walk-Behind Mower

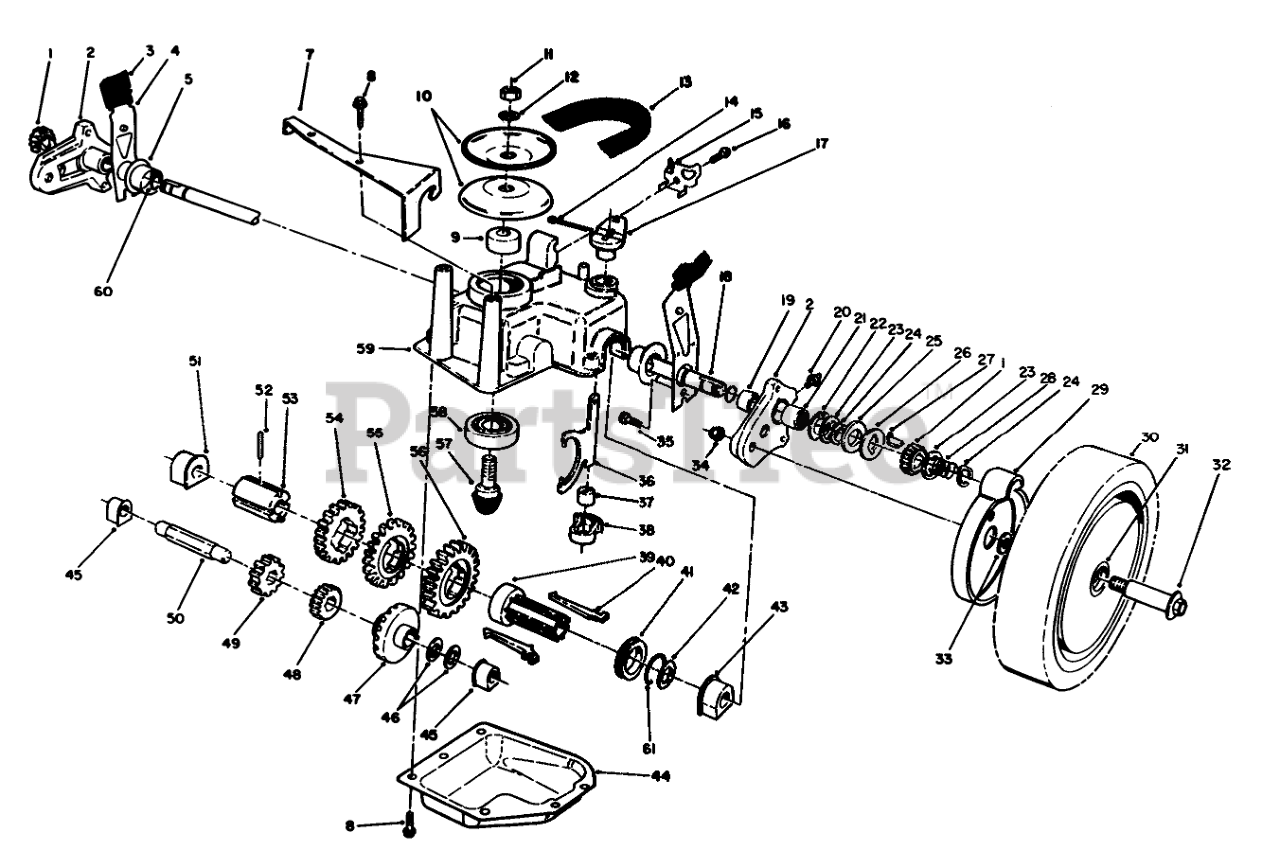

GEAR CASE ASSEMBLY Parts Diagram

  • Title
1

Toro Part# 65-4750

GEAR-PINION
Usually ships in 1 day

$

$10.05

0

2

Toro Part# 63-8701

Pivot Arm Assembly (Incl. Ref. #19, 20, & 21)
Usually ships in 1 day

$

$43.59

0

3
Usually ships in 1 day

$

$4.46

0

4

Toro Part# 63-8720

SPRING ARM ASM SP
Usually ships in 1 day

$

$20.53

0

5
Usually ships same day

Not available

$

$

7

Toro Part# 62-4320

Bracket-Guide
(Superseded to 62-4320-03)
Usually ships in 5 to 8 days

$

$21.77

0

8

Toro Part# 49-2040

SCREW-HWHTF
Usually ships in 1 day

$

$1.67

0

Usually ships in 1 day

$

$0.86

0

10

Toro Part# 60-8840

Pulley Half
(Superseded to 100-1176)
Usually ships in 1 day

$

$6.85

0

11
Usually ships in 1 day

$

$2.90

0

12

Toro Part# 3256-24

WASHER-FLAT
Usually ships in 1 day

$

$0.58

0

13
Usually ships in 1 day

$

$24.59

0

14

Toro Part# 3272-10

PIN-COTTER
Usually ships in 1 day

$

$0.97

0

15

Toro Part# 82-8780

CLAMP-CABLE
Usually ships in 5 to 8 days

$

$10.95

0

16

Toro Part# 32144-70

SCREW-HWHTF
Usually ships in 1 day

$

$1.81

0

17

Toro Part# 60-8820

SHIFT LEVER
Usually ships in 5 to 8 days

$

$6.93

0

18

Toro Part# 65-4770

SHAFT-OUTPUT
Usually ships in 5 to 8 days

$

$125.89

0

19
Usually ships in 1 day

$

$3.85

0

20

Toro Part# 302-56

FITTING-GREASE
Usually ships in 1 day

$

$3.27

0

21

Toro Part# 48-2060

BEARING-ROLLER
(Superseded to 117-3500)
Usually ships in 1 day

$

$4.46

0

22

Toro Part# 65-4730

WASHER-ARM, PIVOT
Usually ships in 1 day

$

$2.23

0

23

Toro Part# 65-4740

WASHER-THRUST, KEYED
Usually ships in 1 day

$

$2.23

0

24

Toro Part# 65-2720

RING-CLIP, LOCKING
Usually ships in 1 day

$

$1.11

0

25

Toro Part# 65-4710

RING-FRICTION
Usually ships in 1 day

$

$2.23

0

26

Toro Part# 65-4760

WASHER-CLUTCH
Usually ships in 1 day

$

$1.33

0

27

Toro Part# 66-6050

KEY-ROCKING, LH
(Superseded to 139-6644)
Usually ships in 1 day

$

$5.76

0

Toro Part# 66-6040

KEY-ROCKING, RH
Usually ships same day

Not available

$

$

28

Toro Part# 65-4720

SPRING-COMPRESSION
Usually ships in 1 day

$

$1.11

0

29

Toro Part# 74-1660

COVER-WHEEL
Usually ships in 1 day

$

$6.71

0

30

Toro Part# 11-9519

Wheel-Tire & Gear Ass-y (Incl. Ref. #31)
(Superseded to 14-9959)
Usually ships in 1 day

$

$32.41

0

31
Usually ships in 1 day

$

$2.23

0

32

Toro Part# 27-6231

WHEEL BOLT
Usually ships in 1 day

$

$4.01

0

33

Toro Part# 74-1670

SPACER-COVER, WHEEL
Usually ships in 1 day

$

$5.47

0

34

Toro Part# 52-3620

Nut
(Superseded to 32153-11)
Usually ships in 1 day

$

$3.53

0

35
Usually ships in 1 day

$

$1.11

0

36

Toro Part# 60-8870

YOKE-SHIFT
Usually ships in 1 day

$

$20.11

0

37

Toro Part# 29-9570

BUSHING-YOKE
Usually ships in 5 to 8 days

$

$8.93

0

38

Toro Part# 60-8810

RETAINER-FORK, SHIFT
Usually ships in 5 to 8 days

$

$5.22

0

39

Toro Part# 76-0780

SLEEVE-KEY, SHIFT
Usually ships in 1 day

$

$4.92

0

40

Toro Part# 76-0760

KEY-SHIFT
Usually ships in 5 to 8 days

$

$9.82

0

41

Toro Part# 76-0770

COLLAR-SHIFT
Usually ships in 5 to 8 days

$

$16.87

0

42

Toro Part# 36-4780

WASHER-PLAIN
Usually ships in 1 day

$

$5.86

0

43

Toro Part# 60-8770

BUSHING-OUTPUT
Usually ships in 1 day

$

$5.51

0

44

Toro Part# 60-8730

Cover-Gearcase
(Superseded to 60-8730-03)
Usually ships same day

Not available

$

$

45
Usually ships in 1 day

$

$4.87

0

46

Toro Part# 36-4791

WASHER-THRUST
Usually ships in 1 day

$

$0.94

0

47

Toro Part# 55-3760

Gear-Bevel
(Superseded to 104-7668)
Usually ships in 1 day

$

$24.60

0

48

Toro Part# 55-3780

PINION-20T
Usually ships in 5 to 8 days

$

$28.84

0

49

Toro Part# 55-3800

PINION-25T
Usually ships in 5 to 8 days

$

$32.82

0

50

Toro Part# 60-8800

SHAFT-INTERMEDIATE
(Superseded to 614696)
Usually ships in 5 to 8 days

$

$77.12

0

51
Usually ships in 5 to 8 days

$

$5.79

0

52
Usually ships in 1 day

$

$1.24

0

53

Toro Part# 60-8790

SLEEVE-GEAR
Usually ships in 5 to 8 days

$

$41.59

0

54
Usually ships in 5 to 8 days

$

$41.17

0

55
Usually ships in 5 to 8 days

$

$51.28

0

56
Usually ships in 5 to 8 days

$

$51.28

0

57

Toro Part# 60-8890

Gear-Pinion
(Superseded to 104-7667)
Usually ships in 1 day

$

$12.87

0

58

Toro Part# 38-7820

BEARING-BALL
Usually ships in 1 day

$

$11.17

0

59

Toro Part# 60-8710

CASE-GEAR, UPPER
Usually ships in 5 to 8 days

$

$135.73

0

60
Usually ships in 1 day

$

$2.81

0

61

Toro Part# 65-5250

CLIP-SPRING
Usually ships in 5 to 8 days

$

$0.59

0

Toro Part# 62-6673

GEARCASE ASM
Usually ships in 5 to 8 days

$

$614.95

0
