20107 - Toro Walk-Behind Mower (SN: 010000001 - 019999999) (1991) HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower

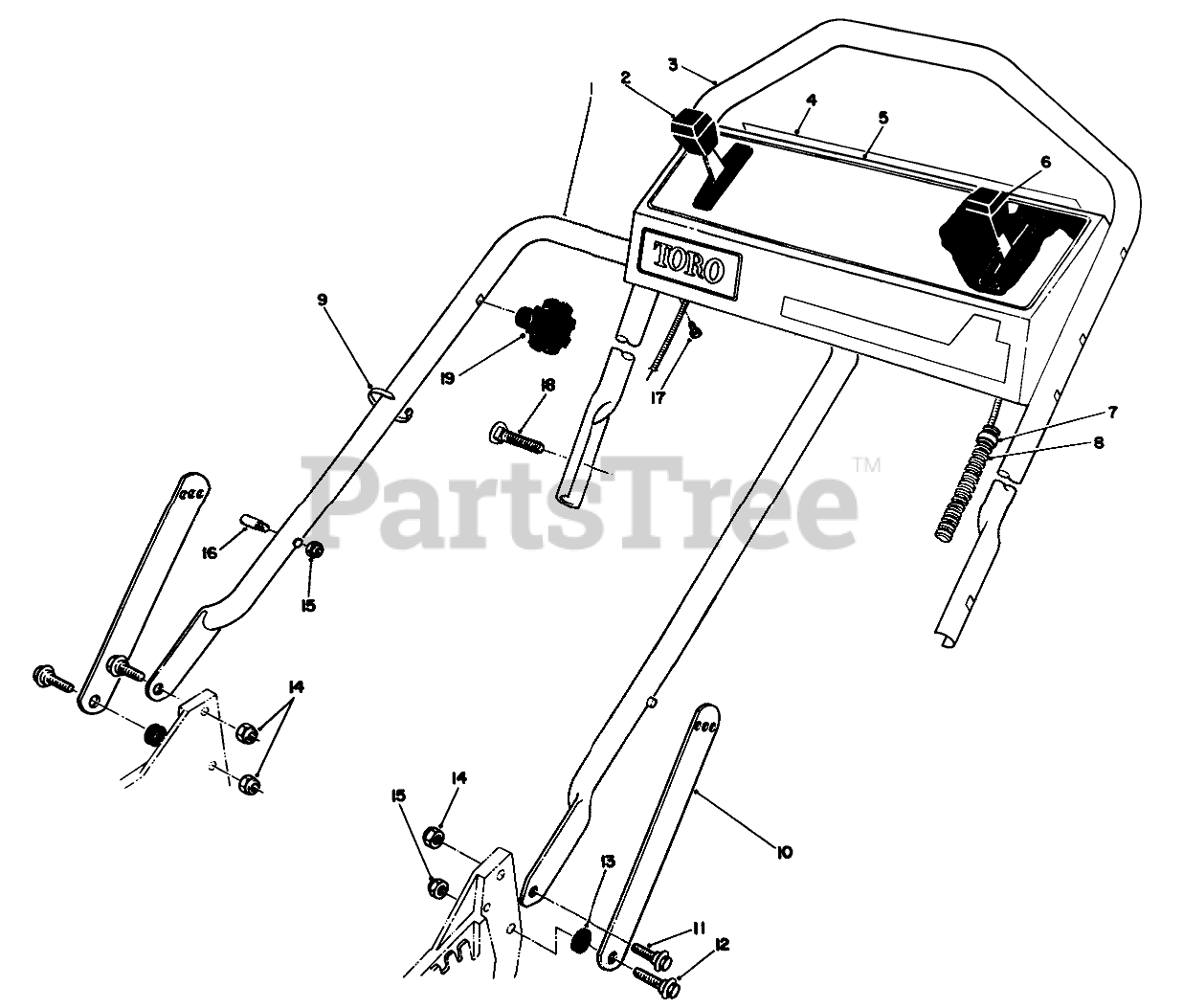

HANDLE ASSEMBLY Parts Diagram

  • Title
1

Toro Part# 82-5530

LOWER HANDLE ASM
Usually ships same day

Not available

$

$

2

Toro Part# 76-2711

Control-Ground Speed
(Superseded to 76-2712)
Usually ships in 1 day

$

$33.53

0

3

Toro Part# 46-5410

UPPER HANDLE
Usually ships same day

Not available

$

$

4

Toro Part# 63-9060

DECAL-PANEL, DANGER
Usually ships same day

Not available

$

$

5

Toro Part# 82-9180

Panel-Control
(Superseded to 16-1619)
Usually ships same day

Not available

$

$

6

Toro Part# 66-0236

THROTTLE CONTROL
Usually ships in 5 to 8 days

$

$89.19

0

7

Toro Part# 2412-50

FITTING-RING
Usually ships in 5 to 8 days

$

$6.93

0

8

Toro Part# 46-6440

CONTROL CABLE COVER
Usually ships same day

Not available

$

$

9
Usually ships in 1 day

$

$0.77

0

10

Toro Part# 43-1370

Handle Latch
(Superseded to 98-7138)
Usually ships same day

Not available

$

$

11

Toro Part# 27-7211

SCREW-SHOULDER
Usually ships in 1 day

$

$3.08

0

12

Toro Part# 27-7210

SCREW-SHOULDER
Usually ships in 1 day

$

$6.54

0

13
Usually ships in 1 day

$

$3.30

0

14

Toro Part# 3296-29

NUT-LOCK, NI
Usually ships in 1 day

$

$2.00

0

15

Toro Part# 3296-47

NUT-LOCK, NI
Usually ships in 1 day

$

$3.46

0

16

Toro Part# 49-2750

HANDLE PIN
Usually ships in 5 to 8 days

$

$26.16

0

17

Toro Part# 32104-76

SCREW-HWHTF
Usually ships in 1 day

$

$2.23

0

18

Toro Part# 17-9421

5/16-18 X 2 HNDLE SCREW
(Superseded to 92-2260)
Usually ships in 1 day

$

$3.34

0

Usually ships in 1 day

$

$13.41

0
