20180 - Toro Walk-Behind Mower (SN: 020000001 - 029999999) (1992) HANDLE & THROTTLE CONTROL ASSEMBLY Parts Diagram

Walk-Behind Mower

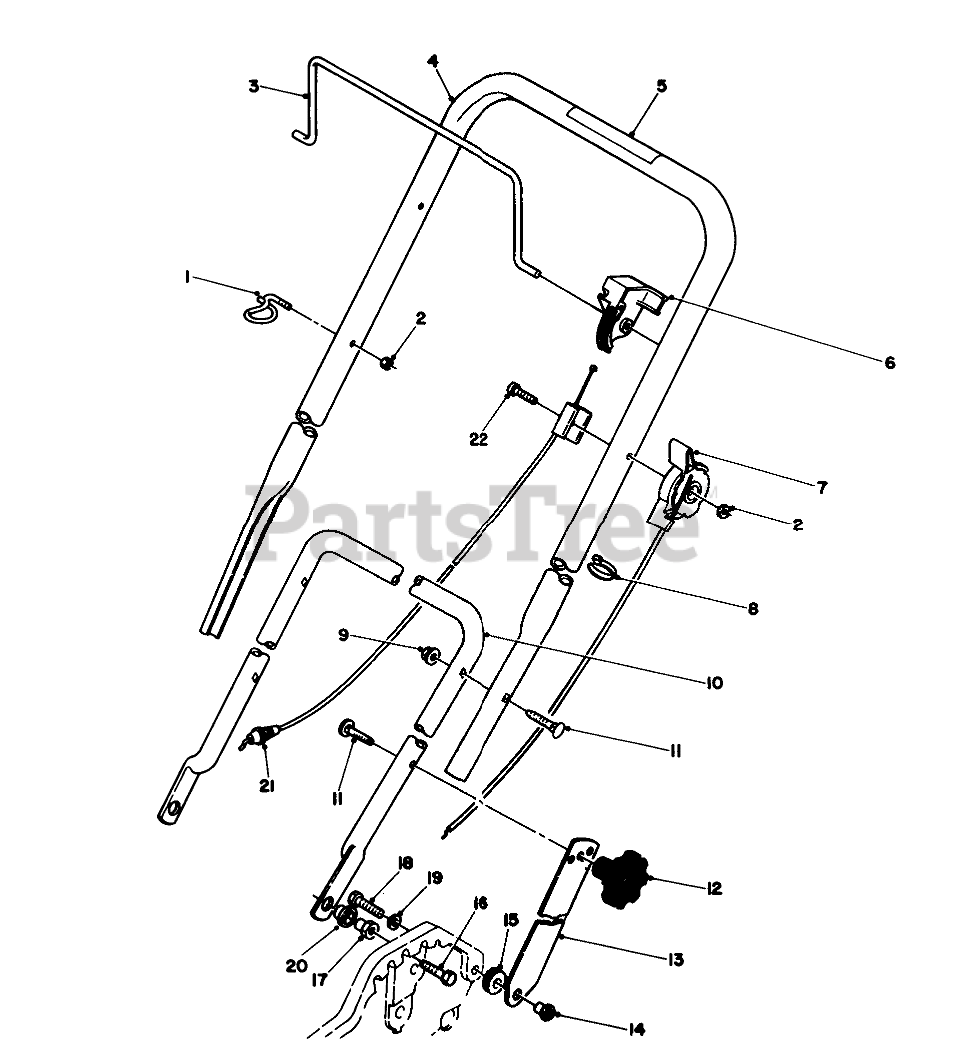

HANDLE & THROTTLE CONTROL ASSEMBLY Parts Diagram

  • Title

1

Toro 86-9670

ROPE GUIDE

$

$

Not available

2

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

3

Toro 86-9740

Bar-Control
(Superseded to 86-9740-03)

$

$

Not available

4

Toro 14-7379

Handle-Upper (Incl. Ref. #5)

$121.99

$

Usually ships in 3-6 days

0

5

Toro 88-3340

WARNING DECAL

$

$

Not available

6

Toro 86-9440

BAIL STOP/LEVER

$

$

Not available

7

Toro 86-9430

THROTTLE CABLE

$

$

Not available

8

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 10

0

9

Toro 3296-58

NUT-LOCK, NI

$2.99

$

In Stock, only 2 left!

0

10

Toro 50-9921

LOWER HANDLE(CROM)

$

$

Not available

11

Toro 17-9424

SCREW
(Superseded to 6-6330)

$

$

Not available

12

Toro 19-4050

KNOB

$17.99

$

In Stock, Qty 9

0

13

Toro 43-1372

HANDLE LATCH

$

$

Not available

14

Toro 47-4990

POST-MOUNTING, LINKAGE

$23.99

$

Usually ships in 3-6 days

0

15

Toro 237-136

GROMMET

$4.49

$

In Stock, only 2 left!

0

16

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

17

Toro 12-2080

HANDLE PIVOT NUT

$22.99

$

Usually ships in 3-6 days

0

18

Toro 321-8

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

19

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

20

Toro 86-7960

FLANGE BUSHING

$8.99

$

Usually ships in 3-6 days

0

21

Toro 86-9420

BRAKE CABLE

$

$

Not available

22

Toro 321-9

SCREW-HH

$4.99

$

In Stock, only 2 left!

0
