20181 - Toro 18" Recycler II Walk-Behind Mower (SN: 039000001 - 039999999) (1993) ENGINE BRIGGS & STRATTON MODEL 95902-3148-01 Parts Diagram

18" Recycler II Walk-Behind Mower

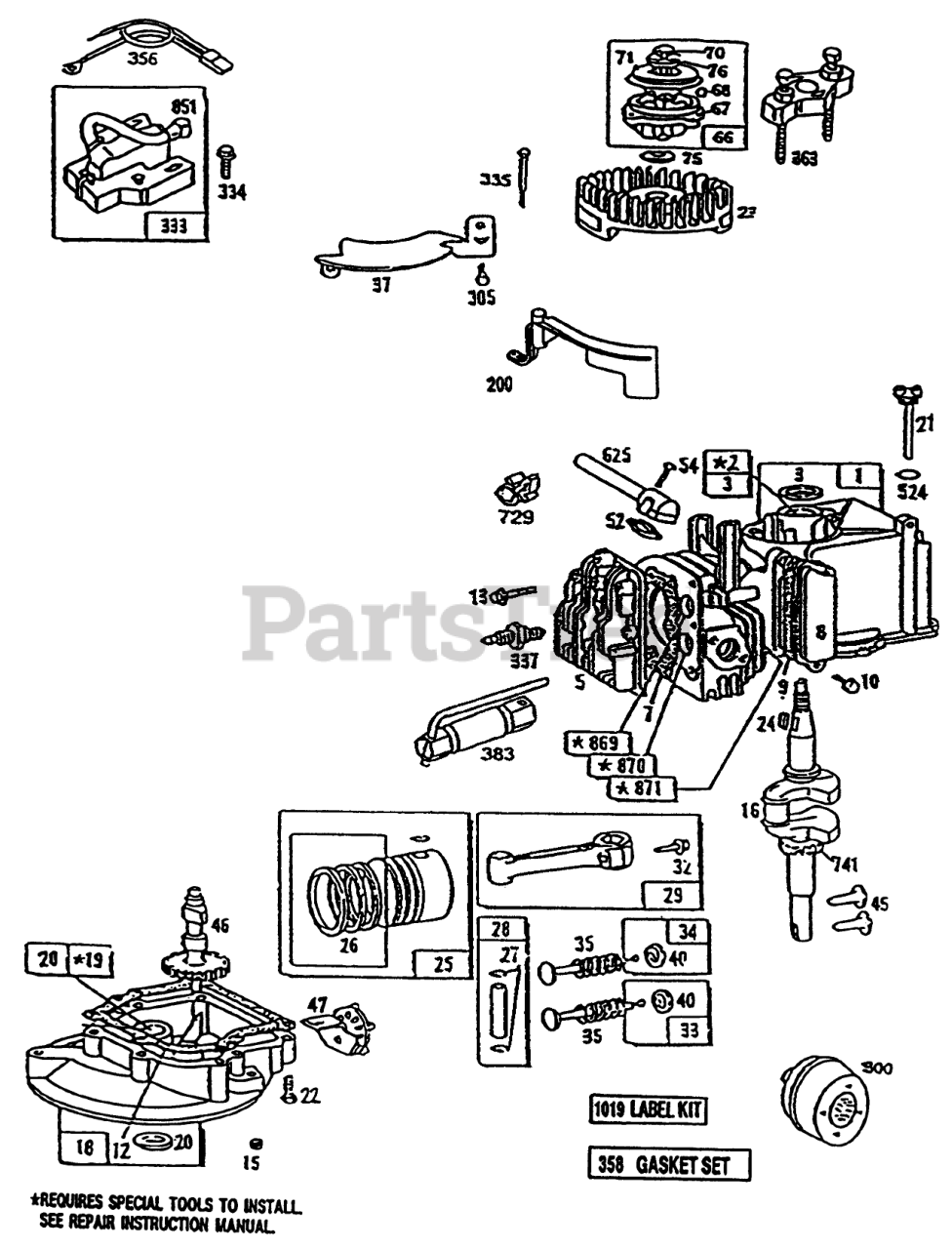

ENGINE BRIGGS & STRATTON MODEL 95902-3148-01 Parts Diagram

  • Title
1

Briggs & Stratton Part# 399164

Cylinder Assembly
(Superseded to 699653)
Usually ships same day

Not available

$

$

2

Briggs & Stratton Part# 293708

Bushing
(Superseded to 796961)
Usually ships in 1 day

$

$17.21

0

3

Briggs & Stratton Part# 299819

Seal-Oil
(Superseded to 299819S)

Note: Included in Gasket Set-Part No. 298989.

Usually ships in 1 day

$

$4.57

0

5

Briggs & Stratton Part# 211479

Head Cylinder
(Superseded to 790169)
Usually ships same day

Not available

$

$

7

Briggs & Stratton Part# 272170

Gasket-Cylinder Head
(Superseded to 698717)

Note: Included in Gasket Set-Part No. 298989.

Usually ships in 1 day

$

$5.91

0

8

Briggs & Stratton Part# 298383

Breather-Valve
(Superseded to 791781)
Usually ships in 1 day

$

$11.62

0

9

Briggs & Stratton Part# 270239

Gasket Valve Cover
(Superseded to 695890)

Note: Included in Gasket Set-Part No. 298989.

Usually ships in 1 day

$

$3.68

0

10

Briggs & Stratton Part# 93394

Screw
(Superseded to 691666)
Usually ships in 1 day

$

$3.12

0

12

Briggs & Stratton Part# 270833

Gasket-Crankcase-.015" thick
(Superseded to 692218)

Note: Included in Gasket Set-Part No. 298989.

Usually ships in 1 day

$

$4.57

0

Briggs & Stratton Part# 270895

Gasket-Crankcase .005"

Note: Included in Gasket Set-Part No. 298989.

Usually ships in 1 day

$

$8.15

0

Briggs & Stratton Part# 270896

Gasket-Crankcase .009"

Note: Included in Gasket Set-Part No. 298989.

Usually ships in 1 day

$

$4.80

0

13

Briggs & Stratton Part# 93111

Screw-Cylinder Hd.
(Superseded to 592840)
Usually ships in 1 day

$

$34.09

0

15

Briggs & Stratton Part# 94613

Plug-Pipe
(Superseded to 691680)
Usually ships in 1 day

$

$4.35

0

16

Toro Part# 495222

Crankshaft Note: To Replace Timing Gear Pin, Order Part No. 230978.
Usually ships same day

Currently unavailable

$

$

18

Briggs & Stratton Part# 395384

Sump-Oil
(Superseded to 590569)
Usually ships same day

Not available

$

$

19
Usually ships same day

Not available

$

$

20

Briggs & Stratton Part# 391483

Seal-Oil
(Superseded to 391483S)

Note: Included in Gasket Set-Part No. 298989.

Usually ships in 1 day

$

$4.91

0

21

Briggs & Stratton Part# 281081

Plug-Oil Filler
(Superseded to 691913)
Usually ships in 6 to 12 days

$

$7.82

0

22

Briggs & Stratton Part# 93032

Screw
(Superseded to 692551)
Usually ships in 6 to 12 days

$

$3.01

0

23

Briggs & Stratton Part# 395653

Flywheel-Magneto
(Superseded to 799682)
Usually ships same day

Not available

$

$

24

Briggs & Stratton Part# 222698

Key
(Superseded to 222698S)
Usually ships in 1 day

$

$2.67

0

25

Briggs & Stratton Part# 298904

Piston Assy.-Std.
(Superseded to 793214)
Usually ships same day

Not available

$

$

Briggs & Stratton Part# 298905

Piston Assy.-010"O.S.
Usually ships same day

Not available

$

$

Briggs & Stratton Part# 298906

Piston Assy.-020"O.S.
Usually ships same day

Not available

$

$

Briggs & Stratton Part# 298907

Piston Assy. .030" O.S.
Usually ships same day

Not available

$

$

26
Usually ships in 1 day

$

$41.36

0

Briggs & Stratton Part# 298983

Ring Set (.010" O.S.)
Usually ships same day

Not available

$

$

Briggs & Stratton Part# 298984

Ring Set (.020" O.S.)
Usually ships in 6 to 12 days

$

$30.73

0

Usually ships same day

Not available

$

$

27

Briggs & Stratton Part# 26026

Iock-Piston Pin
(Superseded to 691588)
Usually ships in 1 day

$

$3.57

0

28
Usually ships in 1 day

$

$6.92

0

Briggs & Stratton Part# 298908

Pin-Piston (.005 Undersize)
Usually ships same day

Not available

$

$

29

Briggs & Stratton Part# 294201

Rod Assy., Conn.
(Superseded to 699655)
Usually ships in 1 day

$

$33.53

0

32

Briggs & Stratton Part# 94404

Screw-Connecting Rod
(Superseded to 691664)
Usually ships in 1 day

$

$3.68

0

Usually ships in 1 day

$

$19.89

0

Usually ships in 1 day

$

$21.01

0

35

Briggs & Stratton Part# 260552

Spring-Valve
(Superseded to 690520)
Usually ships in 1 day

$

$4.35

0

37

Briggs & Stratton Part# 223150

Guard-Flywheel
(Superseded to 691209)
Usually ships in 6 to 12 days

$

$8.37

0

40

Briggs & Stratton Part# 93312

Gear-Cam
(Superseded to 692194)
Usually ships in 1 day

$

$4.80

0

45

Briggs & Stratton Part# 230173

Tappet-Valve
(Superseded to 691762)
Usually ships in 6 to 12 days

$

$7.59

0

Usually ships in 6 to 12 days

$

$62.60

0

47

Briggs & Stratton Part# 491688

Oil Slinger Gear and Bracket
(Superseded to 698690)
Usually ships in 6 to 12 days

$

$12.40

0

52

Briggs & Stratton Part# 270345

Gasket-Intake Elbow
(Superseded to 270345S)

Note: Included in Gasket Set-Part No. 298989.

Usually ships in 1 day

$

$3.46

0

54

Briggs & Stratton Part# 93485

Screw Intake Elbow Mtg.
(Superseded to 691111)
Usually ships in 6 to 12 days

$

$3.12

0

66
Usually ships in 1 day

$

$30.73

0

Usually ships in 6 to 12 days

$

$28.50

0

68

Briggs & Stratton Part# 63770

Ball
(Superseded to 691604)
Usually ships in 1 day

$

$4.46

0

70

Briggs & Stratton Part# 298799

Ratchet
(Superseded to 691945)
Usually ships in 1 day

$

$13.63

0

71

Briggs & Stratton Part# 394506

Clutch
(Superseded to 691359)
Usually ships in 1 day

$

$7.59

0

75

Briggs & Stratton Part# 223047

Washer-Spring
(Superseded to 691736)
Usually ships in 6 to 12 days

$

$4.24

0

76

Briggs & Stratton Part# 68238

Washer
(Superseded to 691359)
Usually ships in 1 day

$

$7.59

0

200

Briggs & Stratton Part# 281024

Blade-Govemor
(Superseded to 691912)
Usually ships in 1 day

$

$10.27

0

300

Briggs & Stratton Part# 394569

Muffler-Exhaust
(Superseded to 394569S)
Usually ships in 1 day

$

$10.16

0

305

Briggs & Stratton Part# 94153

Screw-Blo. Hsg. Mtg.
(Superseded to 692198)
Usually ships in 1 day

$

$5.02

0

333

Briggs & Stratton Part# 398593

Armature-Magneto
(Superseded to 591420)
Usually ships in 1 day

$

$51.98

0

334

Briggs & Stratton Part# 93381

Screw
(Superseded to 691061)
Usually ships in 1 day

$

$3.01

0

335

Briggs & Stratton Part# 93435

Screw-Armature & Governor Blade
(Superseded to 691107)
Usually ships in 6 to 12 days

$

$3.12

0

337

Briggs & Stratton Part# 492167

Plug-Spark
(Superseded to 796112S)
Usually ships in 1 day

$

$4.13

0

Usually ships in 1 day

$

$9.16

0

358

Briggs & Stratton Part# 298989

Gasket Set
(Superseded to 590777)
Usually ships in 1 day

$

$20.23

0

363
Usually ships in 6 to 12 days

$

$19.35

0

383

Briggs & Stratton Part# 89838

Wrench-Plug, Spark
(Superseded to 89838S)
Usually ships in 6 to 12 days

$

$5.22

0

524

Briggs & Stratton Part# 271485

Seal-O-Ring
(Superseded to 691876)

Note: Included in Gasket Set-Part No. 298989.

Usually ships in 1 day

$

$4.35

0

625

Briggs & Stratton Part# 298775

Tube Intake
(Superseded to 693446)
Usually ships in 1 day

$

$11.28

0

729

Briggs & Stratton Part# 280470

Clip-Wire
(Superseded to 690586)
Usually ships in 6 to 12 days

$

$3.57

0

741

Briggs & Stratton Part# 261533

Gear-Timing
(Superseded to 691805)
Usually ships in 6 to 12 days

$

$12.18

0

851

Briggs & Stratton Part# 221798

Terminal-Cable
(Superseded to 493880S)
Usually ships in 1 day

$

$3.01

0

869

Briggs & Stratton Part# 211172

Seat-Ex. Valve
(Superseded to 691701)
Usually ships in 1 day

$

$6.92

0

870

Briggs & Stratton Part# 211291

Seat-Exhaust Valve
(Superseded to 691702)
Usually ships in 6 to 12 days

$

$6.92

0

871

Briggs & Stratton Part# 231348

Guide-Exhaust Valve
Usually ships in 6 to 12 days

$

$24.59

0

933

Briggs & Stratton Part# 223448

Pivot-Band Brake
(Superseded to 690428)
Usually ships in 1 day

$

$5.13

0

Usually ships same day

Not available

$

$
