20181 - Toro 18" Recycler II Walk-Behind Mower (SN: 039000001 - 039999999) (1993) HANDLE & THROTTLE CONTROL ASSEMBLY Parts Diagram

18" Recycler II Walk-Behind Mower

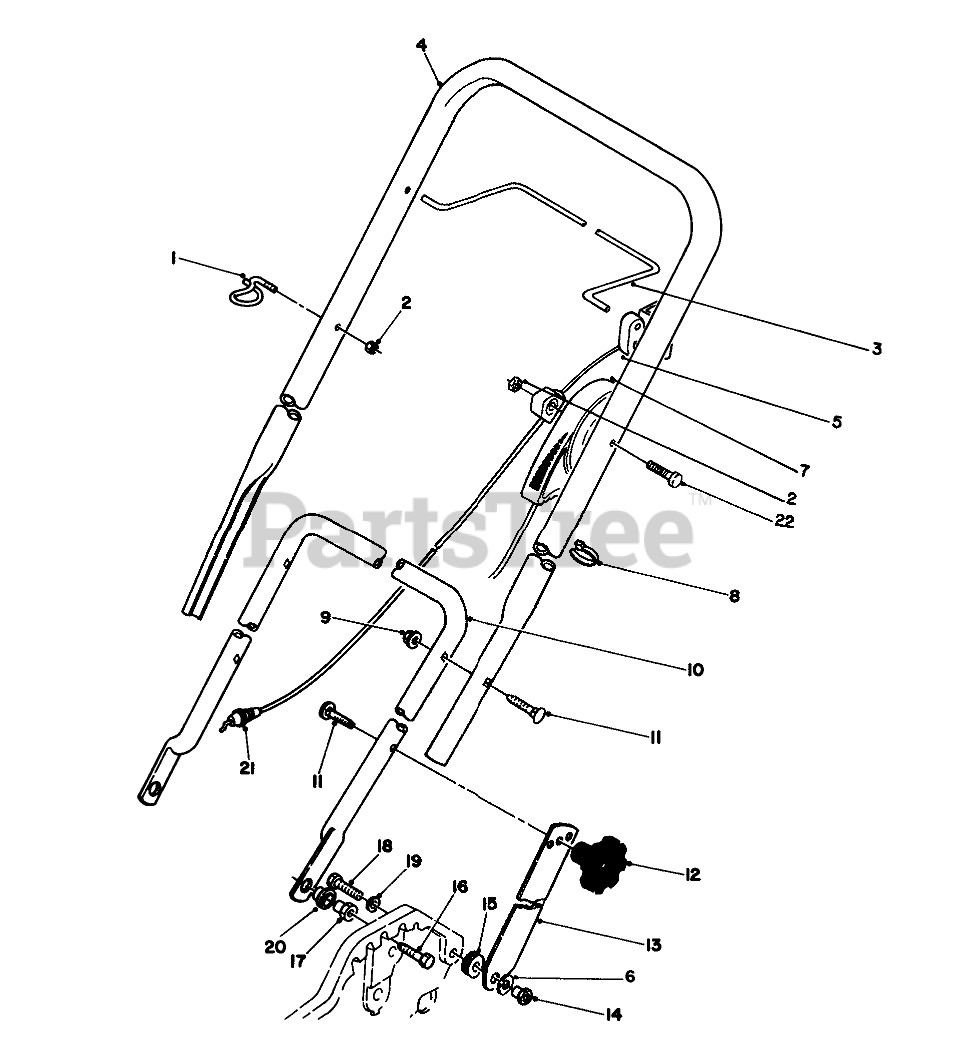

HANDLE & THROTTLE CONTROL ASSEMBLY Parts Diagram

  • Title
1

Toro Part# 86-9671

GUIDE-ROPE
Usually ships in 1 day

$

$4.24

0

2

Toro Part# 3296-73

NUT-LOCK, NI
Usually ships in 1 day

$

$3.21

0

3

Toro Part# 86-9740

Bar-Control
(Superseded to 86-9740-03)
Usually ships in 5 to 8 days

$

$17.42

0

4

Toro Part# 86-7950

UPPER HANDLE
Usually ships in 5 to 8 days

$

$90.60

0

5

Toro Part# 92-5412

STOP-PIVOT
(Superseded to 107-0757)
Usually ships in 1 day

$

$4.46

0

Usually ships in 1 day

$

$1.38

0

7

Toro Part# 92-3121

THROTTLE CABLE
Usually ships in 5 to 8 days

$

$44.03

0

8
Usually ships in 1 day

$

$0.77

0

9

Toro Part# 3296-74

NUT-LOCK NI
(Superseded to 3296-72)
Usually ships in 1 day

$

$1.45

0

10

Toro Part# 50-9921

LOWER HANDLE(CROM)
Usually ships same day

Not available

$

$

11

Toro Part# 92-4095

SCREW-HANDLE
Usually ships in 1 day

$

$5.32

0

Usually ships in 1 day

$

$13.41

0

13

Toro Part# 43-1372

HANDLE LATCH
Usually ships in 5 to 8 days

$

$15.70

0

14

Toro Part# 47-4990

POST-MOUNTING, LINKAGE
Usually ships in 5 to 8 days

$

$19.15

0

15
Usually ships in 5 to 8 days

$

$3.43

0

16

Toro Part# 322-5

SCREW-HH
Usually ships in 1 day

$

$0.47

0

17

Toro Part# 12-2080

HANDLE PIVOT NUT
Usually ships in 5 to 8 days

$

$18.21

0

18

Toro Part# 321-8

SCREW-HH
Usually ships in 1 day

$

$3.46

0

19

Toro Part# 3253-3

WASHER-LOCK
Usually ships in 1 day

$

$0.12

0

20

Toro Part# 86-7960

FLANGE BUSHING
Usually ships in 5 to 8 days

$

$7.13

0

21

Toro Part# 92-3128

BRAKE CABLE
Usually ships in 5 to 8 days

$

$44.52

0

22
Usually ships in 5 to 8 days

$

$7.13

0
