20181 - Toro 18" Recycler II Walk-Behind Mower (SN: 049000001 - 049999999) (1994) Engine Briggs Stratton Model 98902-0130-01 3 Parts Diagram

18" Recycler II Walk-Behind Mower

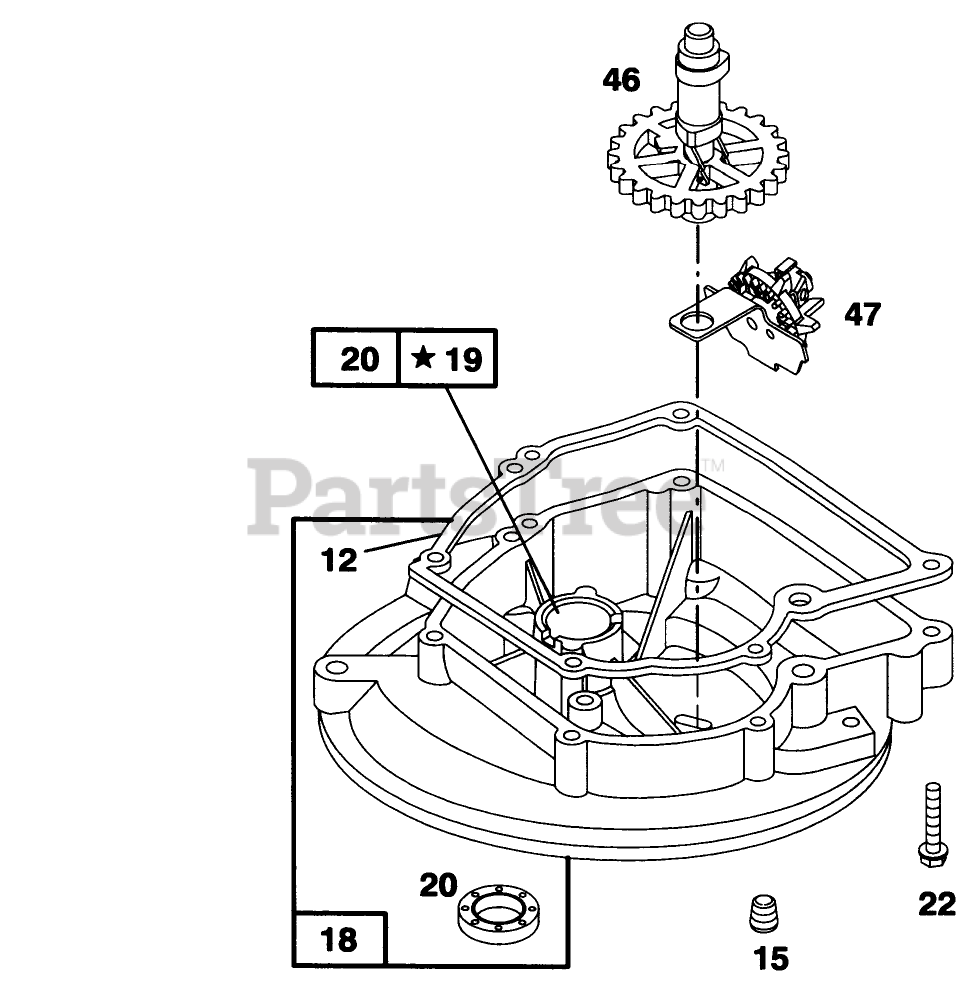

Engine Briggs Stratton Model 98902-0130-01 3 Parts Diagram

  • Title

12

Toro 270833

Gasket-Crankcase-.015" thick

Note: Included in Gasket Set-Part No. 298989.

$

$

Currently unavailable

Toro 270895

Gasket-Crankcase .005"

Note: Included in Gasket Set-Part No. 298989.

$

$

Currently unavailable

Toro 270896

Gasket-Crankcase .009"

Note: Included in Gasket Set-Part No. 298989.

$

$

Currently unavailable

15

Toro 94720

Plug-Pipe

$

$

Currently unavailable

18

Toro 395384

Sump-Oil

$

$

Currently unavailable

19

Toro 293709

Bushing-Oil Base

Note: REQUIRES SPECIAL TOOLS TO INSTALL. SEE REPAIR INSTRUCTION MANUAL.

$

$

Currently unavailable

20

Toro 391483

Seal-Oil

$

$

Currently unavailable

22

Toro 94607

Screw-Mtg. Sem

$

$

Currently unavailable

46

Toro 493747

Gear-Cam

$

$

Currently unavailable

47

Toro 491688

Oil Slinger Gear and Bracket

$

$

Currently unavailable
