20181 - Toro 18" Recycler II Walk-Behind Mower (SN: 059000001 - 059999999) (1995) Handle Throttle Control Assembly Parts Diagram

18" Recycler II Walk-Behind Mower

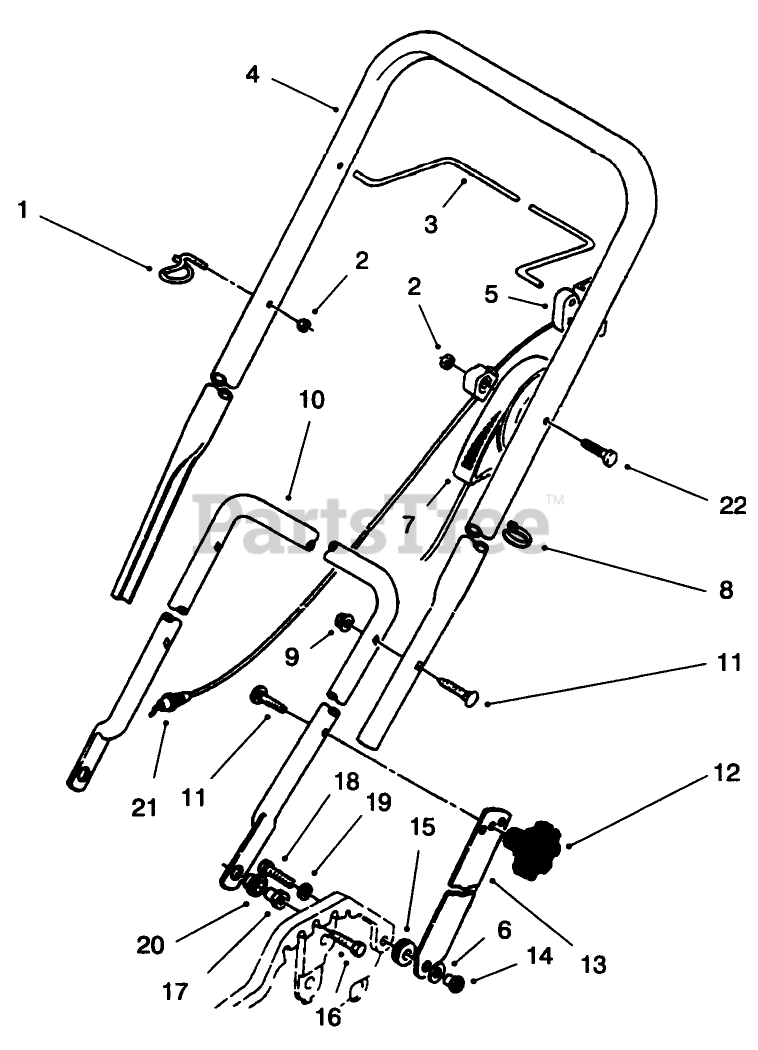

Handle Throttle Control Assembly Parts Diagram

  • Title

1

Toro 86-9671

GUIDE-ROPE

$4.99

$

In Stock, Qty 10

0

2

Toro 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, Qty 13

0

3

Toro 86-9740

See Supercession: 86-9740-03
(Superseded to 86-9740-03)

$

$

Not available

4

Toro 86-7950

UPPER HANDLE

$146.99

$

Usually ships in 3-6 days

0

5

Toro 92-5412

See Supercession: 107-0757
(Superseded to 107-0757)

$4.99

$

In Stock, Qty 20+

0

6

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 10

0

7

Toro 92-3121

THROTTLE CABLE

$71.99

$

Usually ships in 3-6 days

0

8

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 9

0

9

Toro 3296-74

See Supercession: 3296-72
(Superseded to 3296-72)

$2.99

$

In Stock, Qty 12

0

10

Toro 50-9921

DISCONTINUED

$

$

Not available

11

Toro 92-4095

SCREW-HANDLE

$6.99

$

In Stock, only 2 left!

0

12

Toro 19-4050

KNOB

$18.99

$

In Stock, only 2 left!

0

13

Toro 43-1372

HANDLE LATCH

$

$

Not available

14

Toro 47-4990

POST-MOUNTING, LINKAGE

$28.99

$

Usually ships in 3-6 days

0

15

Toro 237-136

GROMMET

$4.49

$

In Stock, only 3 left!

0

16

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 19

0

17

Toro 12-2080

HANDLE PIVOT NUT

$27.99

$

Usually ships in 3-6 days

0

18

Toro 321-8

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

19

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

20

Toro 86-7960

FLANGE BUSHING

$10.99

$

Usually ships in 3-6 days

0

21

Toro 92-3128

BRAKE CABLE

$69.99

$

Usually ships in 3-6 days

0

22

Toro 321-33

SCREW-HH

$9.49

$

In Stock, only 1 left!

0
