20181 WF - Toro 18" Recycler II Walk-Behind Mower (SN: 039000001 - 039999999) (1993) Engine Briggs Stratton Model 95902-3148-01 2 Parts Diagram

18" Recycler II Walk-Behind Mower

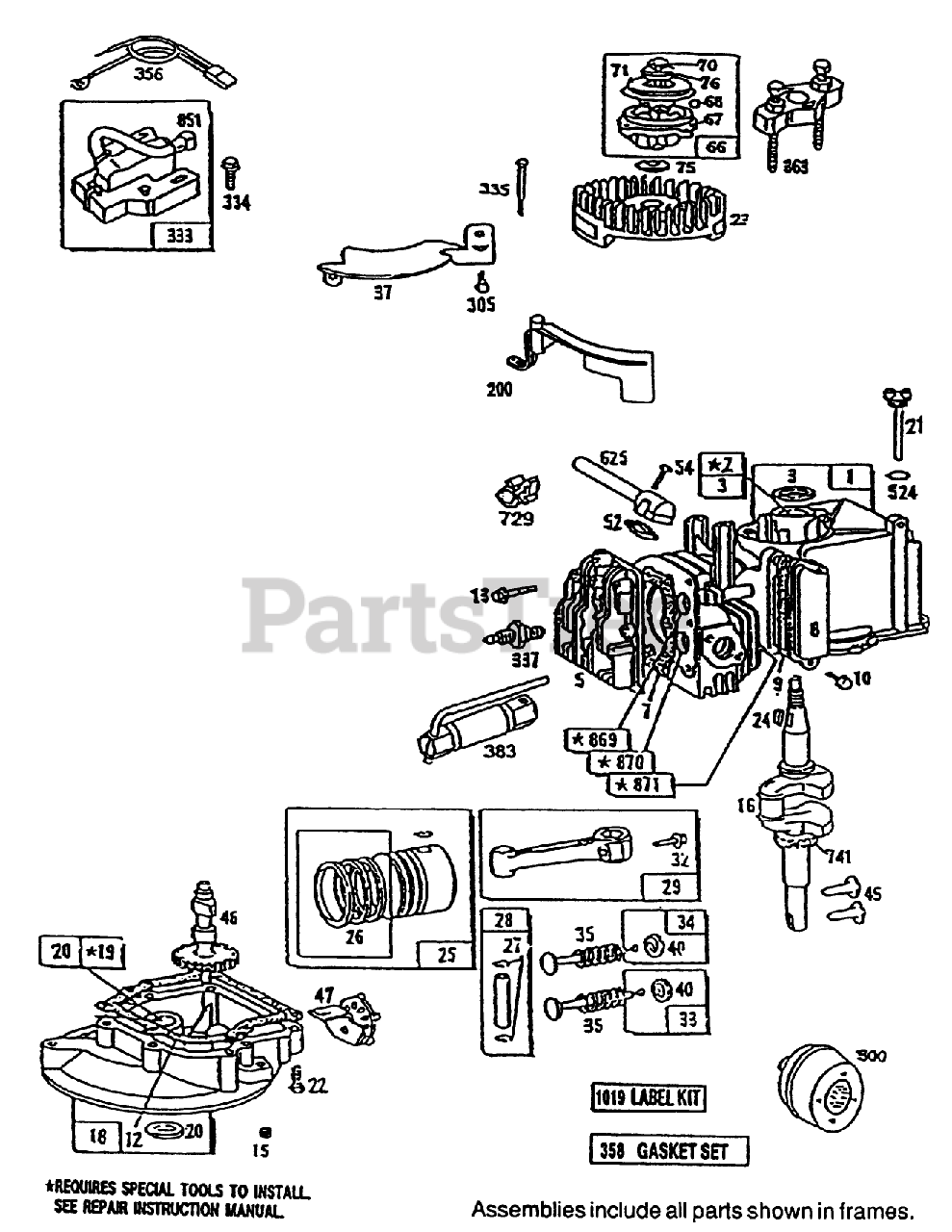

Engine Briggs Stratton Model 95902-3148-01 2 Parts Diagram

  • Title

1

Toro 399164

Cylinder Assembly

$

$

Currently unavailable

2

Toro 293708

Bushing

$

$

Currently unavailable

3

Toro 299819

Seal-Oil

Note: Included in Gasket Set-Part No. 298989.

$

$

Currently unavailable

5

Toro 211479

Head Cylinder

$

$

Currently unavailable

7

Toro 272170

Gasket-Cylinder Head

Note: Included in Gasket Set-Part No. 298989.

$

$

Currently unavailable

8

Toro 298383

Breather-Valve

$

$

Currently unavailable

9

Toro 270239

Gasket Valve Cover

Note: Included in Gasket Set-Part No. 298989.

$

$

Currently unavailable

10

Toro 93394

Screw

$

$

Currently unavailable

12

Toro 270833

Gasket-Crankcase-.015" thick

Note: Included in Gasket Set-Part No. 298989.

$

$

Currently unavailable

Toro 270895

Gasket-Crankcase .005"

Note: Included in Gasket Set-Part No. 298989.

$

$

Currently unavailable

Toro 270896

Gasket-Crankcase .009"

Note: Included in Gasket Set-Part No. 298989.

$

$

Currently unavailable

13

Toro 93111

Screw-Cylinder Hd.

$

$

Currently unavailable

15

Toro 94613

Plug-Pipe

$

$

Currently unavailable

16

Toro 495222

Crankshaft Note: To Replace Timing Gear Pin, Order Part No. 230978.

$

$

Currently unavailable

18

Toro 395384

Sump-Oil

$

$

Currently unavailable

19

Toro 293709

Bushing-Oil Base

$

$

Currently unavailable

20

Toro 391483

Seal-Oil

Note: Included in Gasket Set-Part No. 298989.

$

$

Currently unavailable

21

Toro 281081

Plug-Oil Filler

$

$

Currently unavailable

22

Toro 93032

Screw

$

$

Currently unavailable

23

Toro 395653

Flywheel-Magneto

$

$

Currently unavailable

24

Toro 222698

Key

$

$

Currently unavailable

25

Toro 298904

Piston Assy.-Std.

$

$

Currently unavailable

Toro 298905

Piston Assy.-010"O.S.

$

$

Currently unavailable

Toro 298906

Piston Assy.-020"O.S.

$

$

Currently unavailable

Toro 298907

Piston Assy. .030" O.S.

$

$

Currently unavailable

26

Toro 298982

Ring Set (Std.)

$

$

Currently unavailable

Toro 298983

Ring Set (.010" O.S.)

$

$

Currently unavailable

Toro 298984

Ring Set (.020" O.S.)

$

$

Currently unavailable

Toro 298985

Lock-Piston Pin

$

$

Currently unavailable

27

Toro 26026

Iock-Piston Pin

$

$

Currently unavailable

28

Toro 298909

Pin Ass-y-Piston

$

$

Currently unavailable

Toro 298908

Pin-Piston (.005 Undersize)

$

$

Currently unavailable

29

Toro 294201

Rod Assy., Conn.

$

$

Currently unavailable

32

Toro 94404

Screw-Connecting Rod

$

$

Currently unavailable

33

Toro 296676

Valve Exhaust

$

$

Currently unavailable

34

Toro 296677

Valve Intake

$

$

Currently unavailable

35

Toro 260552

Spring-Valve

$

$

Currently unavailable

37

Toro 223150

Guard-Flywheel

$

$

Currently unavailable

40

Toro 93312

Gear-Cam

$

$

Currently unavailable

45

Toro 230173

Tappet-Valve

$

$

Not available

46

Toro 491675

Gear-Cam

$

$

Currently unavailable

47

Toro 491688

Oil Slinger Gear and Bracket

$

$

Currently unavailable

52

Toro 270345

Gasket-Intake Elbow

Note: Included in Gasket Set-Part No. 298989.

$

$

Currently unavailable

54

Toro 93485

Screw Intake Elbow Mtg.

$

$

Currently unavailable

66

Toro 399671

Clutch-Starter

$

$

Currently unavailable

67

Toro 394897

Ball-Clutch

$

$

Currently unavailable

68

Toro 63770

Ball

$

$

Currently unavailable

70

Toro 298799

Ratchet

$

$

Currently unavailable

71

Toro 394506

Clutch

$

$

Currently unavailable

75

Toro 223047

Washer-Spring

$

$

Currently unavailable

76

Toro 68238

Washer

$

$

Currently unavailable

200

Toro 281024

Blade-Govemor

$

$

Currently unavailable

300

Toro 394569

Muffler-Exhaust

$

$

Currently unavailable

305

Toro 94153

Screw-Blo. Hsg. Mtg.

$

$

Currently unavailable

333

Toro 398593

Armature-Magneto

$

$

Currently unavailable

334

Toro 93381

Screw

$

$

Currently unavailable

335

Toro 93435

Screw-Armature Governor Blade

$

$

Currently unavailable

337

Toro 492167

Plug-Spark

$

$

Currently unavailable

356

Toro 398808

Wire Stop

$

$

Currently unavailable

358

Toro 298989

Gasket Set

$

$

Currently unavailable

363

Toro 19069

Puller-Flywheel

$

$

Currently unavailable

383

Toro 89838

Wrench-Plug, Spark

$

$

Currently unavailable

524

Toro 271485

Seal-O-Ring

Note: Included in Gasket Set-Part No. 298989.

$

$

Currently unavailable

625

Toro 298775

Tube Intake

$

$

Currently unavailable

729

Toro 280470

Clip-Wire

$

$

Currently unavailable

741

Toro 261533

Gear-Timing

$

$

Currently unavailable

851

Toro 221798

Terminal-Cable

$

$

Currently unavailable

869

Toro 211172

Seat-Ex. Valve

$

$

Currently unavailable

870

Toro 211291

Seat-Exhaust Valve

$

$

Currently unavailable

871

Toro 231348

Guide-Exhaust Valve
(Superseded to 706543)

$36.99

$

Usually ships in 3-6 days

0

1019

Toro 491082

Label Kit

$

$

Currently unavailable
