20183 B - Toro 46cm Recycler Walk-Behind Mower (SN: 049000001 - 049999999) (1994) Engine Assembly Parts Diagram

46cm Recycler Walk-Behind Mower

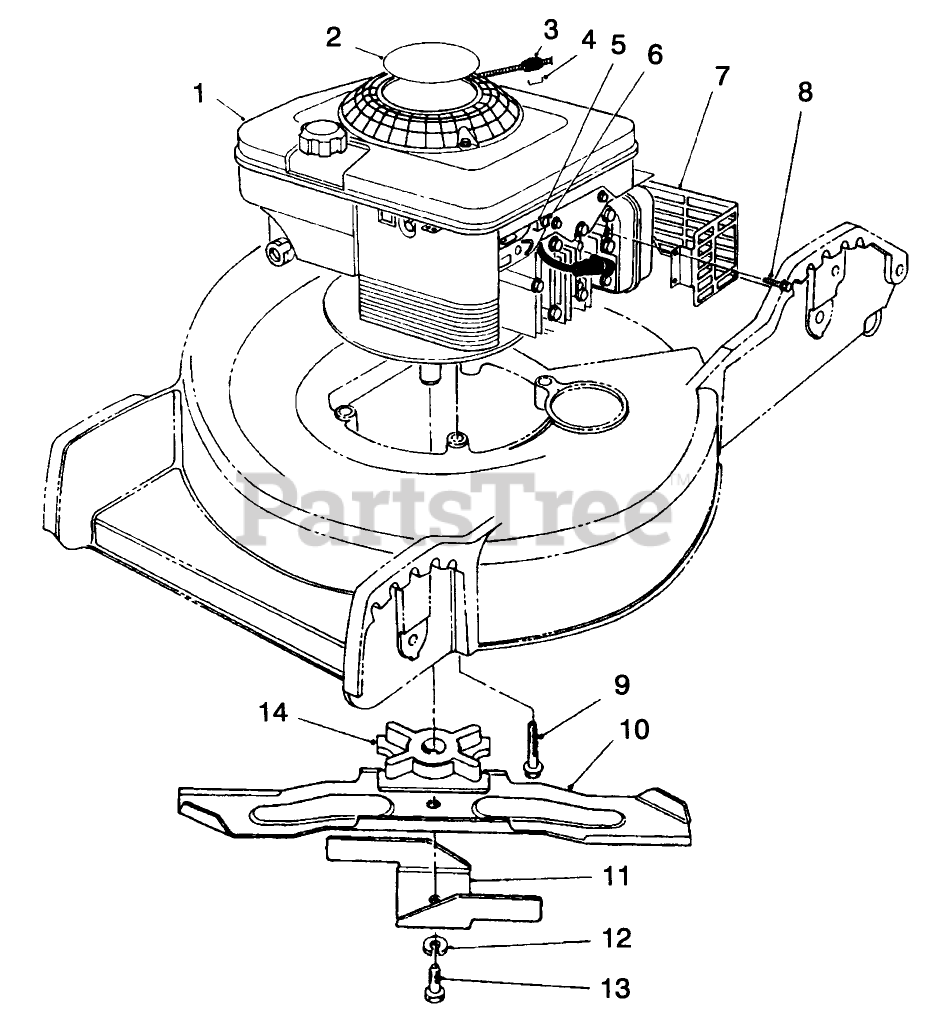

Engine Assembly Parts Diagram

  • Title

1

Engine

$

$

Not available

2

Toro 92-7851

DISCONTINUED

$

$

Not available

3

Toro 2210-316

STOP-ROPE

$8.49

$

Usually ships in 3-6 days

0

4

Staple

Note: NOT SHOWN

$

$

Not available

5

Toro 2210-249

CLAMP-CASING

$

$

Not available

6

Toro 86-7990

CLAMP SCREW F/W ENGINE

$3.99

$

Usually ships in 3-6 days

0

7

Toro 92-7852

SHIELD - MUFFLER

$

$

Not available

8

Toro 32144-73

See Supercession: 104-2065
(Superseded to 104-2065)

$0.99

$

In Stock, Qty 20+

0

9

Toro 32144-106

DISCONTINUED

$

$

Not available

10

Toro 86-5210

See Supercession: 86-5210-03
(Superseded to 86-5210-03)

$93.99

$

Usually ships in 3-6 days

0

11

Toro 92-3075

18 ACCELERATOR *

$

$

Not available

12

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 2 left!

0

13

Toro 26-0671

SCREW-HH

$9.49

$

In Stock, Qty 10

0

14

Toro 49-7900

BLADE RETAINER

$80.99

$

In Stock, only 2 left!

0
