20183 B - Toro 46cm Recycler Walk-Behind Mower (SN: 049000001 - 049999999) (1994) HANDLE & THROTTLE CONTROL ASSEMBLY Parts Diagram

46cm Recycler Walk-Behind Mower

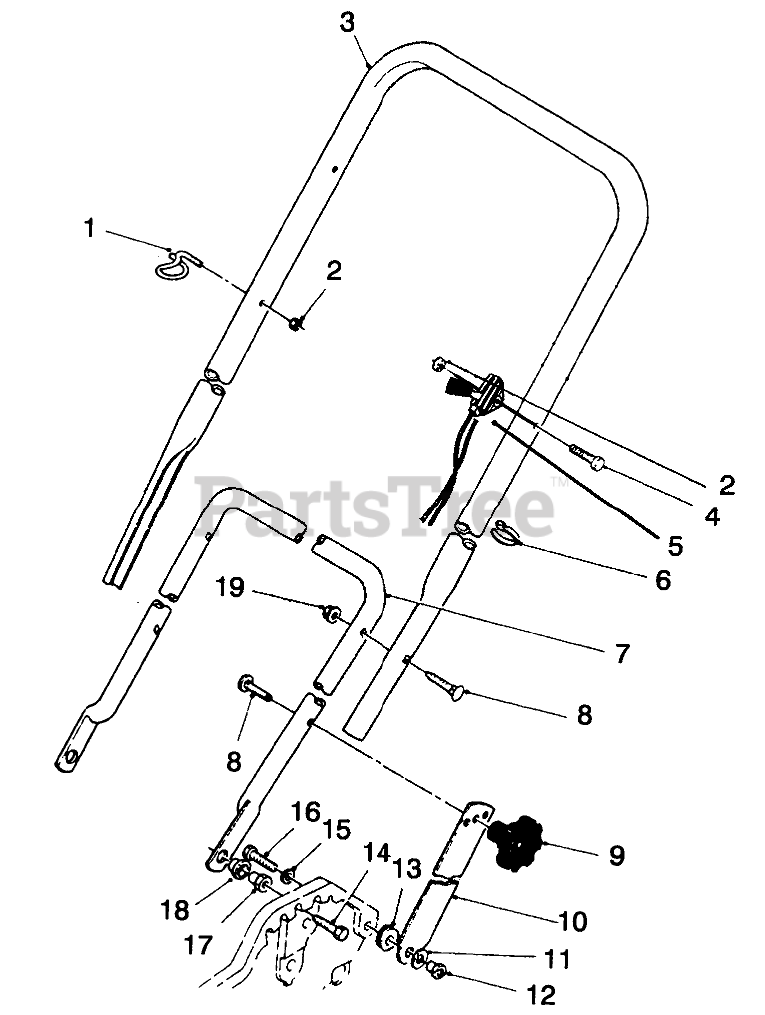

HANDLE & THROTTLE CONTROL ASSEMBLY Parts Diagram

  • Title

1

Toro 86-9670

ROPE GUIDE

$

$

Not available

2

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

3

Toro 71-9022

HANDLE (DIPPED)

$

$

Not available

4

Toro 46-6430

SCREW-HANDLE

$11.99

$

Usually ships in 3-6 days

0

5

Toro 92-7853

THROTTLE CONTROL

$99.99

$

Usually ships in 3-6 days

0

6

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 10

0

7

Toro 50-9921

LOWER HANDLE(CROM)

$

$

Not available

8

Toro 17-9424

SCREW
(Superseded to 6-6330)

$

$

Not available

9

Toro 19-4050

KNOB

$17.99

$

In Stock, Qty 9

0

10

Toro 43-1372

HANDLE LATCH

$

$

Not available

11

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

12

Toro 47-4990

POST-MOUNTING, LINKAGE

$23.99

$

Usually ships in 3-6 days

0

13

Toro 237-136

GROMMET

$4.49

$

In Stock, only 2 left!

0

14

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

15

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

16

Toro 321-8

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

17

Toro 12-2080

HANDLE PIVOT NUT

$22.99

$

Usually ships in 3-6 days

0

18

Toro 86-7960

FLANGE BUSHING

$8.99

$

Usually ships in 3-6 days

0

19

Toro 3296-58

NUT-LOCK, NI

$2.99

$

In Stock, only 2 left!

0
