20192 - Toro Super Bagger Walk-Behind Mower (SN: 290000001 - 290999999) (2009) Control Assembly Honda GCV160L AS3A Parts Diagram

Super Bagger Walk-Behind Mower

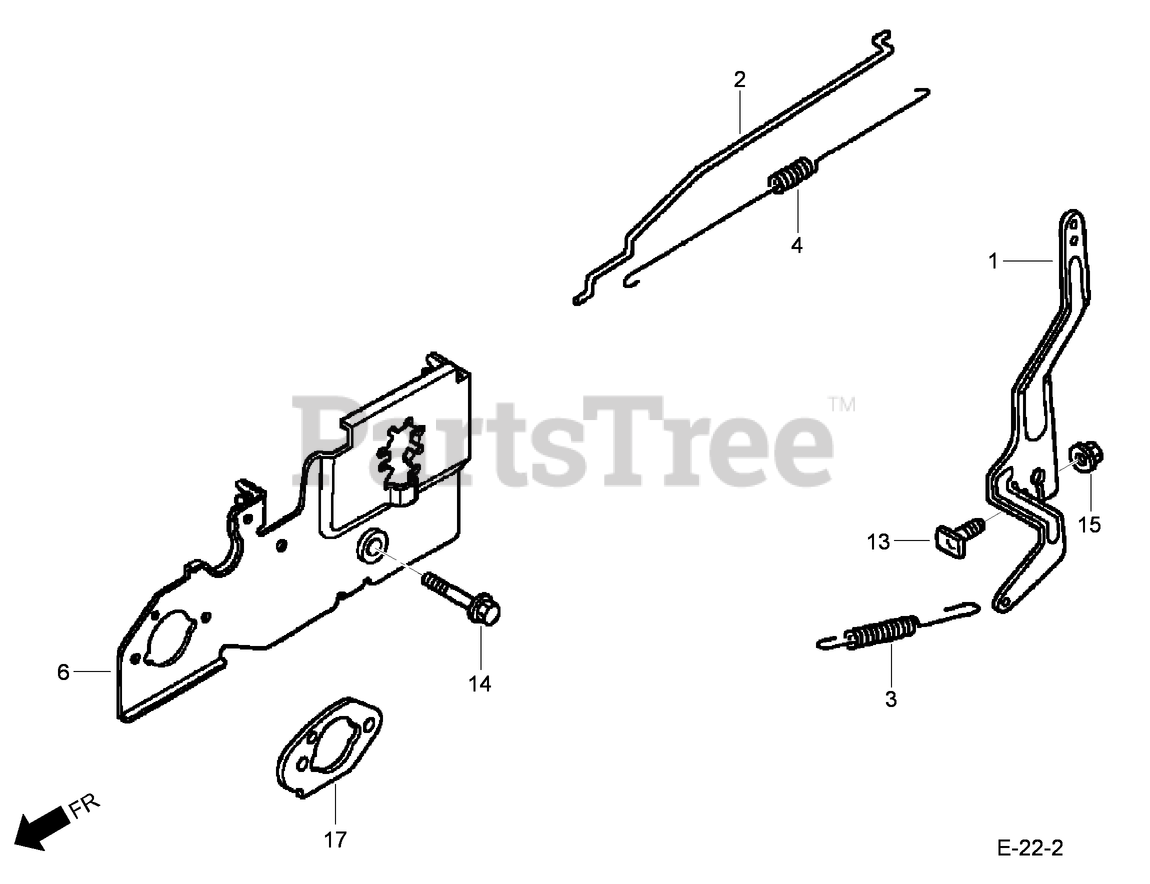

Control Assembly Honda GCV160L AS3A Parts Diagram

  • Title
1

Toro 16551-ZM0-010

ARM-GOVERNOR

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

2

Toro 16555-Z0L-800

ROD-GOVERNOR (engine serial numbers up to 6349022)

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

2

Toro 16555-Z0L-801

ROD-GOVERNOR (engine serial numbers starting at 6349023)

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

3

Toro 16561-Z0L-000

SPRING-GOVERNOR

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

4

Toro 16562-ZM0-000

SPRING-RETURN, THROTTLE

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

6

Toro 16580-Z0L-810

BASE-CONTROL (engine serial numbers up to 6901760)

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

13

Toro 90015-ZE5-010

BOLT-ARM, GOVERNOR

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

14

Toro 90016-ZE8-000

BOLT-FLANGE (6X45) (C T200)

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

15

Toro 94050-06000

NUT-FLANGE (6 mm)

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

17

Toro 16221-Z0L-900

SPACER-CARBURETOR (engine serial numbers starting at 6901761)

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable
